➤ Used T-Rex Servo-0609 For Sale | gindumac.com

Show in original language

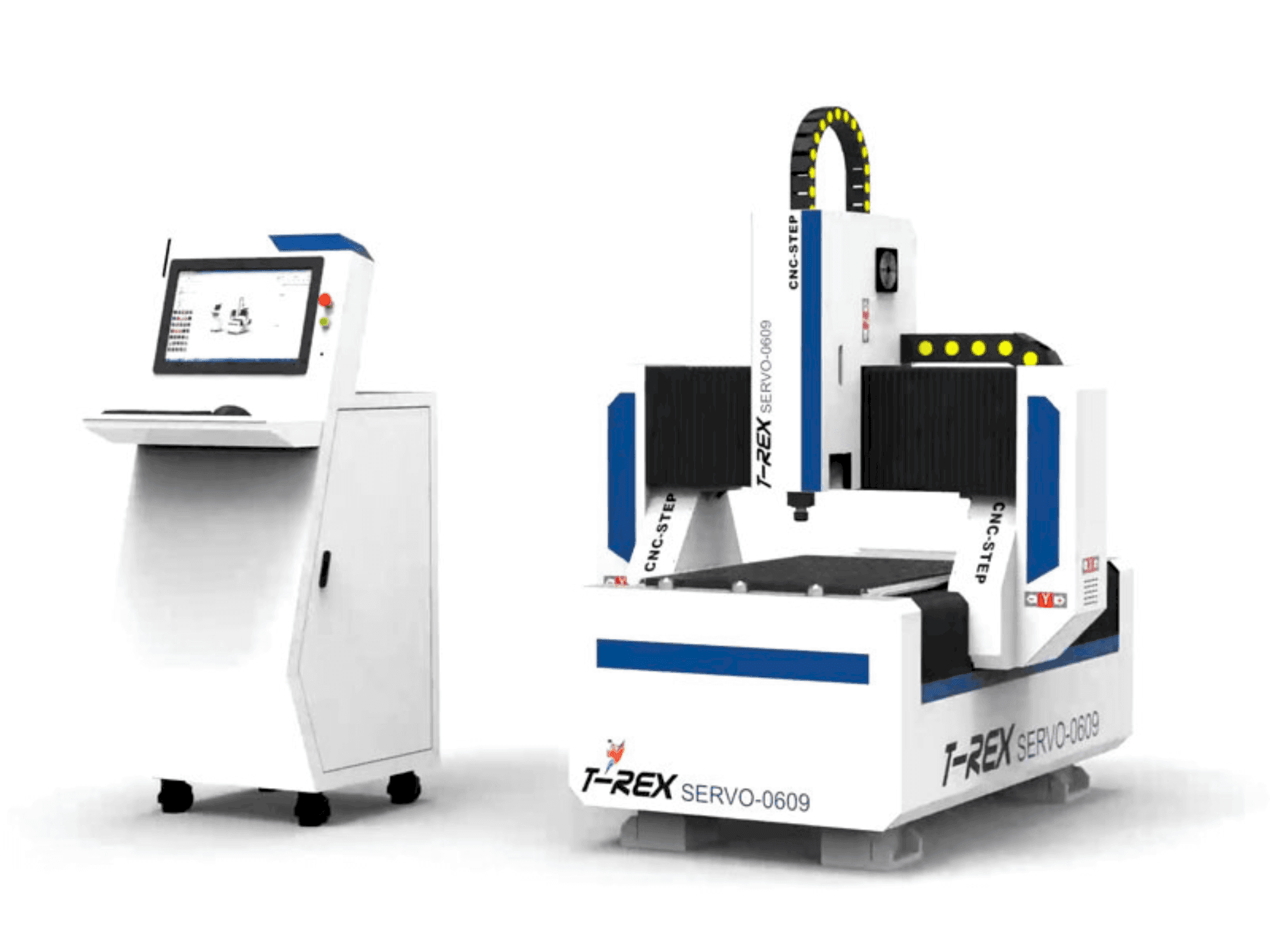

This 3-axis T-Rex Servo-0609 was manufactured in 2023. It features a CNC portal milling machine with a KinetiC-NC control system and PC software. The travel dimensions are 900 mm (X) × 600 mm (Y) × 200 mm (Z). It includes a Hiteco 4.0 kW ATC spindle, air-cooled, with a 24,000 rpm and an automatic 4-fold tool changing station. Consider the opportunity to buy this T-Rex Servo-0609 gantry milling machine. Contact us for more information about this machine.

Overview

brand: T-Rex
year: 2023
MODEL: Servo-0609
production hours: 0
application type: Milling
Location: Germany
machine type: Gantry Milling Machine

Technical Information - T-Rex Servo-0609

General Data

Machine weight: 545 kg

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 4.0 kW
Number of axis: 3

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 200 mm

Additional Equipment

- Accessories: Electronic handwheel, Gigabit network switch (5 ports)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drive: servomotors with automatic lubrication
- - Clamping system: vacuum plate with t-slot rails
- - Tool change: 4-fold changing station (iso30), automatic (atc)
- - Tool holder: 6× sk30/er32 with nuts and tightening bolts
- - Single collet er32 (3. 175 mm, 0. 0006” concentricity)
- - Vacuum generation: side channel blower 2. 2 kw (520 mbar, 155 m³/h)
- - Transportation: box dimensions: 175 × 180 × 200 cm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
