Soraluce - Soramill SL 4000DE-MIL-SOR-1995-00001

Name: Soraluce Soramill SL 4000
Brand: Soraluce
SKU: DE-MIL-SOR-1995-00001
Price: 42000 EUR
Availability: InStock

42,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Milling machine SORALUCE Soramill SL 4000 - 1995 - for sale | gindumac.com

Show in original language

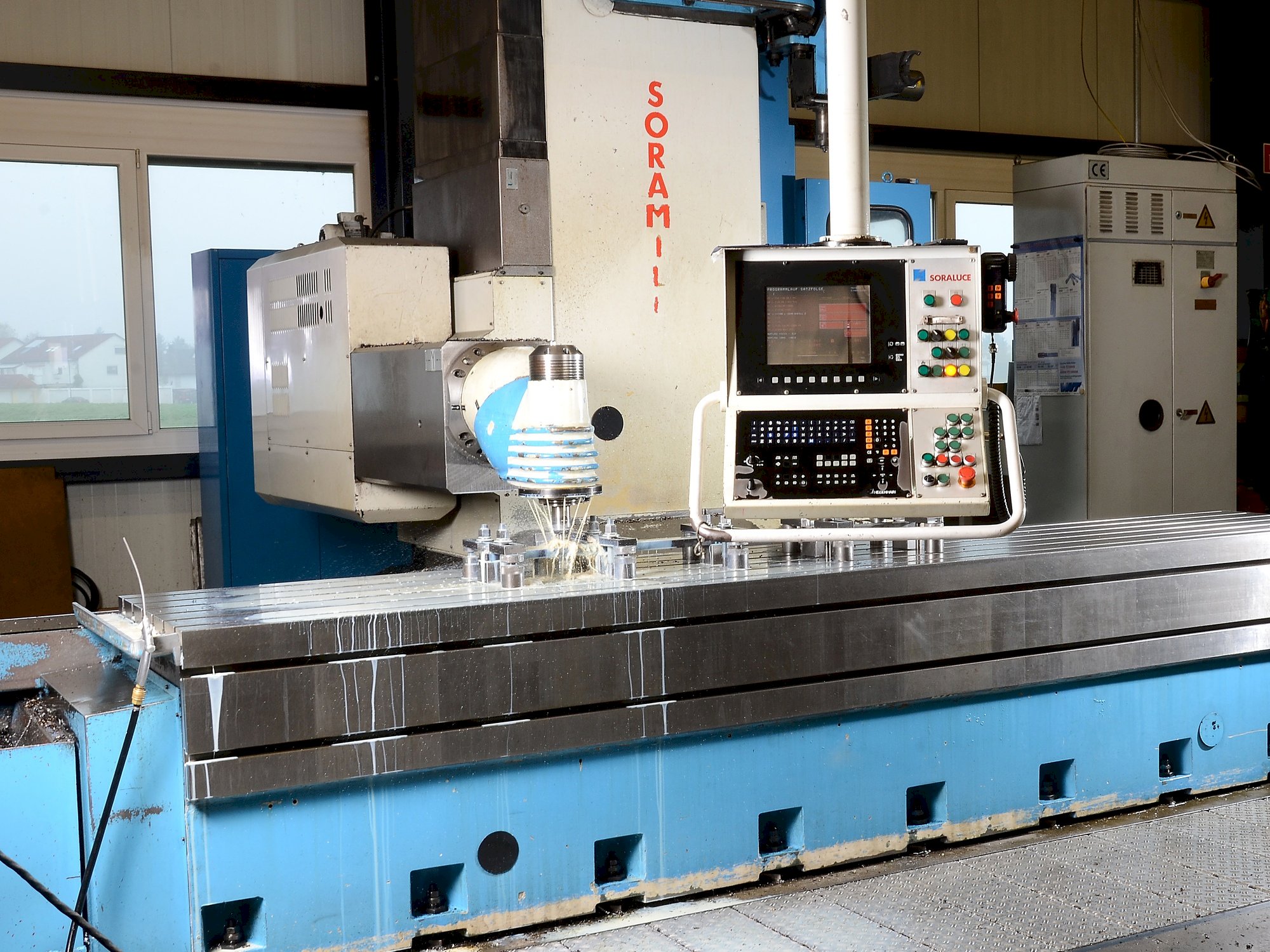

This 3-Axis CNC milling machine, the SORALUCE Soramill SL 4000, was manufactured in 1995. Featuring a CNC-415-Heidenhain control type and ISO 40/M16 spindle holder, it offers a spacious work area with traverse paths of x 2500 mm, z 900 mm, and y 1600 mm. With 30 tool stations and a weight of approximately 14.5 tonnes, it ensures robust performance for milling and drilling tasks. Consider the opportunity to buy this SORALUCE Soramill SL 4000 milling machine. For further information, contact us.

Overview

brand: Soraluce
year: 1995
MODEL: Soramill SL 4000
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Soraluce Soramill SL 4000

General Data

Measurements width: 5290 MM
Measurements depth: 3450 MM
Measurements height: 3500 MM
Machine weight: 14500 KG

Control Unit

Brand: HEIDENHAIN
Model: 415
Interface: CNC

Main drive

Spindle speed range: 20-2000 1/MIN

Movement

X-AXIS Movement: 2500 MM
X-AXIS Rapid traverse: 37 Nm
Y-AXIS Movement: 900 MM
Y-AXIS Rapid traverse: 18 Nm
Z-AXIS Movement: 1600 MM
Z-AXIS Rapid traverse: 18 Nm

Table

Outer length: 4000 MM

Tools

Slots in storage: 30

Media

Cooling pressure: 50
Ar supply: 300

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnc milling and drilling centre for rigid panels
- - Spindle mount in iso 50
- - With fixed table and traveling column, separate control cabinet
- - Automatically switching milling head including coolant device & filter system
- - Lowest position of spindle nose from (head horizontal) to table: 50 mm
- - Height from floor to table: 870 mm
- - The bed size is 4,000 mm x 800 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
