➤ Used Star SB-20R type G For Sale | gindumac.com

Show in original language

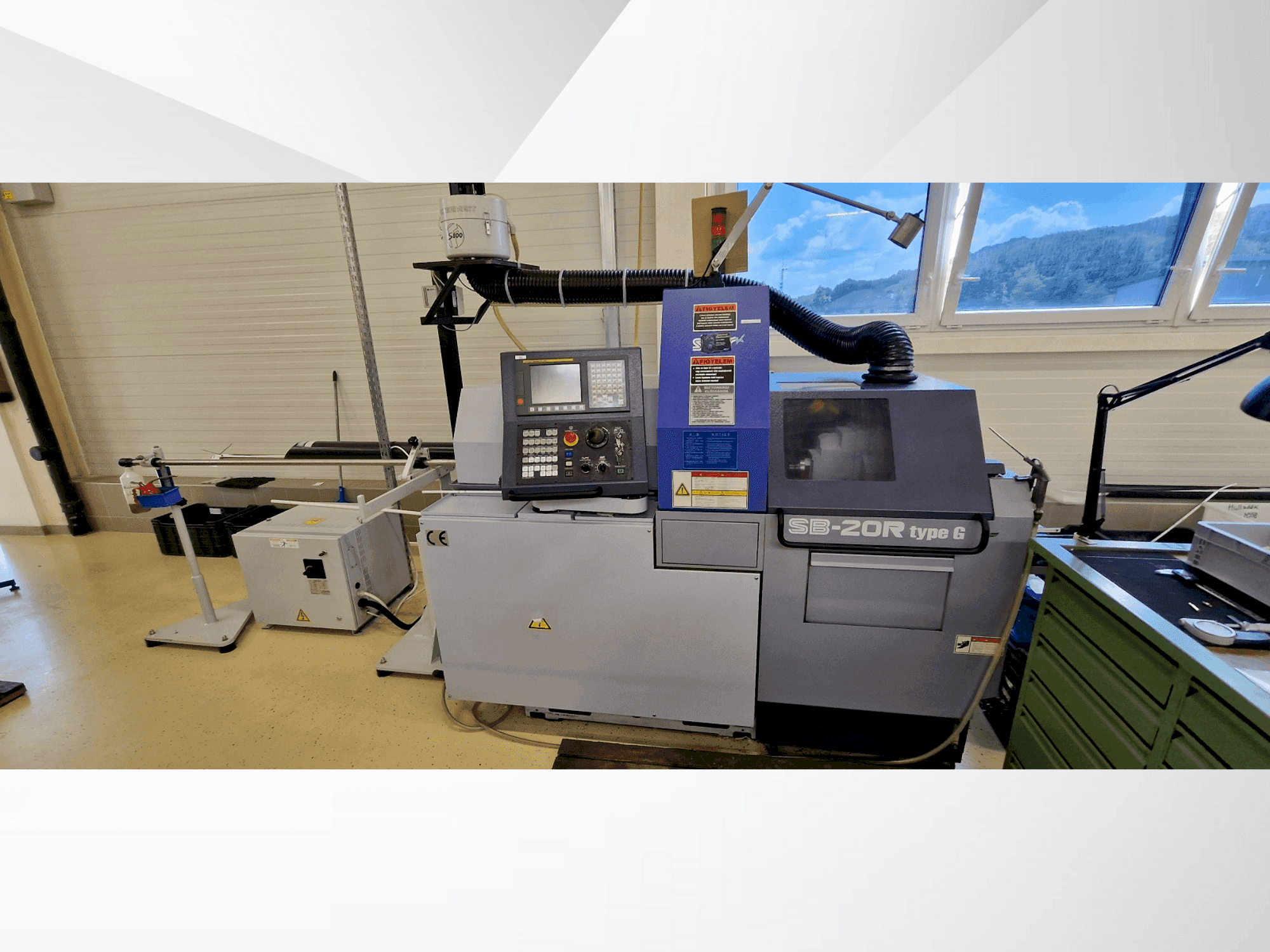

This 7-axis Star SB-20R type G swiss type turning machine was manufactured in 2016. It features a maximum machining diameter of Ø20 mm and a headstock stroke up to 205 mm. Equipped with a high-speed spindle capable of 10,000 min⁻¹ and rapid feed rates up to 35,000 mm/min for efficient machining. Ideal for complex, precision tasks, the Star SB-20R type G machine we have for sale is a robust addition to any production line. Contact us for further details.

Overview

brand: Star
year: 2016
MODEL: SB-20R type G
application type: Turning
Location: Hungary
machine type: Swiss Type Turning Machine
availability: Immeditately

Technical Information - Star SB-20R type G

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 7

Movement

X-AXIS Movement: 600mm
Y-AXIS Movement: 200mm
Z-AXIS Movement: 410mm
V-Axis Movement: 200mm
U-Axis Movement: 200mm

Additional Equipment

- Tool Holders and Sleeves: Configurable with various series (OM151, OM152, OM156, OM157)
- Power-driven Attachments: Max speed 10,000 min⁻¹ (high speed configurations), 6,000 min⁻¹ (standard configurations)
- Tool selection: Servo motor
- Maximum Drilling Capability: Stationary tool (Ø12 mm) Power-driven tool (Up to Ø7 mm)
- Maximum Tapping Capability: Stationary tool (M10 x P1.5) Power-driven tool (Up to M6 x P1.0)
- Maximum Milling Capability: Up to Ø10 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle motor power: 2. 2 kw (cont. )/3. 7 kw (10 min/25% ed)
- - C1, c2 axis: 198,000°/min
- - Max workpiece diameter: 20 mm (option for 23 mm)
- - Max headstock stroke: 205 mm (guide bush version), 50 mm (non-guide bush version)
- - Comprehensive machining capabilities including turning, drilling, tapping, and milling
Qualitative Machine Benefits:
- - Advanced configurations for power-driven tools allow for increased flexibility in machining operations
- - Robust control system ensures high precision and efficiency

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
