SPINNER TC400 52MC

Photo Gallery

SPINNER - TC400 52MCDE-TUR-SPI-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

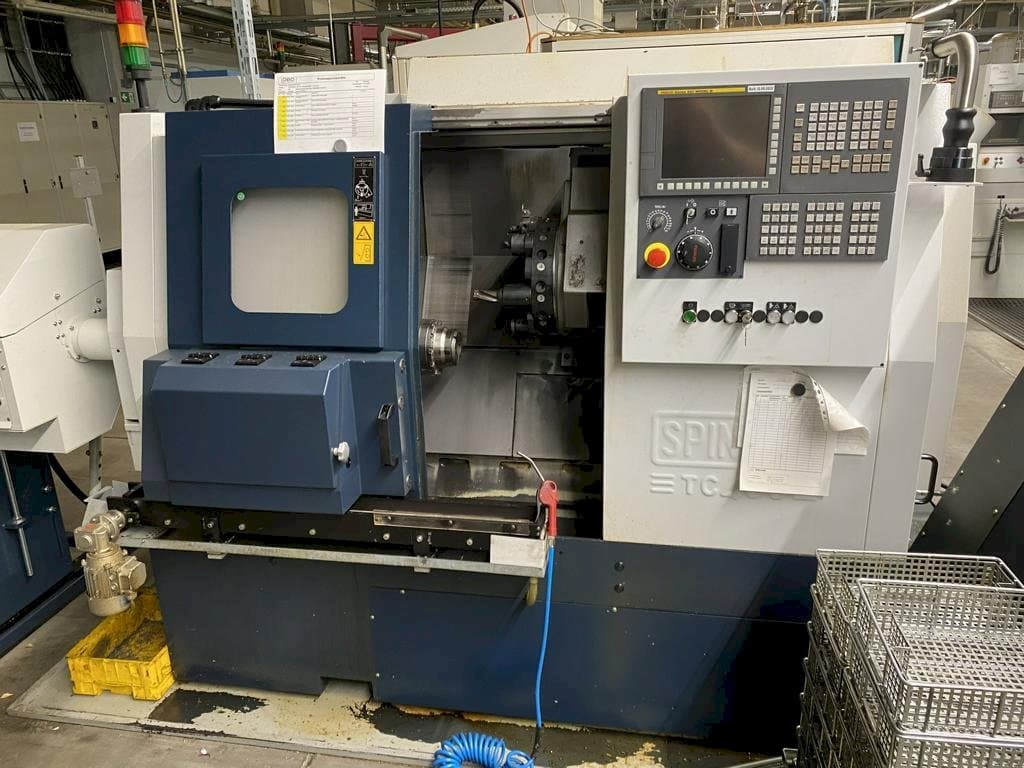

SPINNER TC400 52MC lathe

Show in original language

This SPINNER TC400 52MC lathe was made in the year 2021 in Germany. It is equipped with a Fanuc Series 32i-Model B control unit and has 3 axis. The machine has a spindle speed of 5000 rpm and includes a SERVO bar feeder.

Overview

brand: SPINNER
year: 2021
MODEL: TC400 52MC
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - SPINNER TC400 52MC

Control Unit

Model: Series 32i-MODEL B
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Number of axis: 3

Tools

Number of stations: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar feeder servo-load 80-1200-v2 2
- - With traverse x=200 mm, z=510 mm in 60-degree inclined bed design with hardened and ground sliding guides
- - 1 chuck, 8 rigid tool holders single, retrofit finished wire removal belt
- - Switching turret - with driven tool stations
- - All tool stations can be driven for turret discs with a pitch circle or on an inner pitch circle
- - Only the station in working position is driven, executed as servo turret
- - Swiveling speed can be controlled as cnc axis with feed potentiometer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
