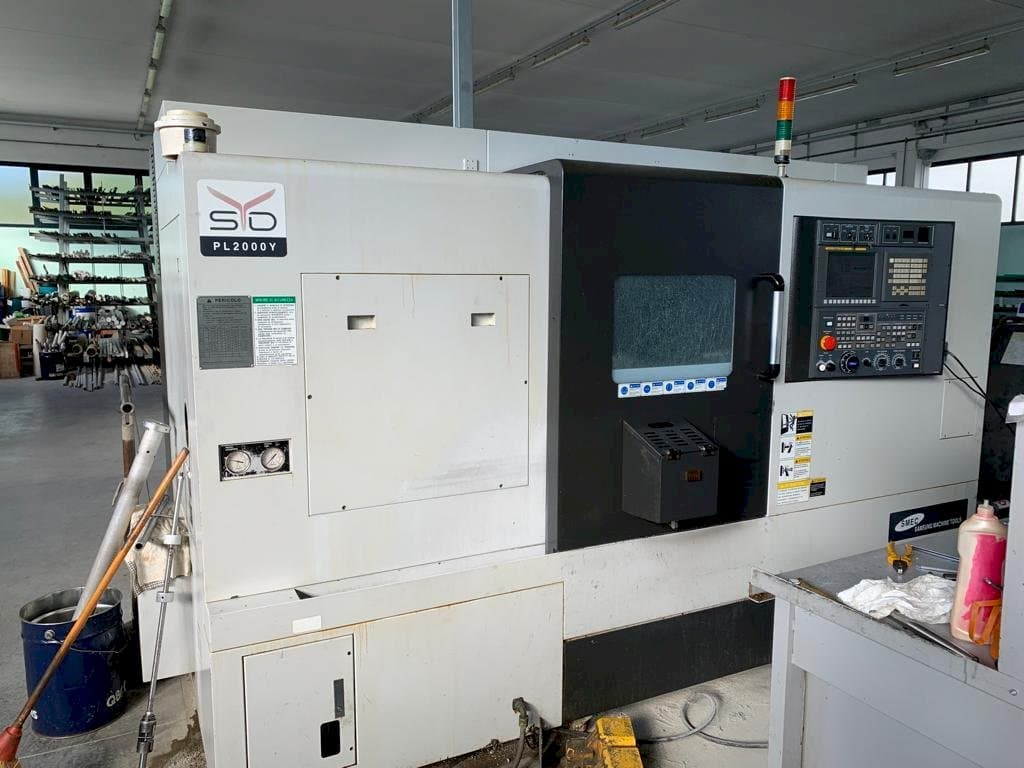

SMEC PL 2000Y Lathe

Show in original language

This SMEC PL 2000Y Lathe was made in 2014 in Korea and has 14309 production hours, of which 4261 are spindle hours. It is equipped with a Fanuc Series Oi-TD control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: SMEC
year: 2014
MODEL: PL 2000Y
production hours: 14309
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - SMEC PL 2000Y

General Data

Measurements width: 3658 mm
Measurements depth: 1930 mm
Measurements height: 2085 mm
Machine weight: 5800 kg

Control Unit

Model: Series Oi-TD
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 235 mm
Y-AXIS Movement: 100 mm
Z-AXIS Movement: 580 mm
B-AXIS Movement: 580 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 360 mm
- - Max. Turning length: 520 mm
- - Max. Bar diameter: 65 mm
- - Swing over bed: 650 mm
- - Swing over cross slide: 540 mm
- - Max. Milling diameter: 374 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
