OKUMA MACTURN 250W Lathe

Show in original language

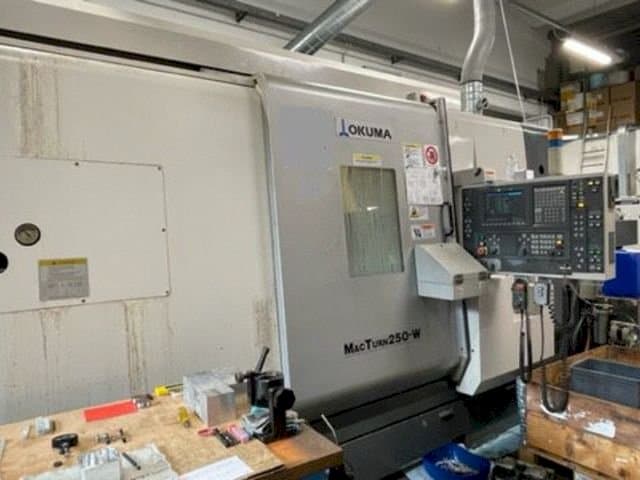

This OKUMA MACTURN 250W Multitasking Lathe was made in 2002. It is equipped with a OSP-U100L manuf control unit and has 9 axis. The machine has a spindle speed of 45-6000 rpm.

Overview

brand: Okuma
year: 2002
MODEL: MACTURN 250W
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold

Technical Information - Okuma MACTURN 250W

General Data

Measurements width: 2550 mm
Measurements depth: 3900 mm
Measurements height: 3000 mm
Machine weight: 15500 kg

Main drive

Spindle speed range: 45-6000 1/MIN
Number of axis: 9

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length: 1170 mm
- - Spindle bore: 51 mm
- - Motor for live tools vac 7,7/5,3/3,7 kw (5/20 kont)
- - Airblow on spindle and couterspindle
- - Hydraulic units
- - 3 refrigeration units (each for each spindle )
- - Shields for chips and cooling water
- - Blocking of door
- - Work light
- - Lower turret 12 pcs. Vdi-40 static
Qualitative Machine Benefits:
- - B1 monitor for lubrication monitoring
- - Chip conveyor ,touch setter
- - Kitagawa hollow cylinder air blow off jaws ,waterblow inside for whashing
- - Single stations h1 turret hsk 63
- - M-spindle standard 6. 000 full controlled b-axis
- - 0,001 standard 1 degree 44 atc, 44 pcs. In
- - Atc chain, 1 pcs. In dok. Atc 44 stations
- - Automatic switching to reserve tools, controlled by following: 1. Number of parts 2. Cutting time 3. Tool wear from mop-s or automated tool measurement point 1,2,3 can be combined
- - Auto cut off power by m02 series or alarms.
- - Max. Turning diameter: 650 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
