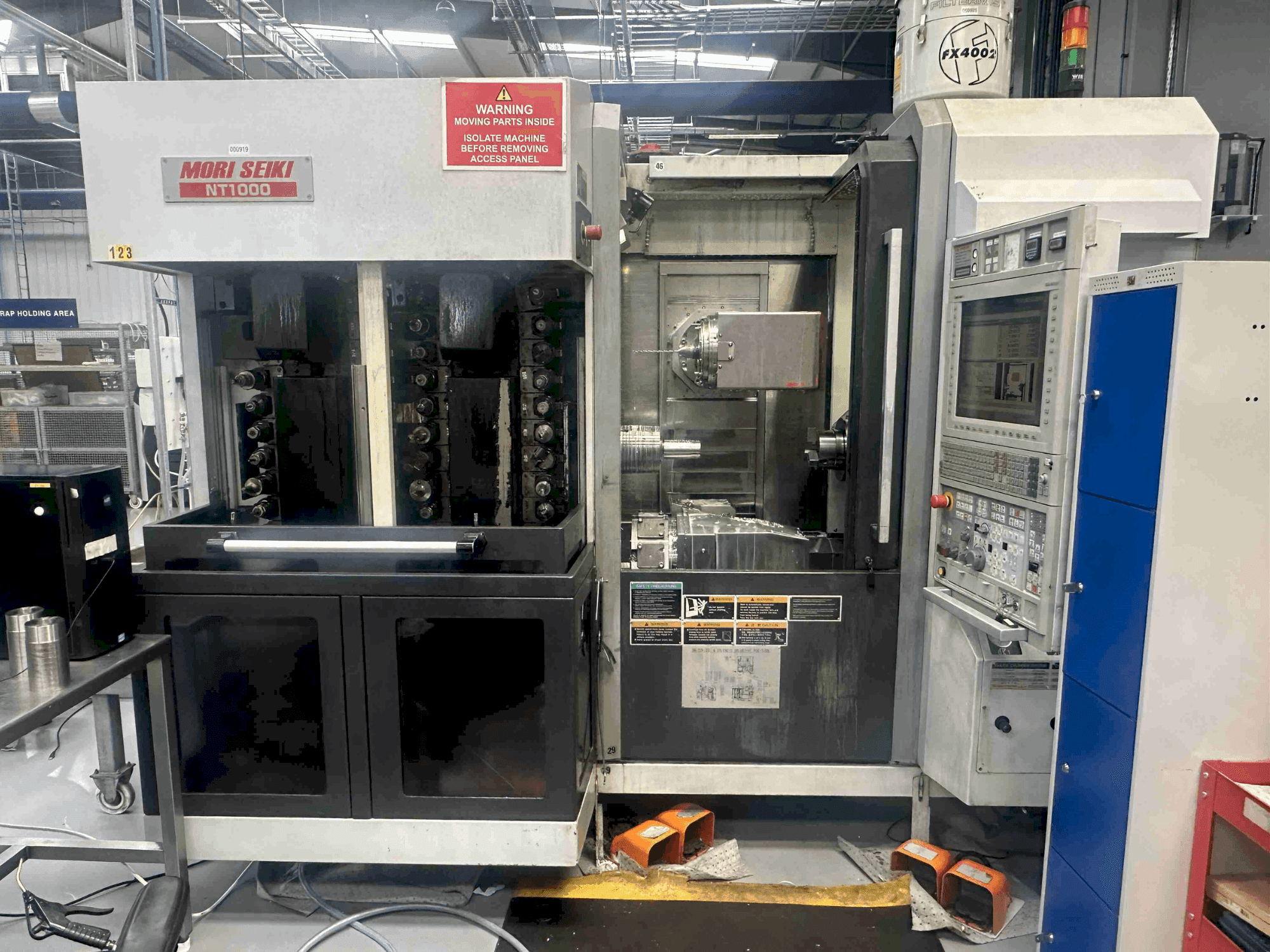

Front view of MORI SEIKI NT1000SZM machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NT1000SZM

Photo Gallery

MORI SEIKI - NT1000SZMIE-TUR-MOR-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NT1000SZM Lathe For Sale | gindumac.com

Show in original language

This Mill Turn Centre was manufactured in 2010. A robust Mori Seiki NT1000SZM, it features MSX-711IV control, a high-speed tool spindle at 20,000rpm, and a 76 tool ATC. It supports a max turning diameter of 370mm and length of 400mm. Additional features include a 70 Bar high-pressure coolant system and a Knoll compact filter unit. Ideal for precision machining, the Mori Seiki NT1000SZM machine we have for sale. Contact us for further details regarding this Mill Turn Centre.

Overview

brand: MORI SEIKI
year: 2010
MODEL: NT1000SZM
production hours: 16400
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
control unit brand: MITSUBISHI

Technical Information - MORI SEIKI NT1000SZM

General Data

Measurements width: 2895 mm
Measurements depth: 3810 mm
Measurements height: 2670 mm
Machine weight: 8500kg

Control Unit

Model: MSX-711IV
CNC language customizable: Yes
Brand: MITSUBISHI

Main drive

Number of spindles: 3
Spindle speed range: 20000 rpm 1/MIN
Spindle motor power: 11/7.5kW

Movement

X-AXIS Movement: 380 mm
Y-AXIS Movement: 210 mm
Z-AXIS Movement: 480 mm
B-AXIS Movement: +/- 120°
C-AXIS Movement: 360°

Workpiece

Workpiece drm: 370 mm
Workpiece z: 400 mm

Turret

Number of turrets: 1

Tools

Max weight: 5kg
Max tool diameter: 130mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Kitagawa 5" Chuck // Kitagawa 8" Hollow Chuck
Spindle 1 Through-Hole Spindle 73mm
76 Tool ATC
Full selection of Tool Holders as seen in videos
Swarf Conveyor // Workpiece Conveyor for Bar Feeder
70 Bar High Pressure Coolant System
Air Blow for Chuck (Spindle 1) // Air Blow for Tool Tip (Tool Spindle)
In Machine Tool Presetter for Tool Spindle and Turret 2
Bar Feed Interface
Tool Counter // Workpiece Counter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
