MORI SEIKI - NL3000Y/700GB-TUR-MOR-2008-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

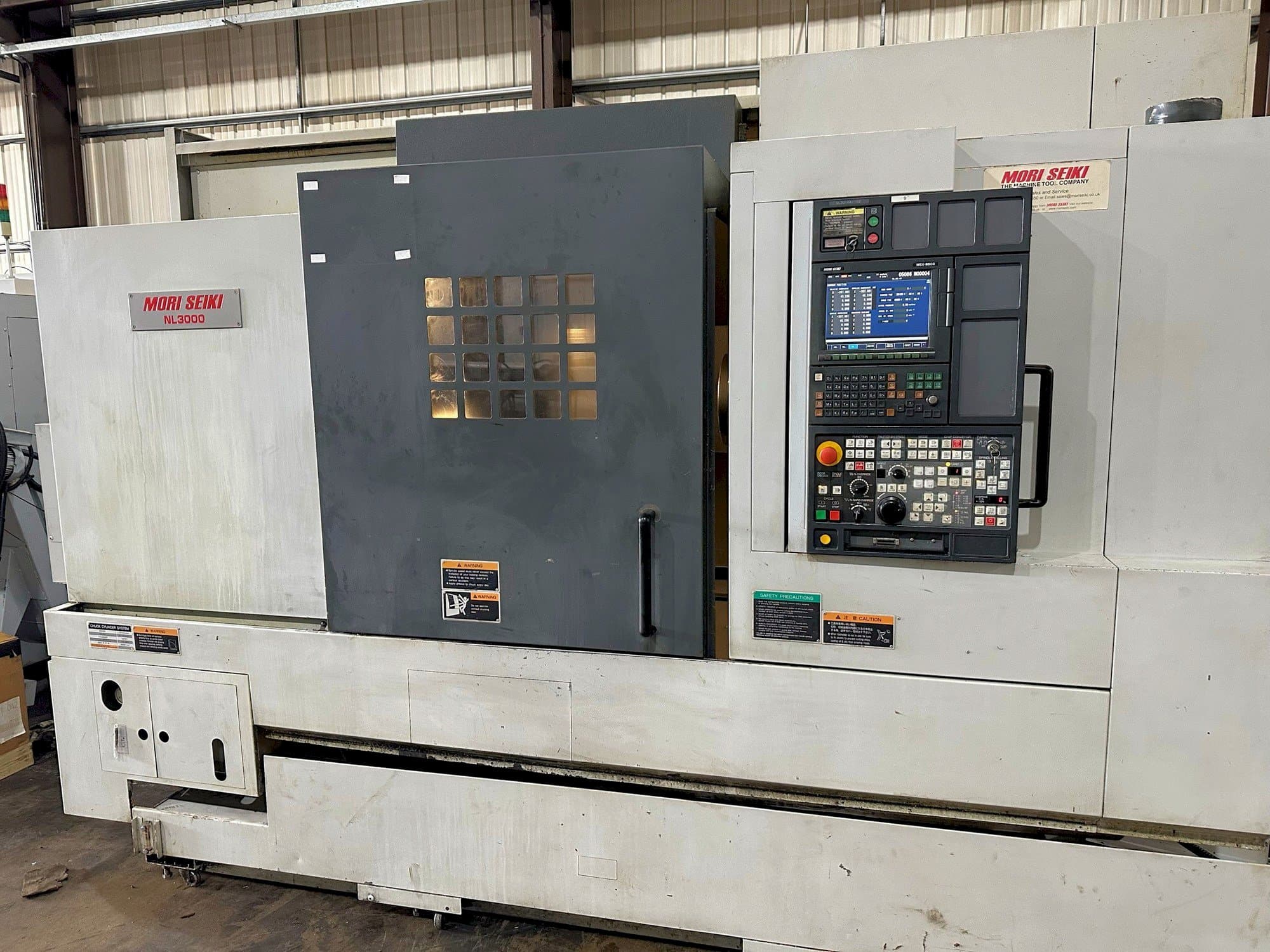

Mori Seiki NL3000Y/700 Lathe

Show in original language

This Mori Seiki NL3000Y/700 Lathe was manufactured in the year 2008 in Japan and has 62041 production hours, of which 25419 are cutting hours. It is equipped with a Mori MSX-850III control unit and has 4 axis. The machine has a spindle speed of 3000 rpm.

Overview

brand: MORI SEIKI
year: 2008
MODEL: NL3000Y/700
production hours: 62041
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold

Technical Information - MORI SEIKI NL3000Y/700

General Data

Measurements width: 3418 mm
Measurements depth: 2089 mm
Measurements height: 2270 mm
Machine weight: 6500 kg

Main drive

Number of spindles: 1
Spindle speed range: 3000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 280 mm
Y-AXIS Movement: +/-60 mm
Z-AXIS Movement: 820 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Power consumption: 49 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 995 mm
- - Swing over the cross-slide :825 mm
- - Maximum cutting length: 713mm
- - Bar capacity: 90mm
- - Maximum cutting diameter: 430mm
- - Spindle motor power 22/18. 5kwkw
- - Milling motor power: 5. 5/3. 7kw, speed 6000rpm
- - Rapid feedrates: xz: 30m/minute
- - Tailstock body travel: 734mm, quill diameter: 110mm
- - Tool setter, coolant, interlocked guards, low volt light, 3 jaw chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
