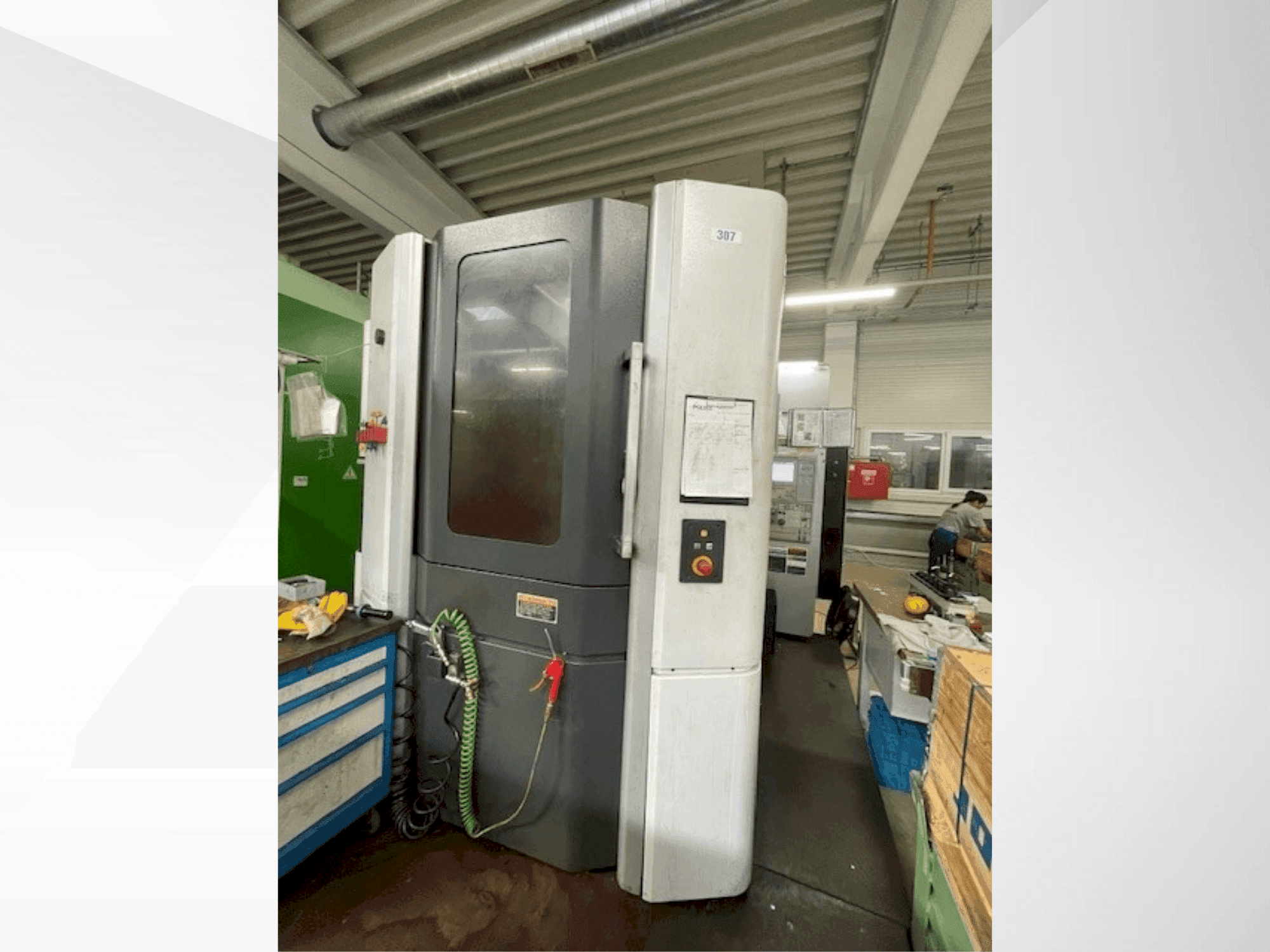

MORI SEIKI - NHX 5000HU-MIL-MOR-2012-00001

Additional Equipment

• - Tool Magazine Capacity: 40 pockets (wheel type) / Tool Diameter (Occupied Neighboring Pockets): 70 mm / Tool Diameter (Free Neighboring Pockets): 170 mm
• - Maximum Tool Length: 450 mm / Maximum Tool Weight: 12 kg / Chip-to-Chip Time: min. 3.3 sec / max. 8.2 sec
• - Pallet Change Time: 9.5 sec
• - Footprint (Including Chip Conveyors): approx. 12.5 m²

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Torque: 110 / 55 nm
  • - Rapid traverse: 60000 mm/min
  • - Acceleration: 5. 3 / 5. 3 / 5. 3 m/s²
  • - Positioning accuracy: 2. 5 µm
  • - Distance from spindle center to pallet: 80 – 810 mm / distance from spindle nose to pallet center: 70 – 950 mm
  • - 360° rotary table (indexing time): 1. 6 / 1. 38 sec / pallet size: 500 × 500 mm / max. Pallet load: 500 kg
