Miyano ABX-64THY

Miyano - ABX-64THYIL-TUR-MIY-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MIYANO ABX-64THY Lathe

Show in original language

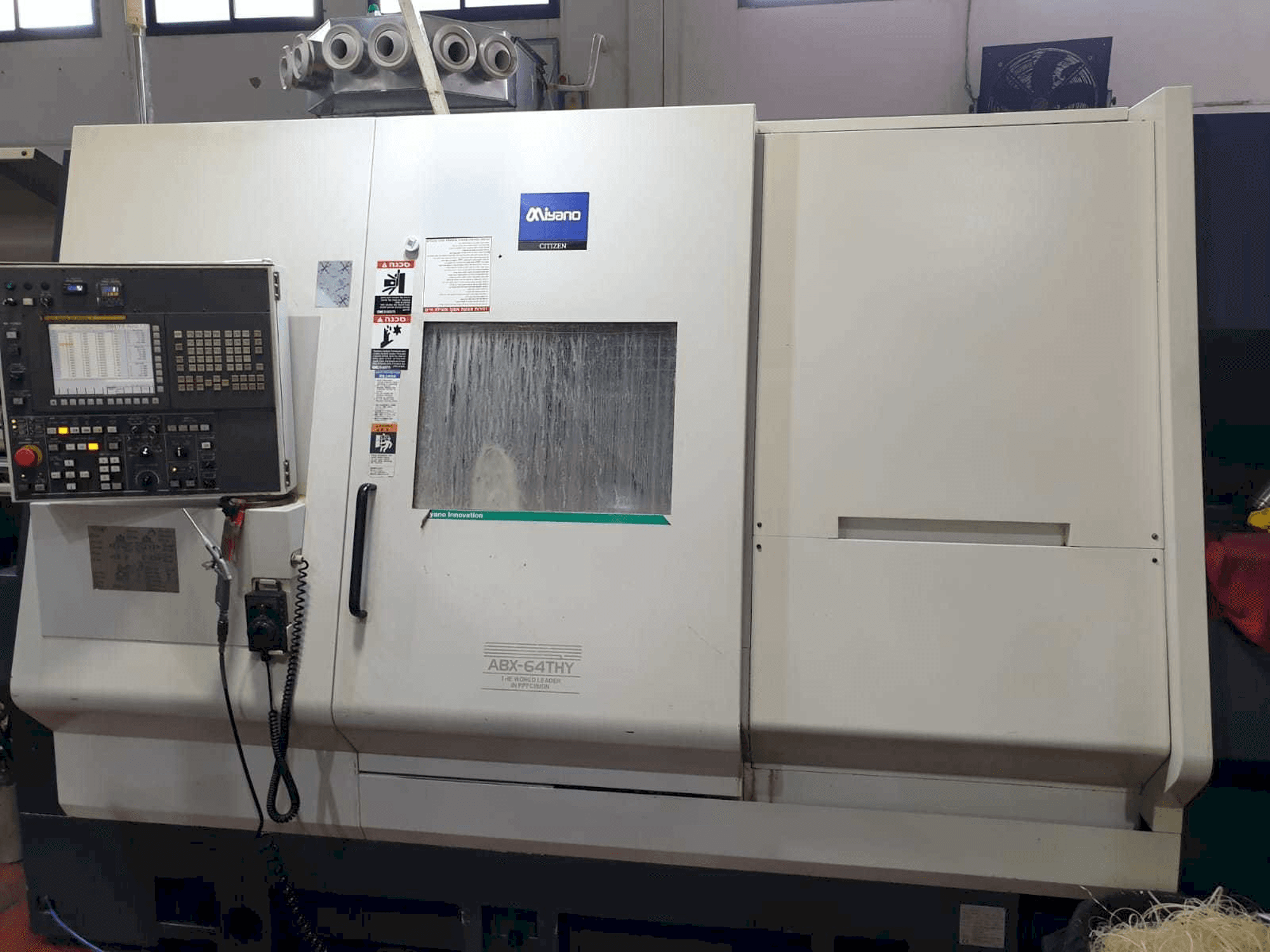

This MIYANO ABX-64THY Lathe Machine was manufactured in 2011. This machine has a total of 47753 power on hours, of which 13434 are cutting hours. It operates through a Fanuc 31i-TA control unit. It has a spindle speed up to 5000 rpm. The machine includes 3 HD turret.

Overview

brand: Miyano
year: 2011
MODEL: ABX-64THY
production hours: 47753
application type: Turning
Location: Israel
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Miyano ABX-64THY

General Data

Machine weight: 11340 kg

Control Unit

Model: 31i-TA
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN

Turret

Number of turrets: 3

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hd1-upper turret: x1-axis 190mm, z1-axis 257mm, y1-axis +/- 40mm
- - Hd2-lower turret: x2-axis 190mm, z2-axis 500mm
- - Hd3-upper turret: x3-axis 190mm, y3-axis +/- 40mm, z3-axis 650mm
- - Collet chuck for left: spindle (collets not includ) din 185e
- - Collet chuck for right spindle (collets not includ) din 177e
- - Bar feed interface
- - Max. Power chuck size (sub spindle) 152 mm
- - Max. Power chuck size (main spindle) 152 mm
- - Standard turning length 118mm
- - Max. Bar diameter (main spindle/sub spindle) 64mm/51mm
Qualitative Machine Benefits:
- - Hydraulic rotary hollow cylinder
- - Left spindle: 15/11kw cont. /30 min
- - Right spindle: 7. 5/5. 5kw cont. /30 min
- - Upper turret hd1/hd3 & lower turret hd2 12
- - Main & sub spindle positioning: "c" axis
- - Tool stations: upper hd1/upper hd3 12 and lower hd1 12
- - Hd1-upper turret
- - Revolving tool drive unit for upper & lower turrets (hd1, hd2 & hd3)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
