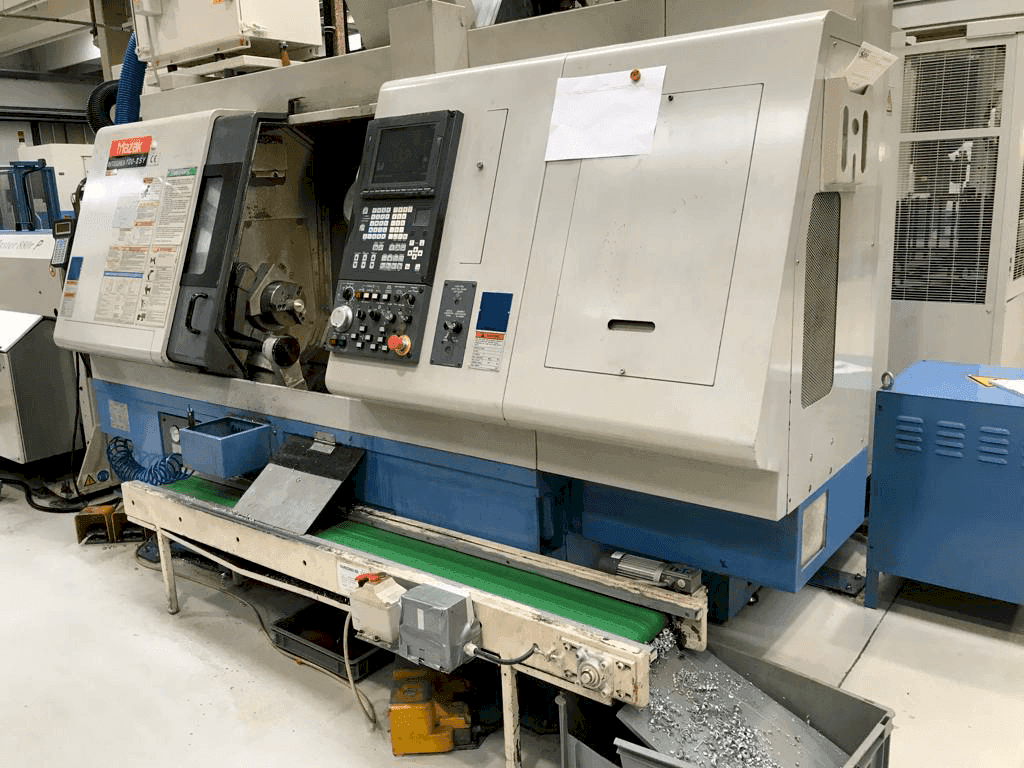

Front view of Mazak Integrex 100 II SY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 100 II SY

Photo Gallery

Mazak - Integrex 100 II SYIT-TUR-MAZ-2003-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 100 II SY lathe

Show in original language

This Mazak Integrex 100 II SY lathe was made in the year 2003 in Japan. It is equipped with a Mazatrol 640 M control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: Mazak
year: 2003
MODEL: Integrex 100 II SY
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 100 II SY

General Data

Measurements width: 3100 mm
Measurements depth: 2080 mm
Measurements height: 2320 mm
Machine weight: 4900 kg

Control Unit

Model: 640 M
Brand: MAZATROL

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 7.5-5.5 KW

Movement

X-AXIS Movement: 360 mm
X-AXIS Rapid traverse: 30 m/MIN
Y-AXIS Movement: 120 mm
Y-AXIS Rapid traverse: 26 M/MIN
Z-AXIS Movement: 785 mm
Z-AXIS Rapid traverse: 33 M/MIN
C-AXIS Movement: 0.001° MM

Media

Power consumption: 9 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Self centering right - left
- - Rear exhaust chip evacuator
- - Preparation from bar
- - Workpiece unloading arm
- - Conveyor belt for pieces
- - Atc 40 places
- - Capto 6 milling head attachment
- - Dia. Max turnable 290 mm
- - Turning length 755 mm
- - Spindle attachment mazak capto c6
Qualitative Machine Benefits:
- - Spindle interior 61 mm
- - Counter spindle 6,000 rpm
- - Counter spindle resolution 0. 001°
- - Milling spindle rpm 15,000 rpm, milling spindle power 22 kw
- - B-axis positioning 0. 001°, b-axis continuous

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
