➤ Used Matec 30 HV For Sale | gindumac.com

Show in original language

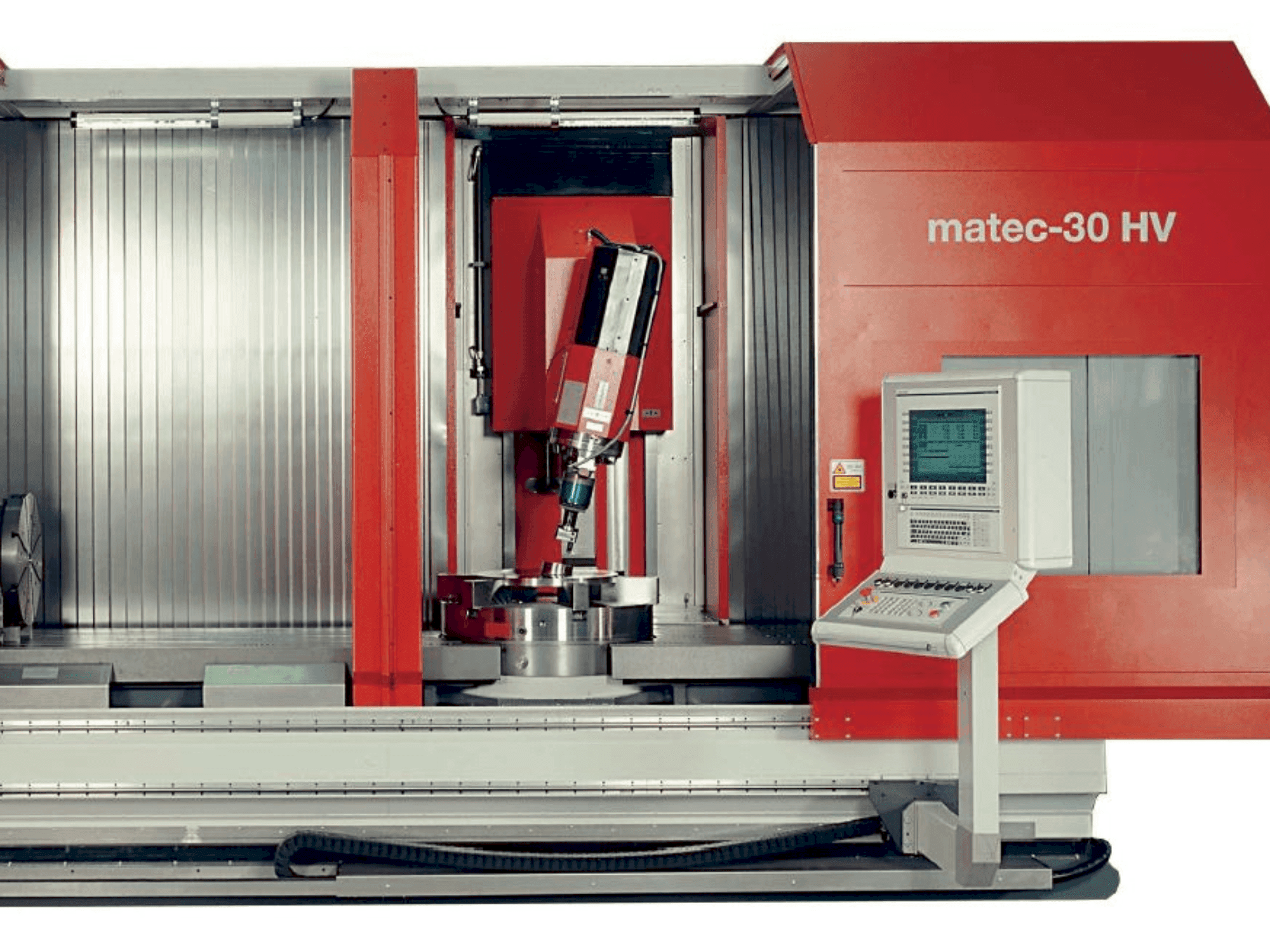

This 5-axis Matec 30 HV vertical machining center was manufactured in 2012. It features a large working area with X-axis at 4000 mm, Y-axis at 1000 mm, and Z-axis at 1100 mm. Equipped with a Rexroth IndraMotion MTX control system, SK40 tool holder, and a speed range up to 9000 rpm. Includes a 36-position tool magazine, full workspace enclosure, and chip conveyor. If you are looking to get high-quality milling capabilities consider the Matec 30 HV machine we have for sale. Contact us for more information.

Overview

brand: Matec
year: 2012
MODEL: 30 HV
production hours: 0
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: BOSCH

Technical Information - Matec 30 HV

Control Unit

Brand: BOSCH
Model: IndraMotion MTX

Main drive

Spindle speed range: 20 to 9000 1/MIN
Spindle motor power: 11 kW
Number of axis: 5

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 1000 mm

Tools

Number of stations: 36
Type of tool holder: SK40

Media

Chip conveyor: Yes

Additional Equipment

- Full workspace enclosure with top cover
- Harmonic protection with steel lamellas
- Direct path measuring system for X, Y, and Z axes
- Chip conveyor
- Coolant spray gun
- Central oil lubrication system
- Four-point workspace lighting
- Hydraulic clamping system
- Clamping Pressure: Max pressure 240 bar
- Oil Tank: 100 liters, including oil cooler

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Z-axis horizontal: 1100 mm z-axis vertical: 1000 mm
- - Maximum milling load: 1200 kg (central load)
- - Special motor spindle: variable bearing preload
- - Max drilling and milling speed: 12000 rpm
- - Sliding unit mounted on b-axis for main spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
