Matec - 30 HVDE-MIL-MAT-2003-00001

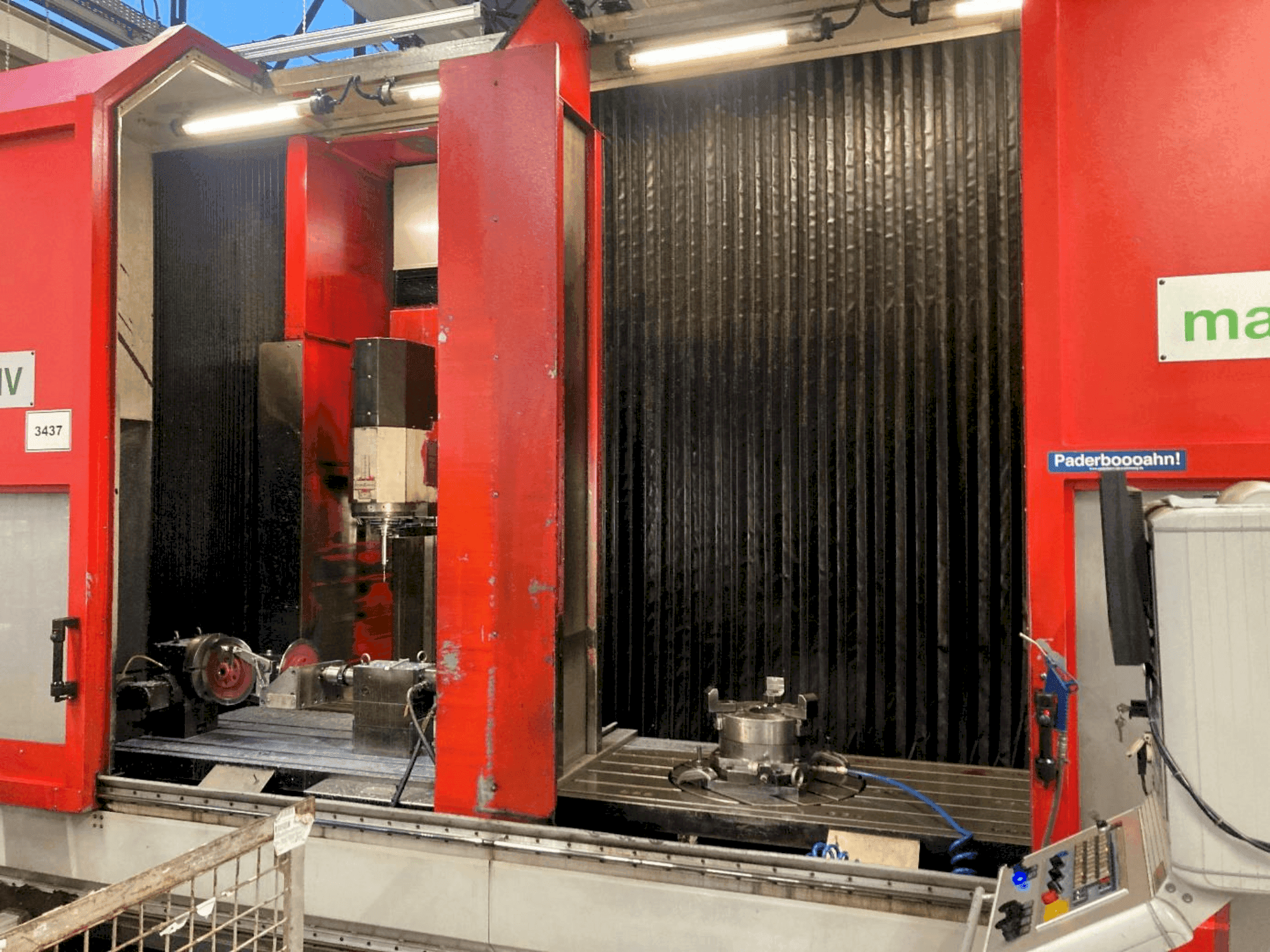

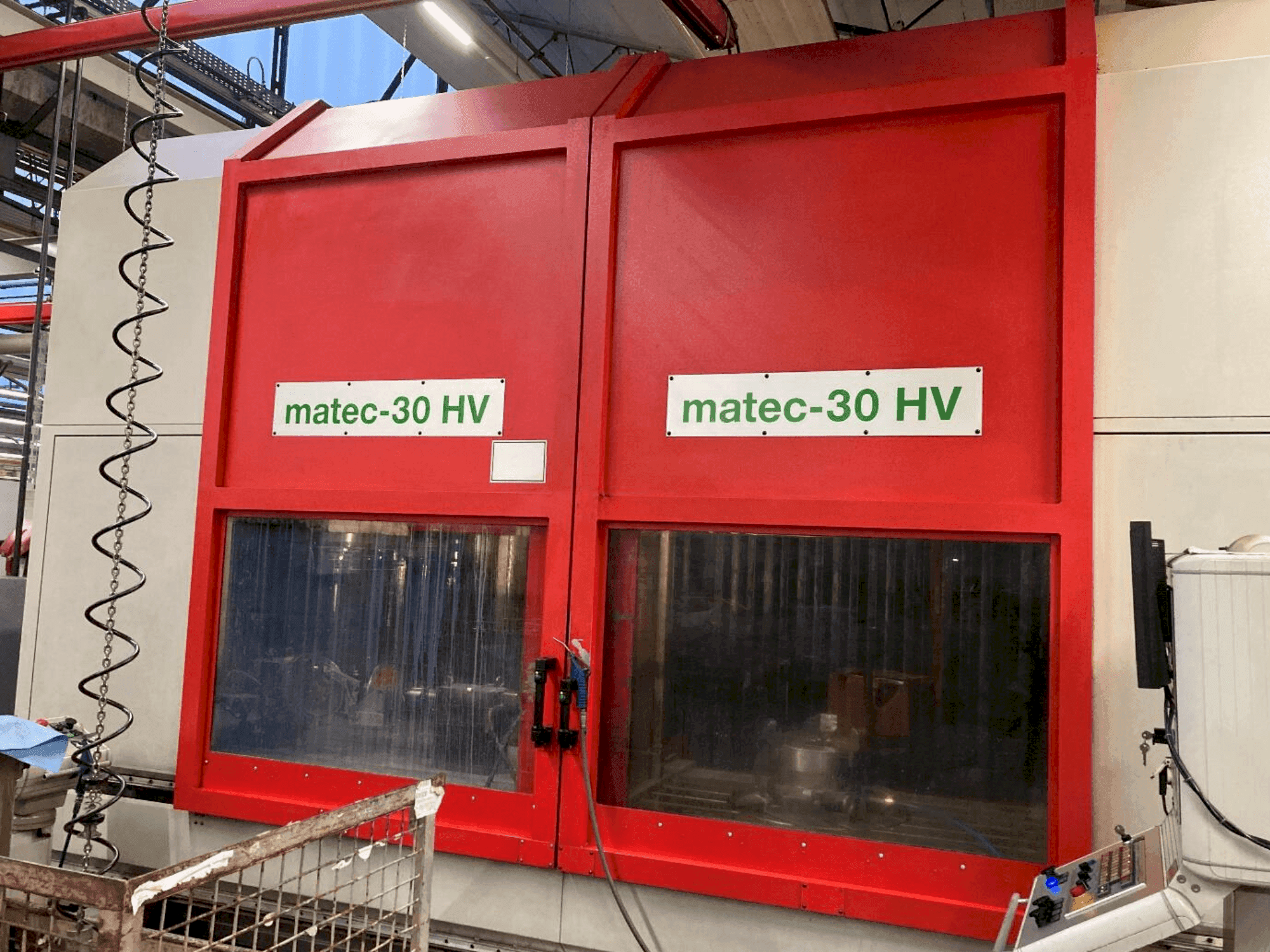

This MATEC 30 HV (2003) Universal Machining Centre was manufactured in 2003 in Germany. It is controlled by a BOSCH TYPE 3 OSA Control unit. This CNC traveling column milling machine (3+2 axes) is equipped with a main spindle type DMS 112 with speed range up to max. 12,000 min/-1 and drive power 30 kW. It has a NC swivel head (Sauter) with swiveling +/- 90 ° and graduation +/- 3 arc seconds. In addition it runs with a tool changer with 48 positions and a HSK A63 tool holder. The table is a NC rotary table with a clamping surface of 3,500 x 835 mm and 7 T-slots. IKZ 70 bar, paper belt filter and chip conveyor (ejection height 1200mm) and 3D radio measuring probe come with the machine. The machine is prepared with a 4th axis interface. The condition of the machine is very good - it is still in production and maintenance service has been applied regularly according to manufacturer's standards. An on-site inspection is possible at any time.
