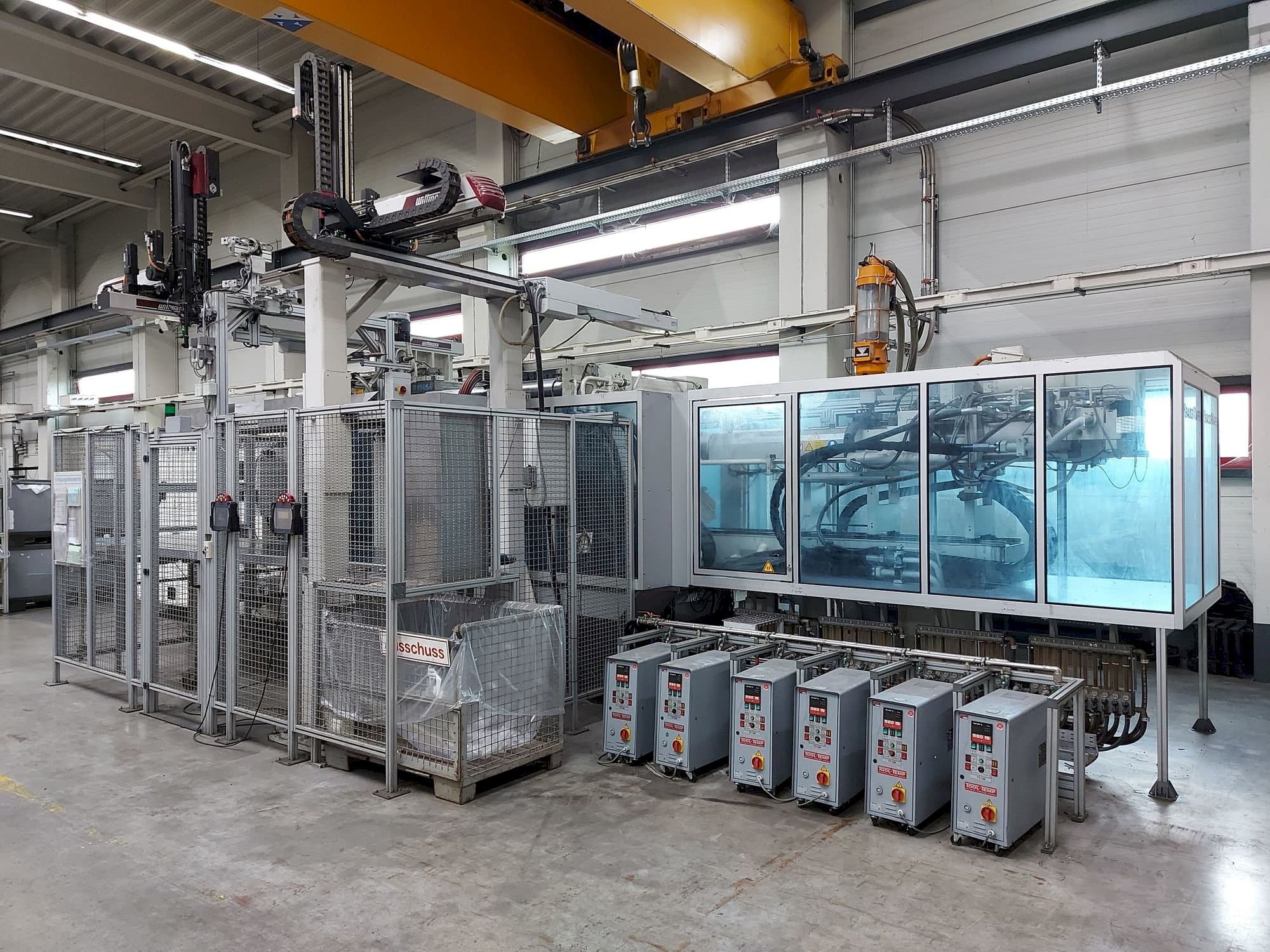

Front view of Krauss Maffei 650 Tandem machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 650 Tandem

Photo Gallery

Krauss Maffei - 650 TandemDE-INJ-KRA-2008-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

This Krauss Maffei 650 Tandem Injection Moulding Machine was manufactured in 2008. It has a record of approximately 21000 hours. This powerful machine incorporates a clamping force 6500 kN and an injection pressure 1776 bar.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 650 Tandem
production hours: 21000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Krauss Maffei 650 Tandem

General Data

Measurements width: 2810 MM
Measurements depth: 11240 MM
Measurements height: 2760 MM
Machine weight: 37000 KG

Tools

Max weight: 11.4 KG

Injection Unit

Screw diameter: 70 mm
Shot weight: ps 953 g
Stroke volume: 1047 CM³
Injection pressure: 1776 bar
Screw speed: 285 rpm
Heating capacity: 30 kw

Clamping unit

Clamping force: 6500 kn
Opening stroke: 1150 mm
Mould height min: 1350 mm
Size of mold platens: 1520 x 1370 mm

Media

Main electronic connection: 400 v 50 hz
Pump drive power: 110 kw

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mold opening force 346 kn
- - Moving force moving platen opening/closing 169/144 kn
- - Clear width (hxv) 1000 x 930 mm
- - Opening width 2500 mm
- - Injection flow 527 cm3/s
- - Control zones, cylinder heating 6
- - Stroke insert 1147 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
