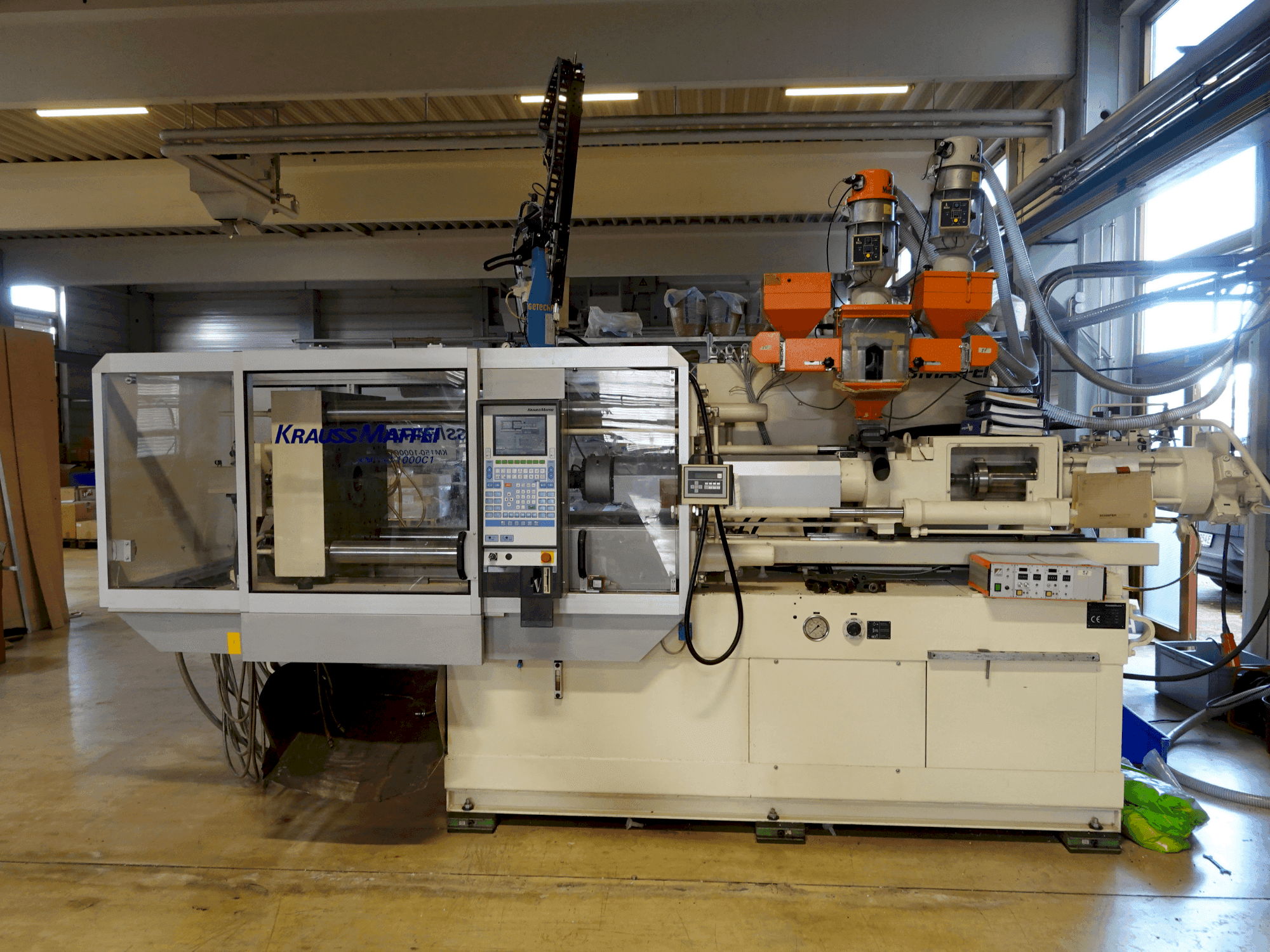

This hydraulic injection moulding machine was manufactured in 1997. It features a clamping force of 1500 kN and a screw diameter of 55 mm, suitable for precise injection moulding processes. The machine dimensions are 4.97 x 1.48 x 2.16 m, and it weighs 8 tonnes. If you are looking to get high quality moulding capabilities consider the Krauss Maffei KM 150-1000 C1 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Krauss Maffei
- year: 1997
- MODEL: KM 150-1000 C1
- production hours: 0
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei KM 150-1000 C1
General Data
- Measurements width: 1480 MM
- Measurements depth: 4970 MM
- Measurements height: 2160 MM
- Machine weight: 8000 KG
Injection Unit
- Screw diameter: 55 mm
- Shot weight: 476 g
- Stroke volume: 523 cm³
- Injection pressure: 1904 bar
- Screw speed: 196/280 1/min
Clamping unit
- Clamping force: 1500 kN
- Opening stroke: 600 mm
- Distance between bars: 500 x 500 mm
- Size of mold platens: 780 x 790 mm
- Ejector stroke: 150 mm
- Ejector force for / back: 22/11 kN
Additional Information
- Technical Machine Benefits:
- - Mould opening force: 86 kn
- - Mould installation height: 300 mm
- - Opening width: 900 mm
- - L/d ratio: 20 mm
- - Nozzle contact force: 110 kn
- - Net weight with control cabinet: 8 tonnes
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
