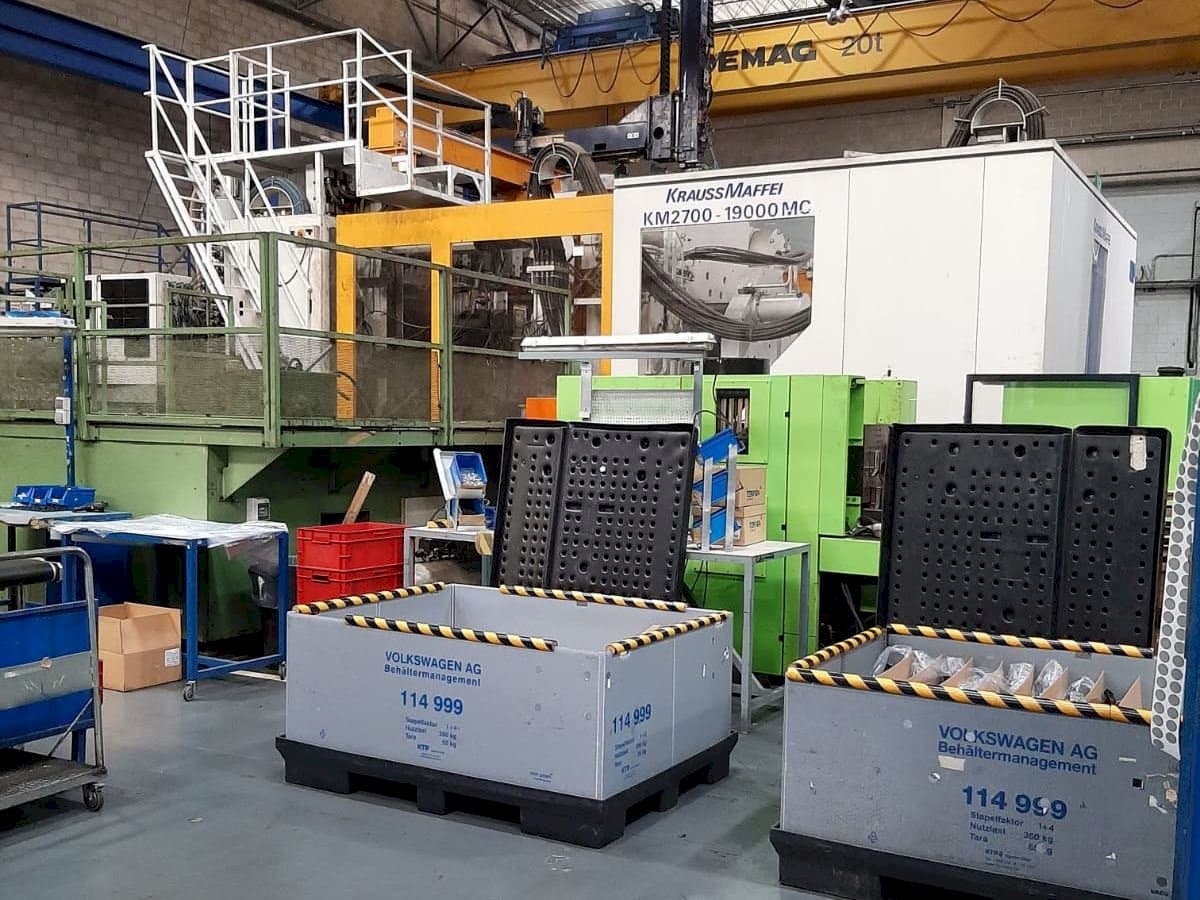

Front view of Krauss Maffei 2700/19000 MC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 2700/19000 MC

Photo Gallery

Krauss Maffei - 2700/19000 MCES-INJ-KRA-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 2700/19000 MC Injection Moulding Machine

Show in original language

This Krauss Maffei 2700/19000 MC Injection Moulding Machine was made in 1999 in Germany. This powerful machine incorporates a clamping force of 27000 kN and an injection pressure of 1707 bar.

Overview

brand: Krauss Maffei
year: 1999
MODEL: 2700/19000 MC
production hours: 85000
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine

Technical Information - Krauss Maffei 2700/19000 MC

General Data

Measurements width: 15440 mm
Measurements depth: 4680 mm
Measurements height: 3600 mm
Machine weight: 212000 kg

Injection Unit

Screw diameter: 150 mm
Shot weight: 10131 g/PS
Stroke volume: 11133 CM³
Injection pressure: 1707 bar
Screw speed: 83 1/min

Clamping unit

Clamping force: 27000 kN
Opening stroke: 2800 mm
Distance between bars: 2100 x 1700 mm
Mould height min: 1100
Mould height max: 1900 mm
Size of mold platens: 3020 x 2600 mm
Ejector stroke: 350 mm
Ejector force for / back: 772/380 kN

Additional Equipment

- Robot Suhling SMB 1221 S3 CNC

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
