KOVOSVIT MAS - Masturn MT 50/800CZ-TUR-KOV-1999-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- KOVOSVIT MAS Masturn MT 50/800 Lathe
Show in original language

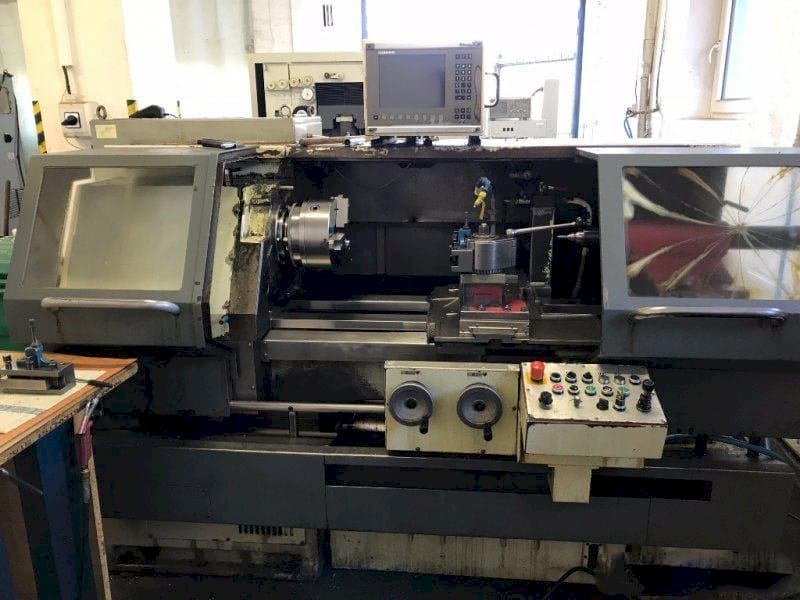

This KOVOSVIT MAS Masturn MT 50/800 Lathe from Czech Republic was manufactured in 1999. It is operated through a Heidenhain Manual plus M control unit. This machine incorporates a spindle speed up to 2400 rpm, and a spindle power of 11kW.
Overview
- brand: KOVOSVIT MAS
- year: 1999
- MODEL: Masturn MT 50/800
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - KOVOSVIT MAS Masturn MT 50/800
General Data
- Measurements width: 2383 mm
- Measurements depth: 1370 mm
- Measurements height: 1785 mm
- Machine weight: 2500 kg
Control Unit
- Model: Manual plus M
- CNC main language: Czech
- CNC language customizable: Yes
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 2400 1/MIN
- Spindle motor power: 11 kW
Movement
- X-AXIS Movement: 250 mm
- Z-AXIS Movement: 750 mm
Workpiece
- Workpiece drm: 500 mm
- Workpiece x: 350 mm
- Workpiece z: 800 mm
- Workpiece weight: 350 kg
Media
- Power consumption: 27 kVA
Additional Information
- Material type: Steel, stainless
- Technical Machine Benefits:
- - Max. Space between tips 800 mm
- - Max. Swing over bed 500 mm
- - Max. Swing over cross-slide 350 mm
- - Spindle bore 82 mm
- - Tailstock quill diameter 80 mm
- - Tailstock quill stroke 180 mm
- - Multifix tool holder
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
