Used Lathe KNUTH Starship 400 - 2015 - for sale | gindumac.com

Show in original language

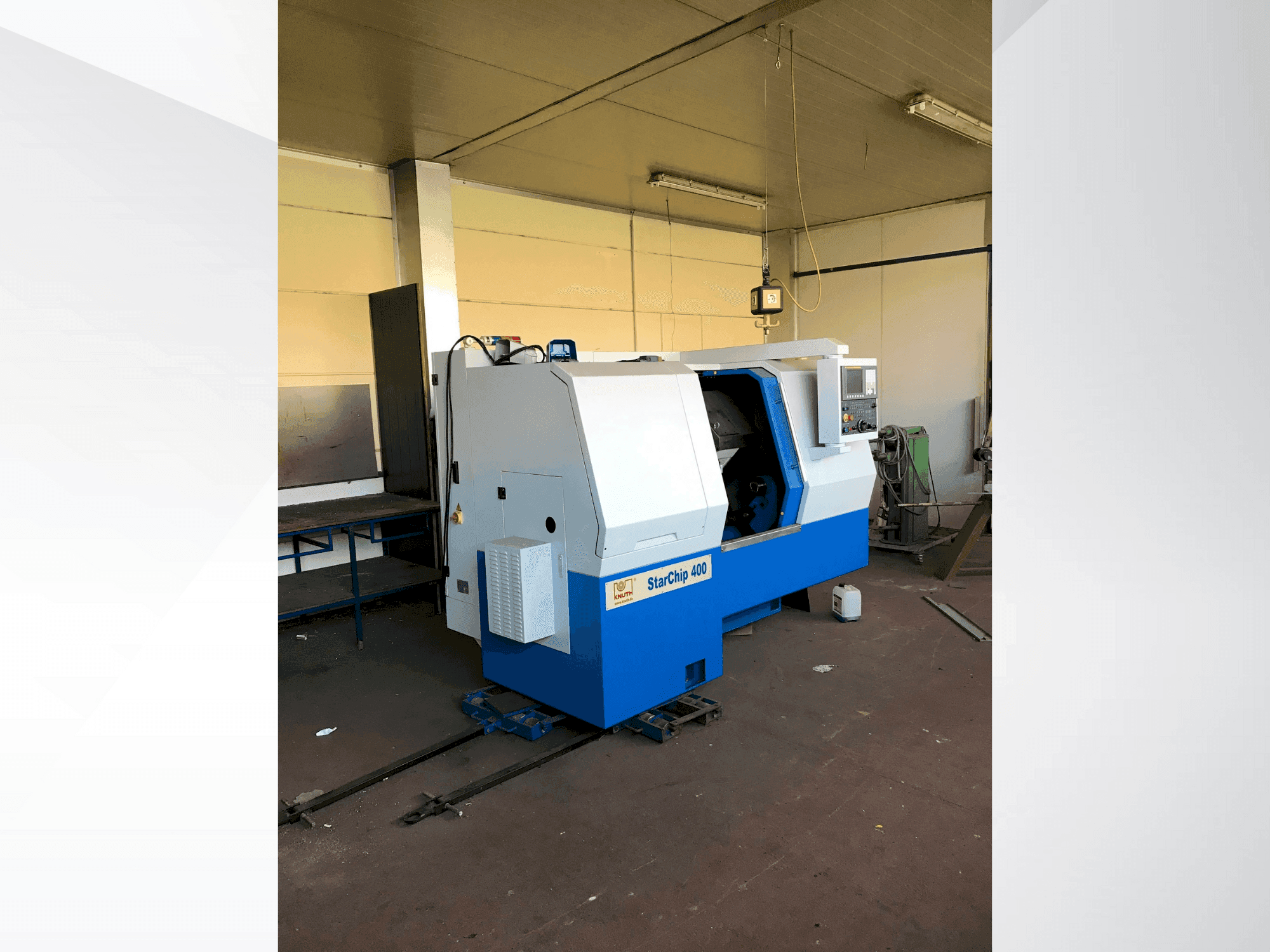

This 2-Axis lathe was manufactured in 2015. Featuring a Fanuc 0i-Mate TD control, it offers a speed range of 50-6000 min-1 and rapid traverse speeds up to 30000 mm/min. Equipped with a hydraulic 3-B chuck and hydraulic tailstock MK5, it ensures efficient operations. Weighing 5000 kg and with dimensions of 3300 x 1700 x 1700 mm, it’s robust yet space-efficient. Consider the Knuth Starship 400 for precise turning operations. Contact us for further information.

Overview

brand: KNUTH
year: 2015
MODEL: Starship 400
production hours: 2
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - KNUTH Starship 400

General Data

Measurements width: 3300mm
Measurements depth: 1700mm
Measurements height: 1700mm
Machine weight: 5000 kg

Control Unit

Model: Fanuc 0i-Mate TD control

Main drive

Spindle speed range: 50-6000 min-1 1/MIN
Number of axis: 2

Tools

Number of stations: 8

Media

Power consumption: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle holder iso a2-6
- - Centre distance 550mm
- - Hydraulic tailstock mk5
- - Hydraulic 3-b chuck
- - Rapid traverse speeds up to 30000 mm/min
- - Max. Turning diameter over bed 360mm

Extra information

- If required, a minimum quantity lubrication system can be included. The machine can be retrofitted with a C-axis and driven tools.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
