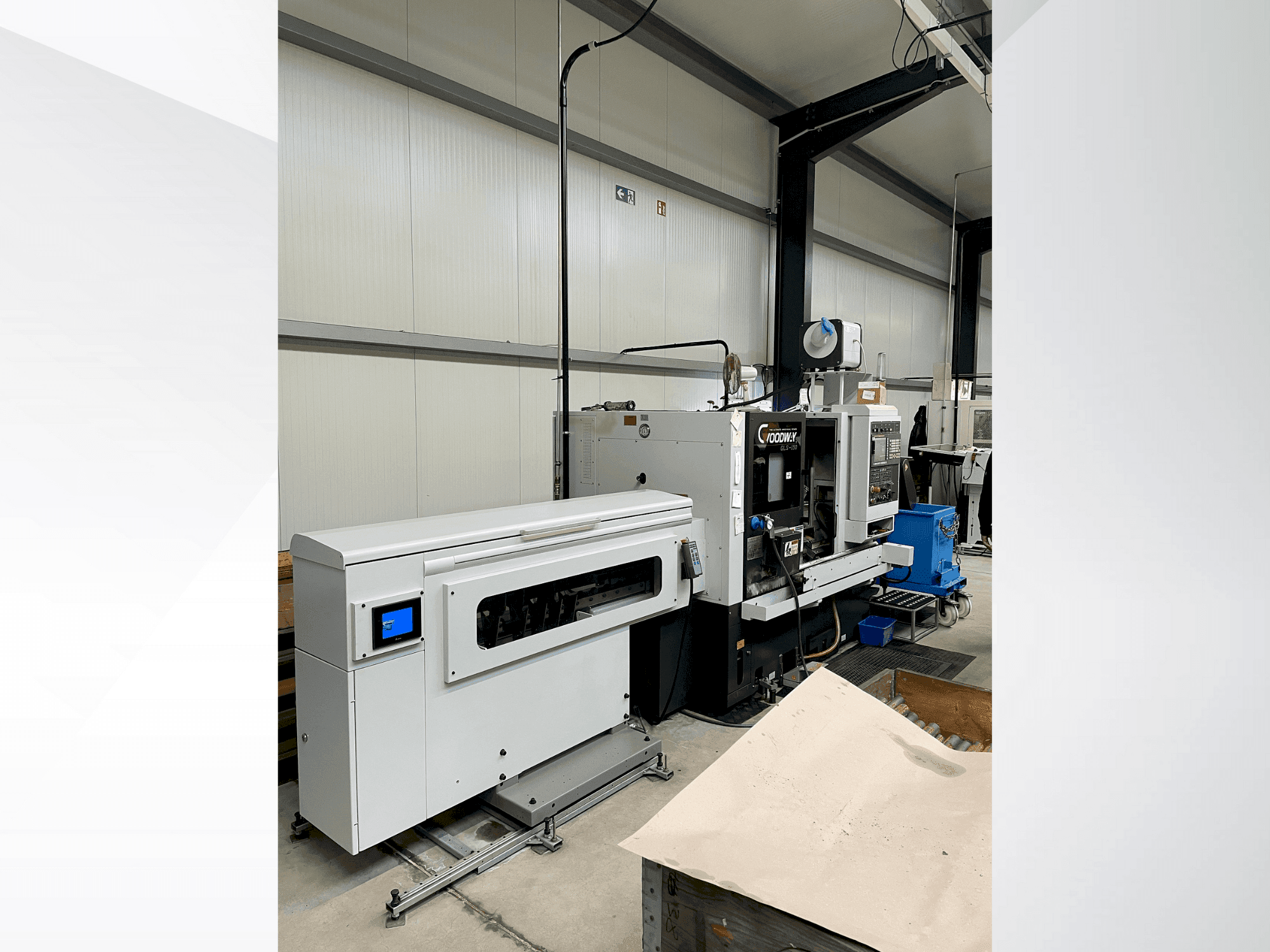

Goodway - GLS-150DE-TUR-GOO-2018-00001

Additional Equipment

• - Turret with Direct Mount (12 stations)
• - High-Precision Linear Guides on All Axes
• - Coolant System
• - Hydraulic System
• - Full Enclosure
• - Automatic Lubrication System
• - Signal Lamp (3-color)
• - Work Area Lighting
• - Automatic Machine Shutdown (via M-Code)
• - Automatic Chuck Operation

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max turning length: 500 mm
  • - Pinole diameter: 70 mm
  • - Programmable quill travel: 150 mm
  • - Tailstock travel: 290 mm
  • - Reinforced coolant pump (pressure: 20 bar)
  • - Parts catcher for main spindle
  • - Transport conveyor for finished parts
  • - 8 additional m-functions
  • - Interface for bar loader
  • - Bar loader: barload bk105
• Qualitative Machine Benefits:
  • - Prepared for a live center with mk4 mount
  • - Tool monitoring system: load monitoring
  • - Control cabinet with heat exchanger
  • - Foundation and leveling accessories
  • - Set of auxiliary tools
  • - Machine documentation
  • - Ce certification
  • - Renishaw-hpra measuring arm
  • - Stable 30° slant bed design for versatile, precise, and cost-effective machining solutions.
  • - Machine connection data: compatible with clamping device 2703 / 0007, chuck connection to standard spindle, spindle standard: din 55026, short taper size 5/6

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
