Haitian HTF86X Injection moulding machine

Show in original language

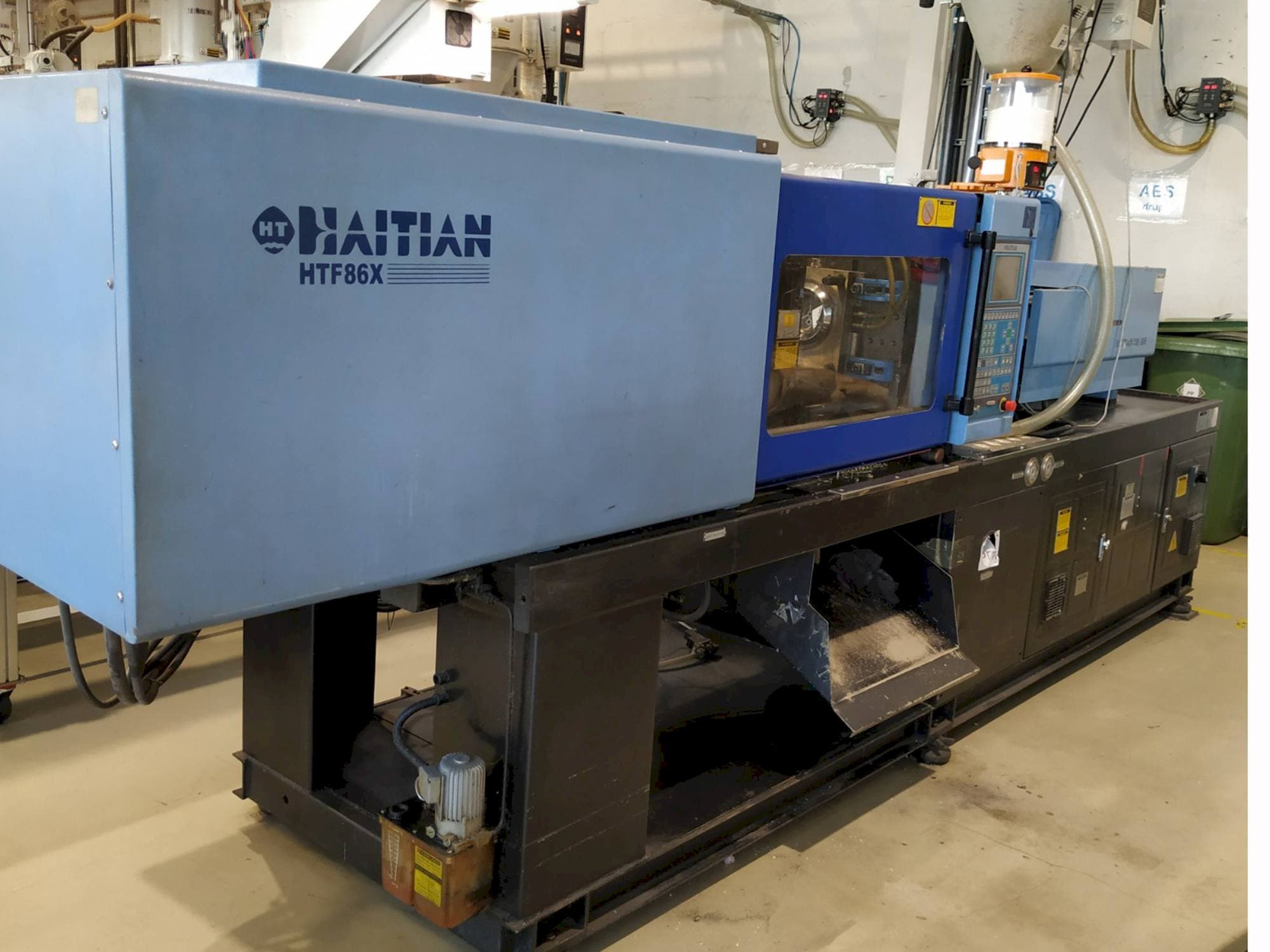

This Haitian HTF86X Injection moulding machine was manufactured in the year 2006. It is equipped with a Hatian control unit. The machine has a clamping force of 860 kN.

Overview

brand: HAITIAN
year: 2006
MODEL: HTF86X
application type: Injection Moulding
Location: Latvia
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: HAITIAN

Technical Information - HAITIAN HTF86X

General Data

Measurements width: 1250 mm
Measurements depth: 4500 mm
Measurements height: 1900 mm
Machine weight: 3450 kg

Control Unit

Brand: HAITIAN

Injection Unit

Screw diameter: 36 mm
Stroke volume: 310 mm CM³
Screw speed: 250 rpm

Clamping unit

Clamping force: 860 kN
Mould height min: 150 mm
Mould height max: 360 mm
Ejector stroke: 100 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Shot size (theoretical): 147 cm3
- - Injection weight: 134 g
- - Injection speed: 108. 4 mm/s
- - Plasticizing capacity: 11. 9 g/s
- - Injection pressure: 183 mpa
- - Max. Pump pressure: 16 mpa
- - Pump motor power: 13 kw
- - Heater power: 6. 2 kw
- - Capacity - 86000 kg
- - Hopper capacity: 25 kg
Qualitative Machine Benefits:
- - Oi tank capacity: 230 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
