HAITIAN - HTF 780xPL-INJ-HAI-2005-00001

Name: HAITIAN HTF 780x
Brand: HAITIAN
SKU: PL-INJ-HAI-2005-00001
Price: 44000 EUR
Availability: InStock

44,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Haitian HTF 780x For sale | gindumac.com

Show in original language

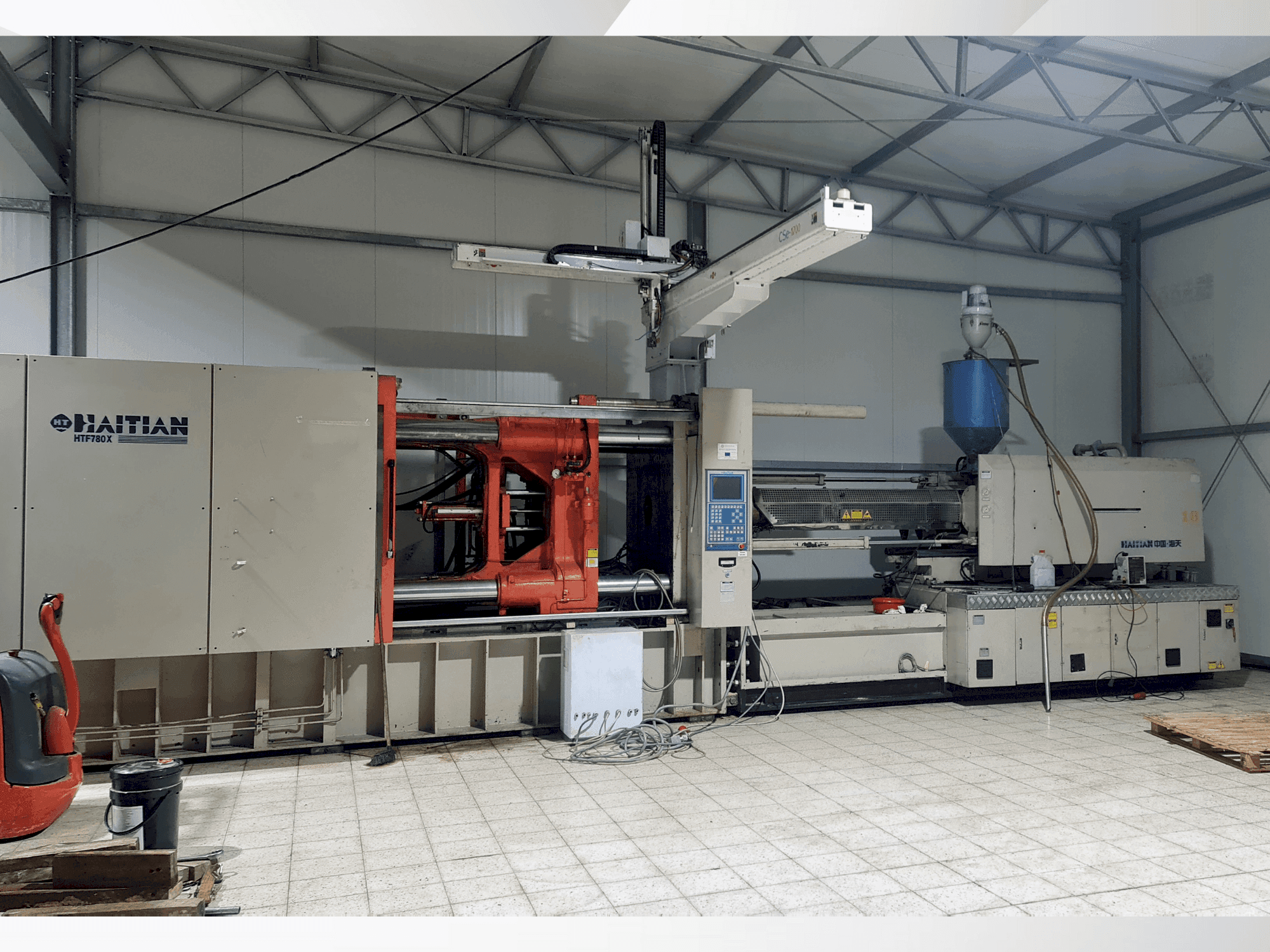

This Haitian HTF 780x was manufactured in 2005. It includes a ROBOT STAR type CSE 1700 and boasts a clamping force of 7800 kN with a screw diameter of 100 mm. The injection moulding machine has a maximum injection volume of 3456 cm³ and a plasticizing capacity of 85.2 g/s, making it highly efficient for large-scale production. The Haitian HTF 780x machine we have for sale is a robust addition to any plastics processing facility. Contact us for further details.

Overview

brand: HAITIAN
year: 2005
MODEL: HTF 780x
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - HAITIAN HTF 780x

General Data

Measurements width: 2600 MM
Measurements depth: 10500 MM
Measurements height: 3800 MM
Machine weight: 45000 KG

Injection Unit

Screw diameter: 100 mm
Shot weight: 3145 g
Injection pressure: 184 MPa BAR
Plasticizing rate max.: 85.2 g/s
Screw speed: 0-110 rpm
Heating capacity: 58.45 kW

Clamping unit

Clamping force: 7800 kN
Distance between bars: 980 x 980 mm
Mould height min: 400 mm
Mould height max: 980 mm
Ejector stroke: 260 mm
Ejector force for / back: 186 kN

Media

Oil tank: 1778 L

Additional Equipment

- ROBOT STAR type CSE 1700

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High injection capacity and speed, robust clamping force
Qualitative Machine Benefits:
- - High plasticizing capacity, precise control over injection parameters

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
