➤ Used HAAS ST40L - 2014 - Lathe For sale | gindumac.com

Show in original language

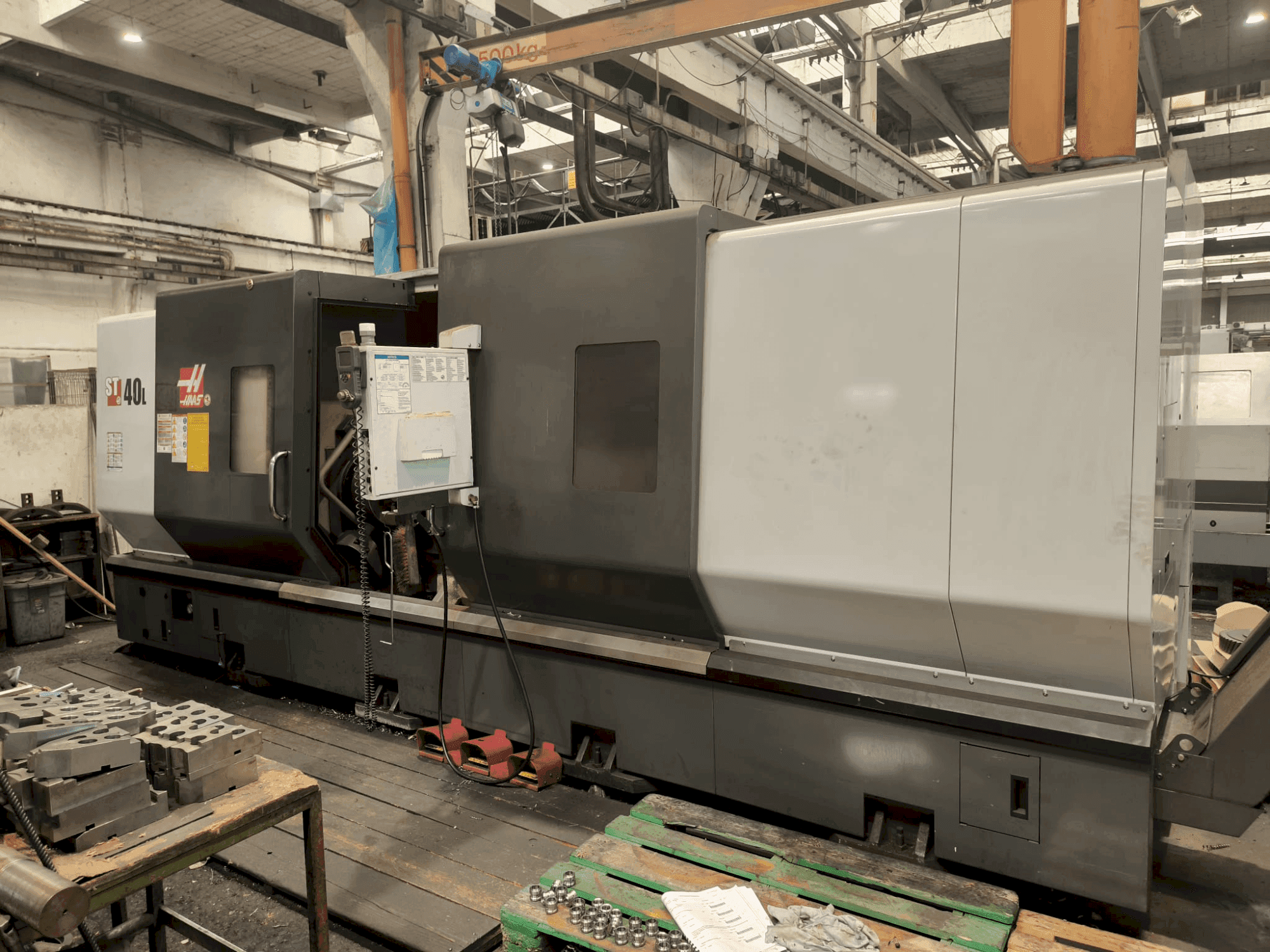

This HAAS ST40L lathe was manufactured in 2014. It features a swing diameter over front apron of 876 mm and a maximum cutting length of 2032 mm. Equipped with a 12-station BOT turret and a 2-speed gearbox, it offers a spindle speed up to 2400 rpm and a spindle power of 29.8 kW. Ideal for handling large and complex parts, the HAAS ST40L machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: HAAS
year: 2014
MODEL: ST40L
application type: Turning
Location: Croatia
machine type: Horizontal Turning Machine

Technical Information - HAAS ST40L

General Data

Measurements width: 242 cm MM
Measurements depth: 646 cm MM
Measurements height: 267 cm MM
Machine weight: 13563 kg

Main drive

Spindle speed range: 2400 rpm 1/MIN
Spindle motor power: 29,8 kW (41,0 kW with XP OPTION)
Spindle bore: 117,3 mm
Number of axis: 2

Movement

X-AXIS Movement: 432 MM
Z-AXIS Movement: 2032 MM

Workpiece

Workpiece drm over bed: 648 mm
Workpiece drm over support: 2032 mm

Additional Information

Additional equipment

Max Torque: 1898.0 Nm @ 150 rpm (2847.0 Nm @ 150 rpm with XP OPTION)
Max Thrust X: 24465 N / Max Thrust Z: 40034 N
Feedrates : Rapid Traverse X: 18.0 m/min Rapid Traverse Z: 8.1 m/min
Workpiece: Chuck Size: 381 mm / Bar Capacity: 102 mm
Number of Tools: 12-Station BOT / OD vs ID Tools: Any Combination (will vary with turret) / Boring Bar Rear Clearance: 111.0 mm
Coolant Capacity: 360 L
Air Requirements: Air Required: 113 L/min @ 6.9 bar / Inline Air Hose: 3/8 in / Coupler (Air): 3/8 in / Air Pressure Min: 5.5 bar
Electrical Specifications: Input AC Voltage (3 Phase) - Low: 220 VAC / Full Load Amps (3 Phase) - Low: 105 A / Input AC Voltage (3 Phase) - High: 440 VAC / Full Load Amps (3 Phase) - High: 53 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
