Goodway GLS-200M

Photo Gallery

Goodway - GLS-200MTR-TUR-GOO-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

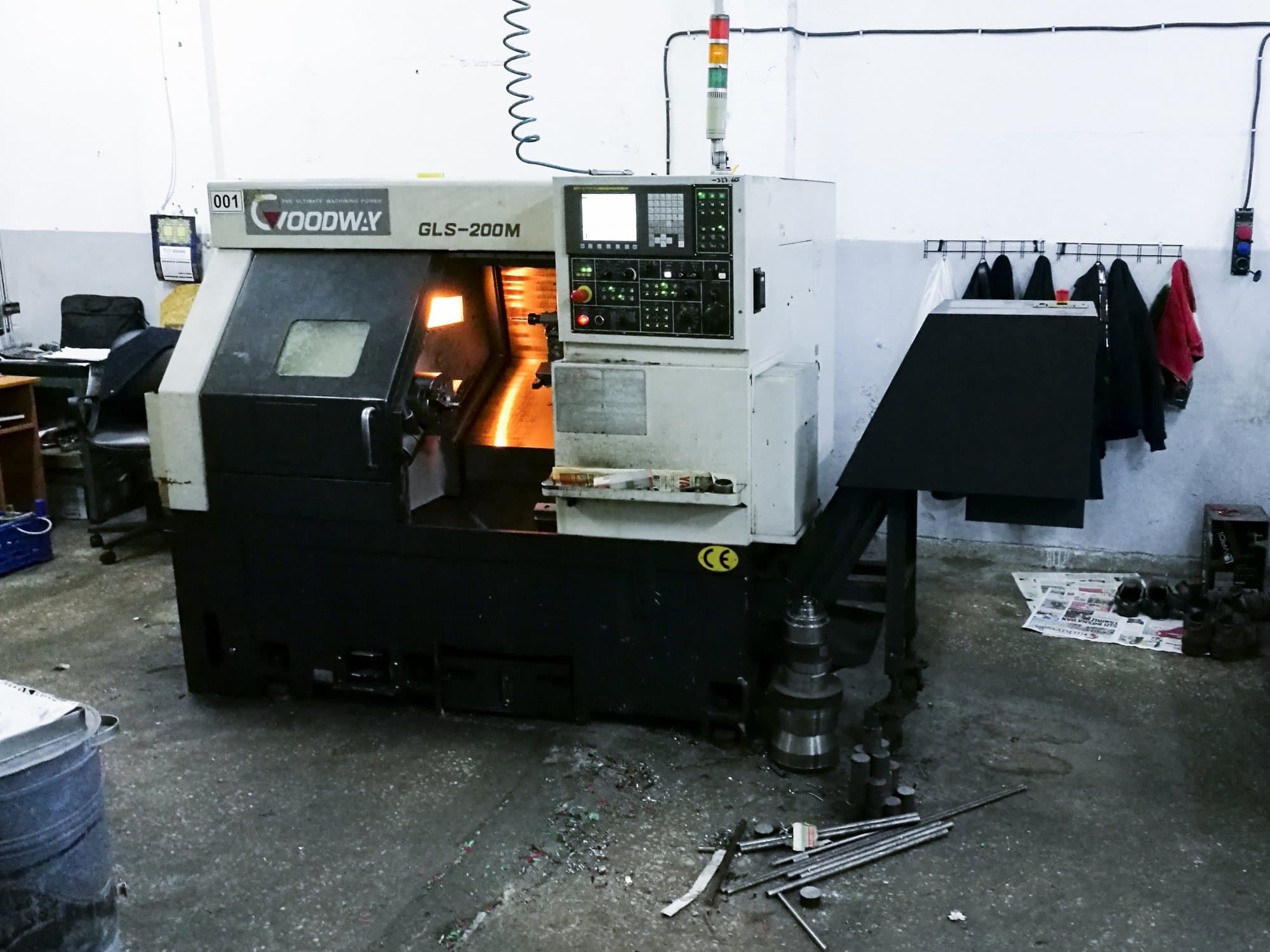

Goodway GLS-200M Turning Machine

Show in original language

This Goodway GLS-200M Lathe from 2007 has a production record of approximately 29200 hours. Operated through a FANU C0i-TC control unit (with Rs232 / RJ45 interface), this compact machine stands out for its 12x tool changer, which allows a quicker operation and a reduction of non-productive time. Because of its excellent results and incorporated chip conveyor, the equipment is an excellent choice within the Turning Centers market. As additional equipment, a driven tool holder is included.

Overview

brand: Goodway
year: 2007
MODEL: GLS-200M
production hours: 29200
application type: Turning
Location: Turkey
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Goodway GLS-200M

General Data

Measurements width: 2260 mm
Measurements depth: 1490 mm
Measurements height: 1675 mm
Machine weight: 3200 kg

Control Unit

Model: 0i-TC
Interface: RS232, RJ45
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 42-4200 1/min
Spindle motor power: 7.5 kW
Spindle bore: 66 mm

Movement

X-AXIS Movement: 200 mm
X-AXIS Working Feed: 1-4800 mm/min
X-AXIS Rapid traverse: 24 m/min
X-AXIS Accuracy: 0.005
Y-AXIS Movement: 520 mm
Y-AXIS Working Feed: 1-4800 mm/min
Y-AXIS Rapid traverse: 30 m/min
Y-AXIS Accuracy: 0.005

Workpiece

Workpiece drm over bed: 280 mm
Workpiece z: 340 mm
Workpiece weight: 85 kg

Turret

Number of turrets: 1
Number of tool slots: 12
Rotating tools: Yes

Tail Stock

Pinol diameter: 70 mm
Pinol way: 290 mm
Pinol tool taper: MT-4

Media

Main electronic connection: 220 V / 3 P / 50 Hz
Power consumption: 26 kVA
Lubrication tank: 120 L
Oil tank: 50 L
Chip conveyor: Yes

Additional Information

Additional equipment

Driven tool holder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
