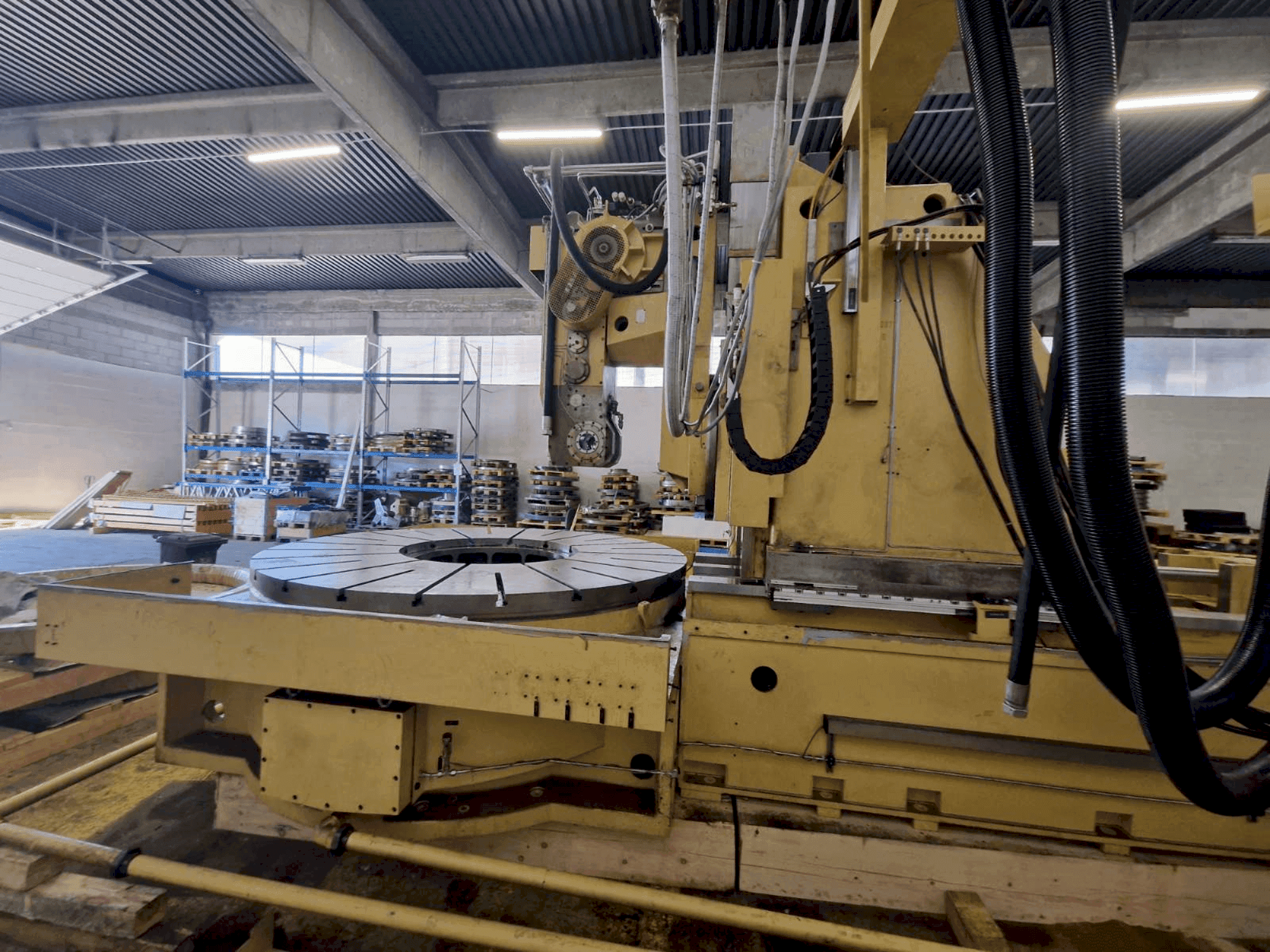

Gleason PFAUTER - P 2800SI-MIL-GLE-2007-00001

Additional Equipment

• - Siemens Path Control SINUMERIK 840 D, featuring 5 axes, 1 spindle, electronic gear, and integrated safety functions
• - Motorized Milling Heads for internal and external gears with a swivel range of +30 / -45 degrees
• - External Gears: Min. Diameter: 950 mm / Max. Diameter: 2800 mm
• - Cutter Arbor Cone: HSK-B160 (Hollow Shank Taper According to DIN 69063)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Nominal workpiece diameter: 2800 mm
  • - Table diameter: 2500 mm / pitch wheel diameter: 2200 mm / table bore diameter: 800 mm / table bore depth: 875 mm
  • - Smallest/largest distance between milling cutter and workpiece axis: 600 mm / 1735 mm / largest axial slide path: 1000 mm /largest milling cutter displacement path: 300 mm
  • - Min. /max. Wheelbase for internal gears: 280 mm / 1820 mm / min. Workpiece inner diameter: approx. 1000 mm for internal gears / max. Workpiece ring thickness: 240 mm for internal gears / max. Workpiece width for internal gears: 470 mm
  • - Largest champable hob diameter: 350 mm / largest champable hob length: 375 mm
  • - Machine nominal module - hobbing: approx. 20 mm gear / machine nominal module - milling: approx. 30 mm
