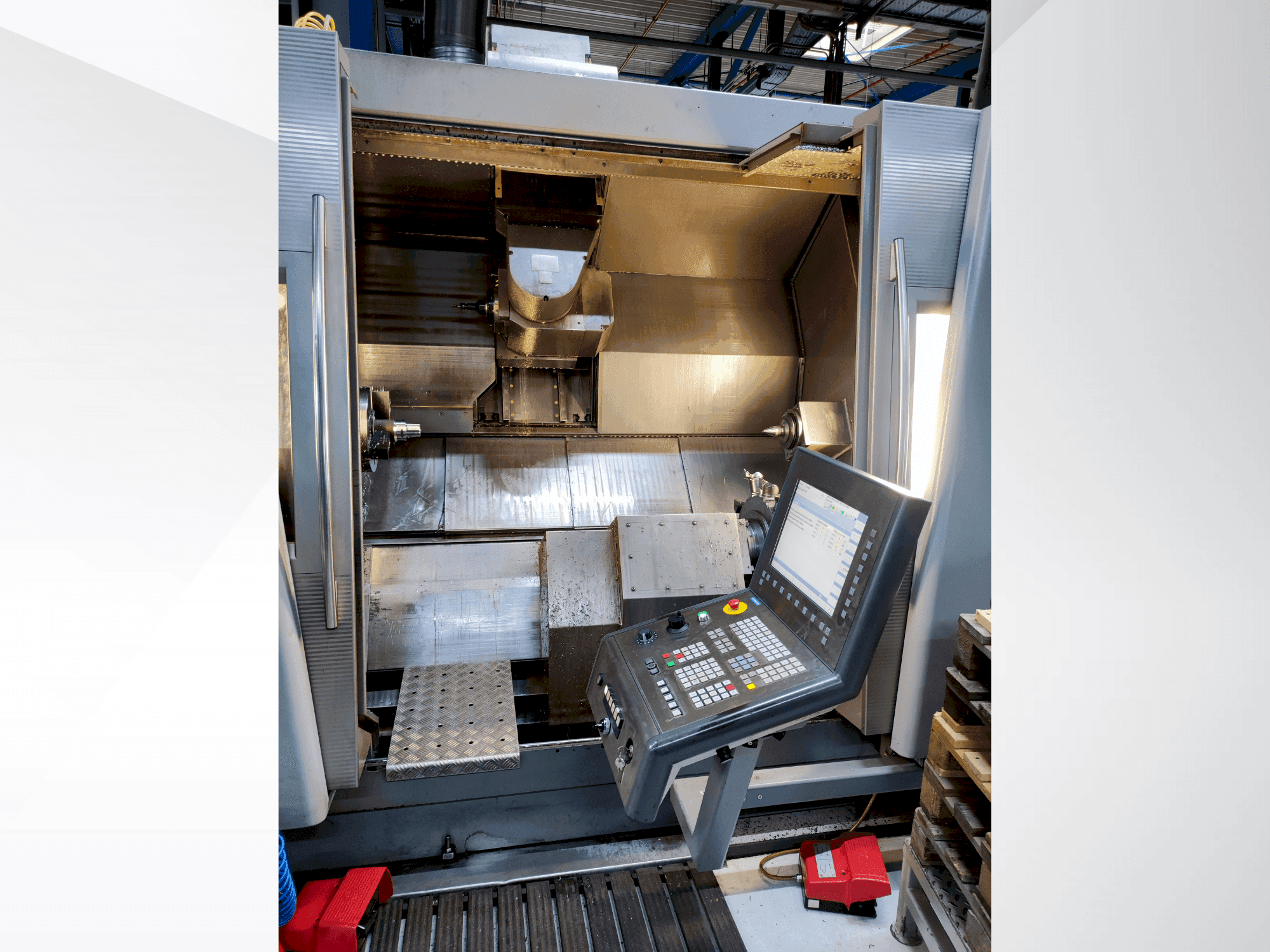

Front view of Gildemeister GMX 400 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister GMX 400 linear

Photo Gallery

Gildemeister - GMX 400 linearDE-TUR-GIL-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister GMX 400 linear For Sale | gindumac.com

Show in original language

This 7-axis Gildemeister GMX 400 linear was manufactured in 2006. A robust turn-mill centre featuring an integrated spindle motor ISM 90, it offers a turning length of 1585 mm and includes a Y-axis of ±110 mm and B-axis of ±120°. Equipped with a 60-position tool magazine and CNC control SIEMENS 840 D powerline, it represents a significant asset for precision machining. Reach out for further details regarding this turn-mill centre.

Overview

brand: Gildemeister
year: 2006
MODEL: GMX 400 linear
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - Gildemeister GMX 400 linear

Control Unit

Brand: SIEMENS
Model: 840 D powerline

Main drive

Spindle motor power: 36/45 kW (100/40% ED)
Tool taper: HSK-63A DIN 69893

Movement

Y-AXIS Movement: ±110 mm
B-AXIS Movement: ±120° interpolating with hydraulic clamping

Additional Information

Additional equipment

Integrated spindle motor ISM 90
Partial hollow clamping device (hydraulic)
C-axis and spindle brake (hydraulic)
Triple Hirth serration with 1° indexing
Absolute, direct path measuring systems in all linear axes
Coolant tank: 500 litres with lifting pump and level control
Coolant cleaning with belt filter (40 μm filter fineness)
Chip conveyor, discharge height 1100 V24 and Ethernet interface
Optional equipment: Star turret, Lower cross slide, NC tailstock

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
