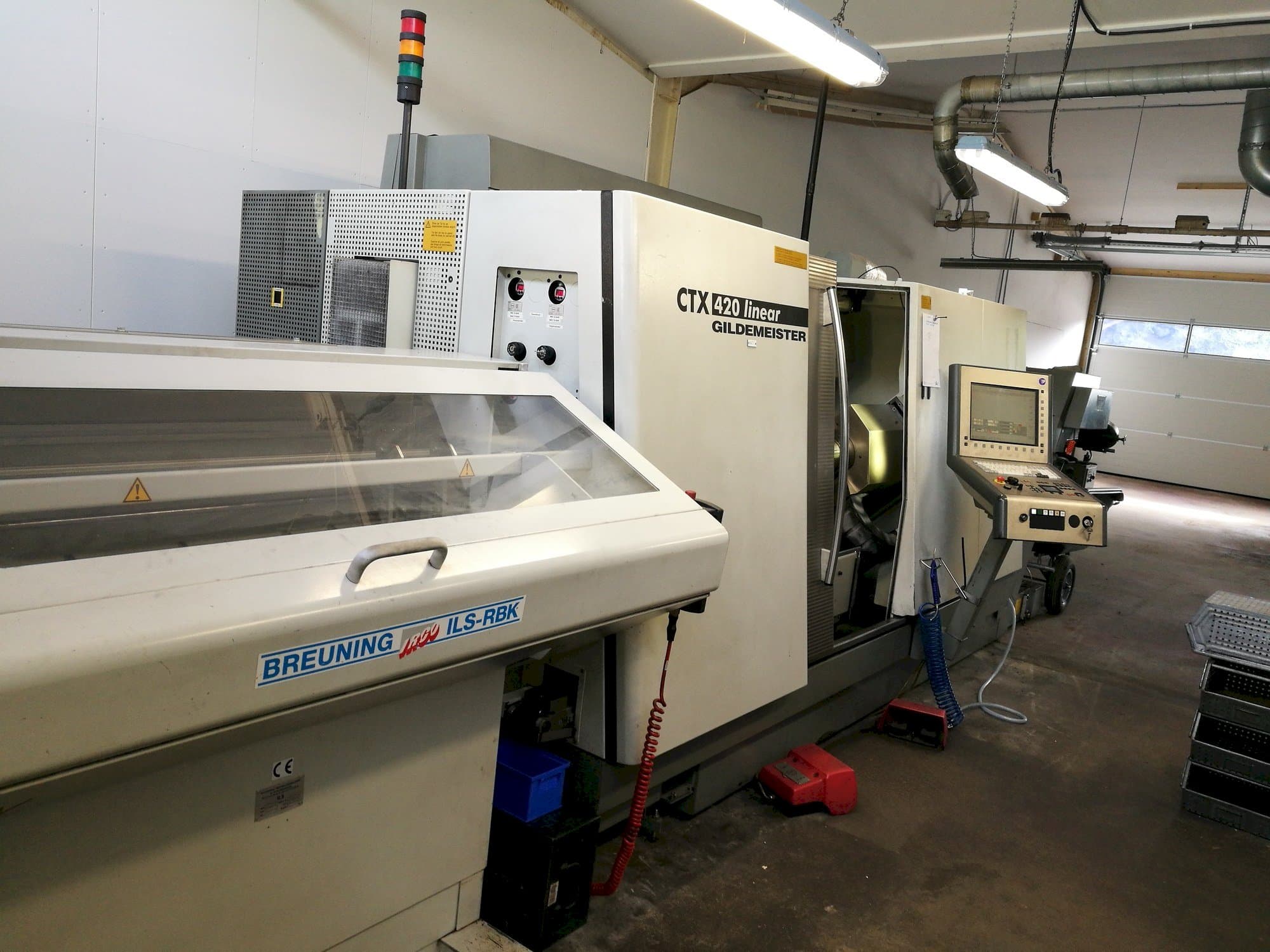

Front view of Gildemeister CTX 420 linear / V6 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 420 linear / V6

Photo Gallery

Gildemeister - CTX 420 linear / V6DE-TUR-GIL-2004-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister CTX 420 linear Lathe / V6

Show in original language

This Gildemeister CTX 420 linear Lathe / V6 was manufactured in 2004 in Germany. It has been working for only 15000 hours. It is equipped with a Heidenhain IT Turn plus control unit. This machine incorporates 2 spindles and can operate with a spindle speed up to 7000 rpm. This 4 axis machine counts with a Breuning short bar loader ILS-RBK 100 Servo (2004).

Overview

brand: Gildemeister
year: 2004
MODEL: CTX 420 linear / V6
production hours: 15000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 420 linear / V6

General Data

Measurements width: 4890 mm
Measurements depth: 2440 mm
Measurements height: 2080 mm
Machine weight: 6500 kg

Control Unit

Model: IT Turn plus
CNC main language: German
Brand: HEIDENHAIN
CNC language customizable: Yes

Main drive

Number of spindles: 2
Spindle speed range: 7000 1/MIN

Movement

X-AXIS Movement: 185 MM
Y-AXIS Movement: 40 MM
Z-AXIS Movement: 635 MM
C-AXIS Movement: 360

Workpiece

Workpiece drm: 324 MM
Workpiece x: 324 MM

Turret

Number of turrets: 12

Media

Main electronic connection: 400 V
Power consumption: 50 kWA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Less hours
The front glass is defect
Machine manual

Technical Machine Benefits

Full equipment with y- axis
Counter- spindle and rod loader

Extra Information

2 x 3 Jaw Chucks / 15 Collets / Tools - Price can be negotiate

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
