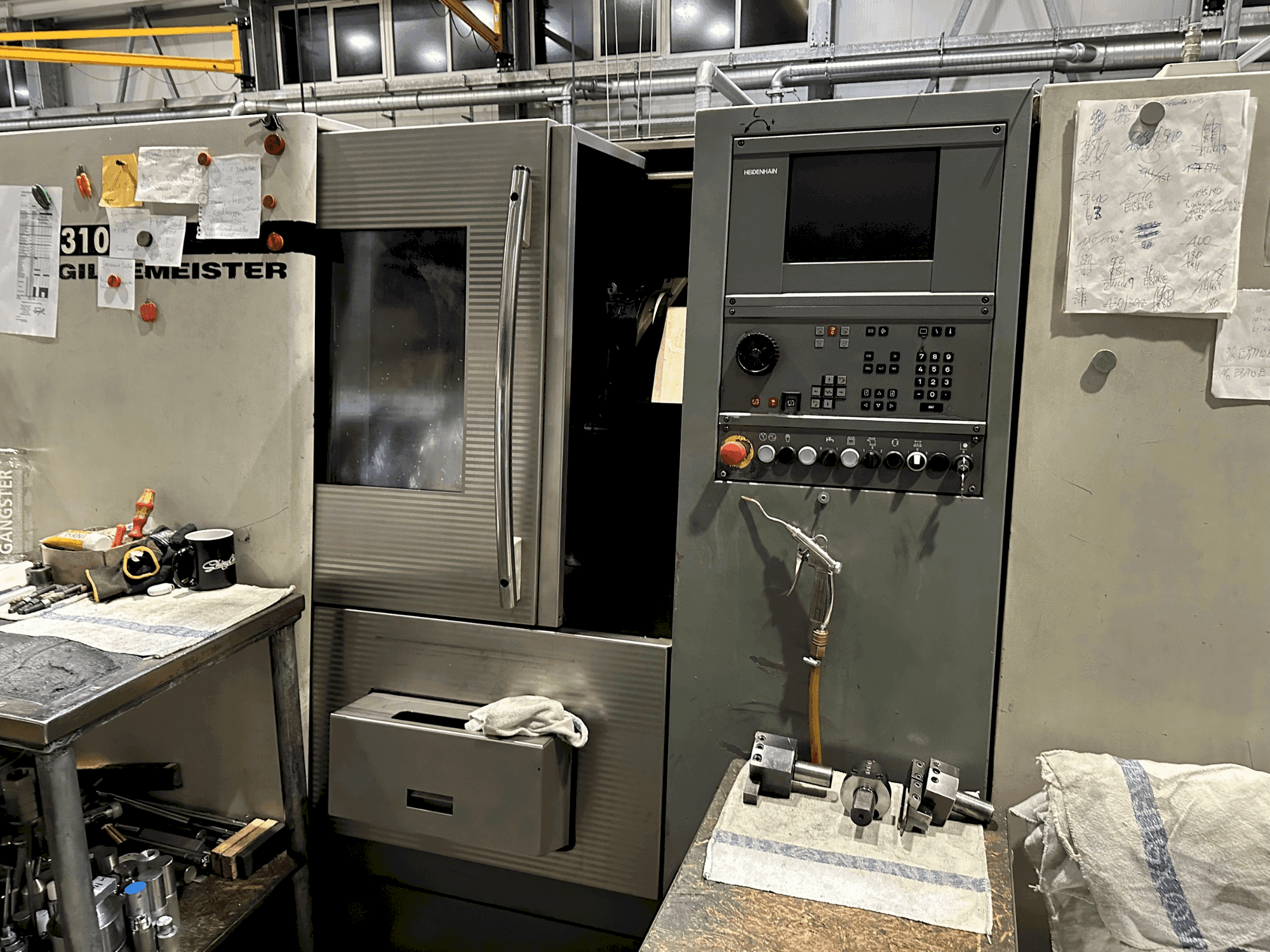

Front view of Gildemeister CTX 310 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 310

Photo Gallery

Gildemeister - CTX 310DE-TUR-GIL-2003-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used GILDEMEISTER CTX 310 - 2003 - Lathe For sale

Show in original language

This 3-axis GILDEMEISTER CTX 310 lathe was manufactured in 2003. It features a Heidenhain iT numerical control with DIN PLUS, TURN PLUS programming software, and a coolant lubricant pump. The lathe has a spindle bore of 68.5 mm and offers a speed range of up to 5000 rpm. It also includes 12 tool stations with a maximum torque of 86 Nm. The machine dimensions, including the chip conveyor, are 4173 x 1594 x 1730 mm. Reach out for further details regarding this horizontal lathe.

Overview

brand: Gildemeister
year: 2003
MODEL: CTX 310
production hours: 31820
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 310

General Data

Measurements width: 1594 mm
Measurements depth: 4173 mm
Measurements height: 1730 mm
Machine weight: 3800 kg

Control Unit

Model: iT
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20-5000 1/MIN
Spindle bore: 68.5 mm
Number of axis: 3

Movement

X-AXIS Movement: 160 mm
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece drm over bed: 330 mm
Workpiece drm over support: 260 mm

Tools

Number of index: 12
Number of stations: 6

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Coolant lubricant pump type Grundfoss 12 bar
Hollow clamping device diameter 52mm
Chuck diameter: 170/210mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
