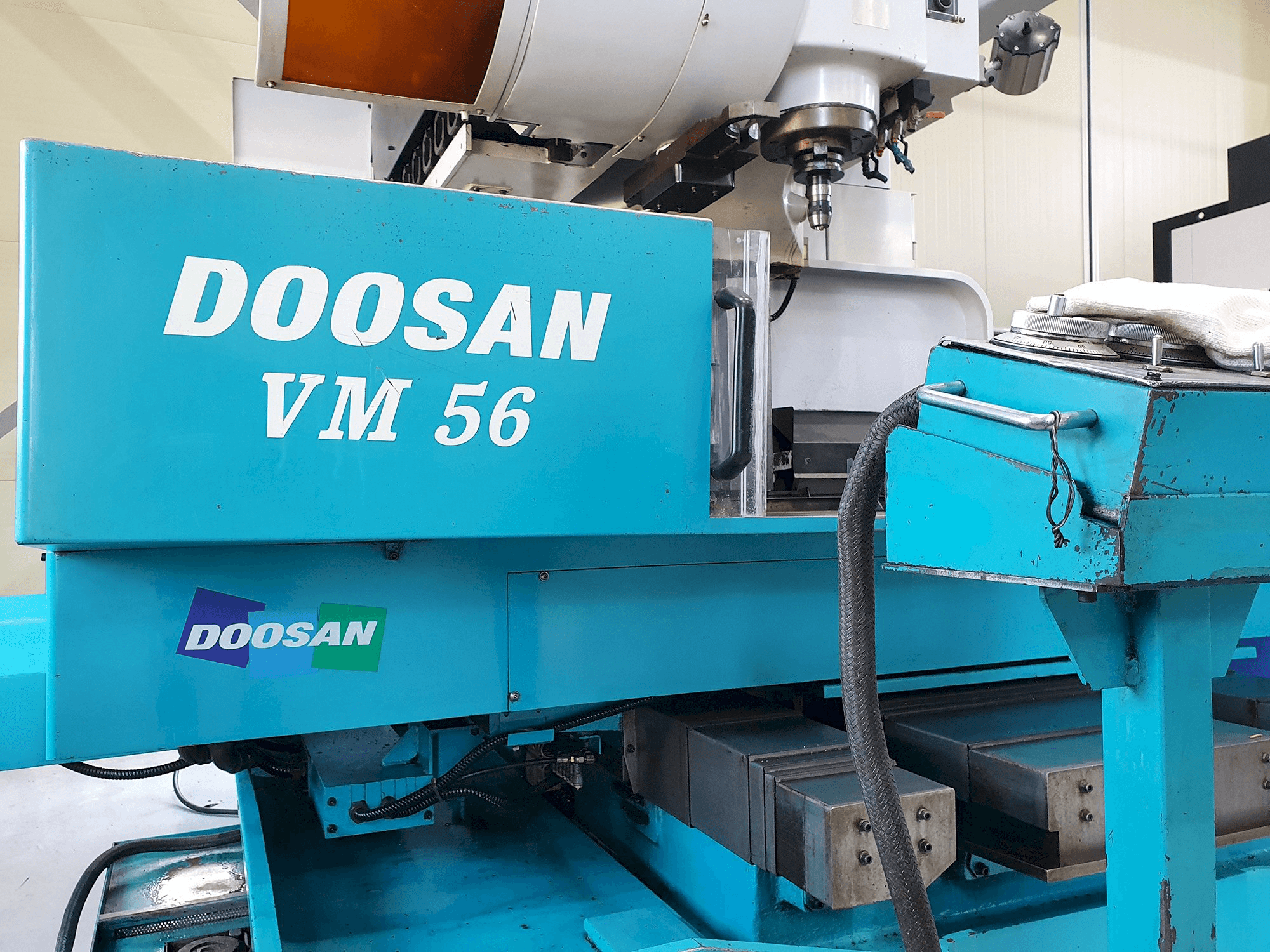

This Doosan VM56 Vertical Machining Center was built in South Korea in 2001. This machine can work with a spindle speed up to 6000 rpm. It incorporates a BT 50 tool taper and a magazine tool capacity of 24 pieces.
Overview
- brand: DOOSAN
- year: 2001
- MODEL: VM56
- application type: Milling
- Location: South Korea
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN VM56
Control Unit
- Model: Series 18-M
- Brand: FANUC
Main drive
- Spindle speed range: 6000 1/MIN
Movement
- X-AXIS Movement: 1050 mm
- Y-AXIS Movement: 650 mm
- Z-AXIS Movement: 650 mm
Table
- Outer length: 1600 mm
- Outer width: 600 mm
Tools
- Type of tool holder: BT 50
Media
- Main electronic connection: 220V, 60Hz
Additional Information
- Technical Machine Benefits:
- - Screw conveyer
- - Coolant tank : standard
- - Magazine tool capacity: 24
- - Mpg handle
- - Spindle gear box type:low-high
- - X, y, z axis: box guide
- - Oil cooler
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
