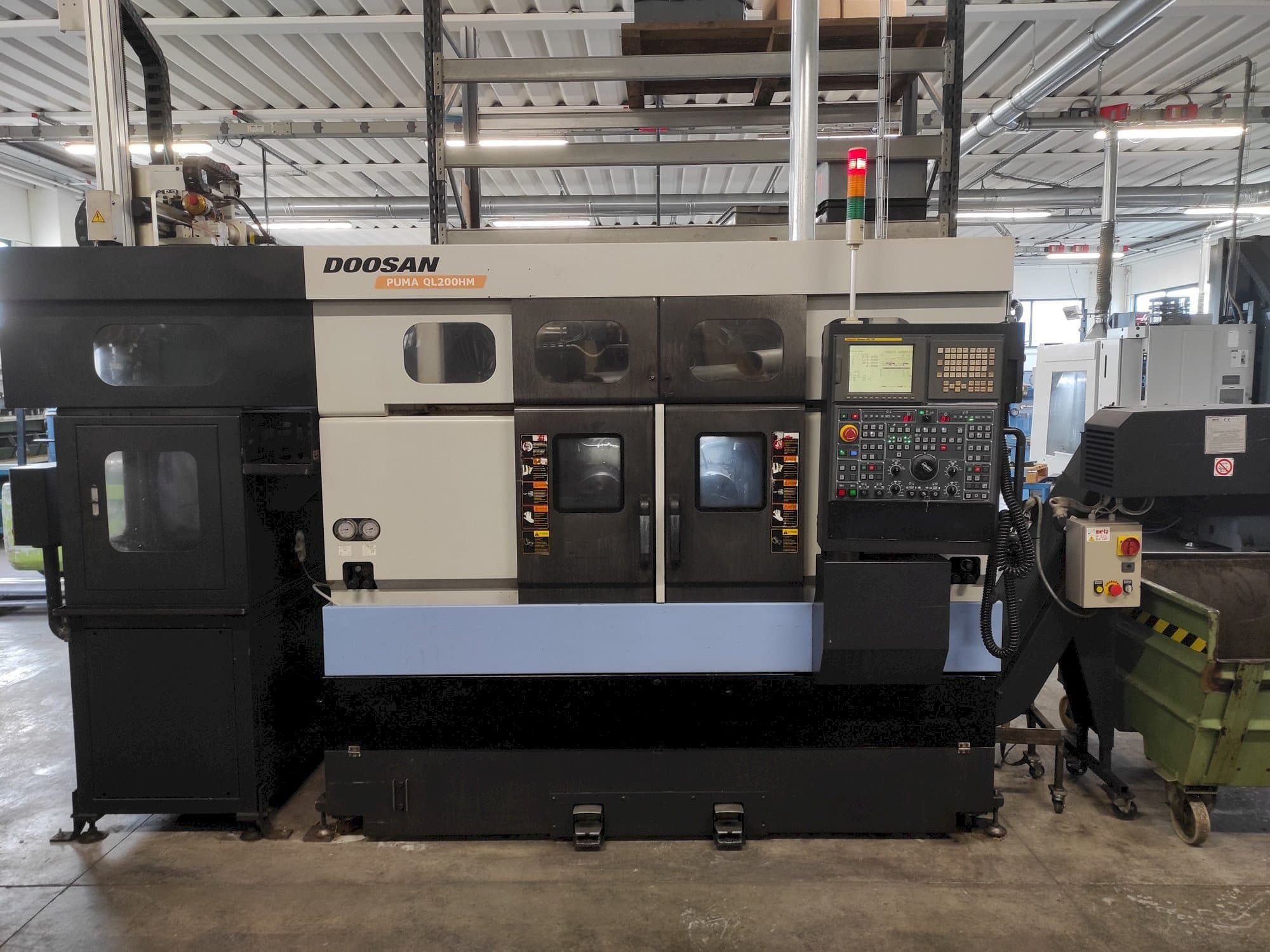

DOOSAN - QL200HMIT-TUR-DOO-2008-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Standard 3-jaw hydraulic chuck, diameter: 210 mm
  • - Series of soft jaws and series of reversible hardened jaws
  • - Maximum power available starting from the speed of: 529 min^-1
  • - Max. Torque spindle motor (cont. /30 min. ): 198/270 nm
  • - Front bearing diameter: 100mm
  • - Chuck diameter: 62 mm
  • - Internal diameter of the tie rod: 52 mm
  • - C1 axis positioning continuous spindle angular, interpolating, resolution
  • - Standard 3-jaw hydraulic chuck, closed type, diameter: 210 mm
  • - Series of soft jaws and series of reversible hardened jaws -
• Qualitative Machine Benefits:
  • - Prismatic guides and counter guides coated with anti-friction material
  • - Cast iron pallet, separate type (l+r), inclination
  • - Maximum power available starting from the speed of: 562 min^-1
  • - Max. Torque spindle motor (cont. /30 min. ): 187/255 nm
  • - Front bearing diameter: 100mm
  • - Internal diameter of the tie rod: 52 mm
  • - C2 axis positioning continuous spindle angular, interpolating, resolution
  • - Automatic bidirectional turret, without lifting, controlled by electric motor, with hydraulic locking; connection type: vdi-30 radial
  • - Motorized turret stations: 12 nr
  • - Coupling disc diameter: 150 mm

Payment Terms

• Payment in advance

• Asset Financing
