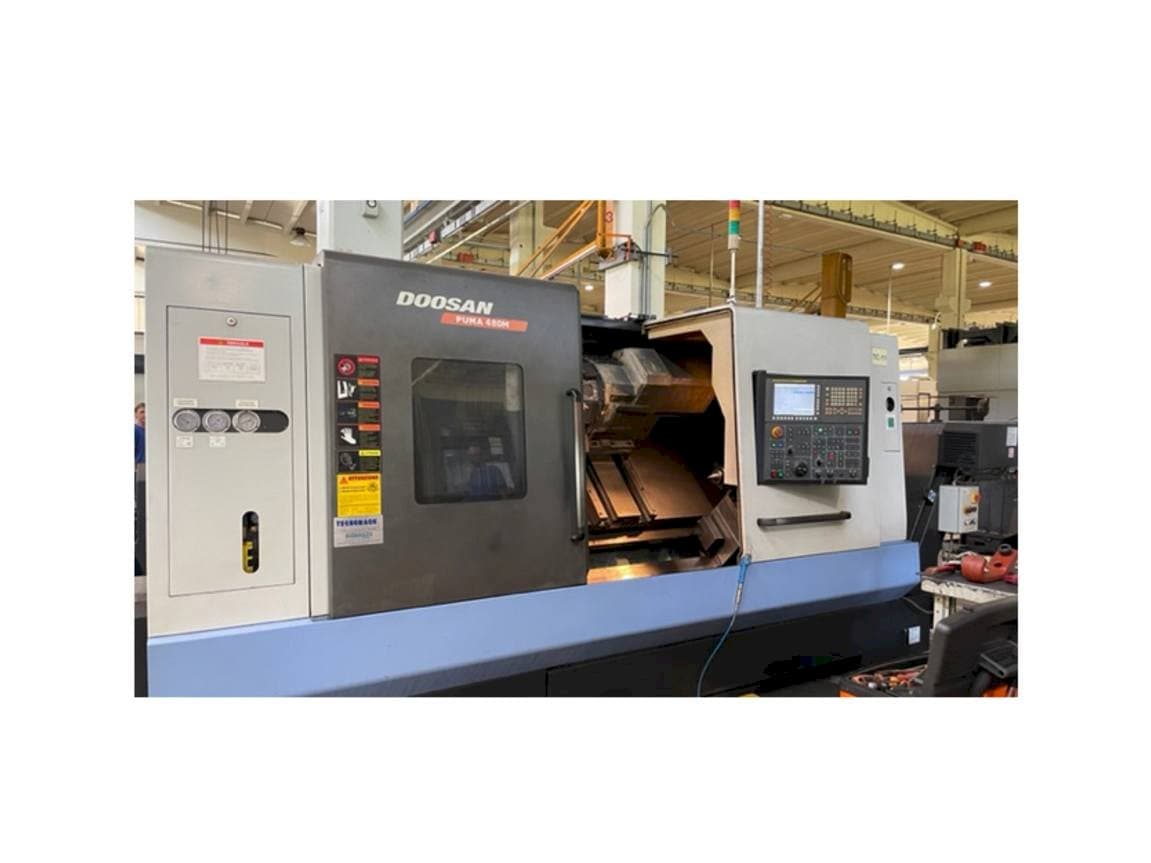

Front view of Doosan PUMA 480 MB machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA 480 MB

Photo Gallery

DOOSAN - PUMA 480 MBIT-TUR-DOO-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan PUMA 480 MB Lathe machine

Show in original language

This Doosan 480 MB Lathe machine was manufactured in the year 2011. It is equipped with a FANUC Series 32i-Model A control unit and has 3 axis. The machine has a spindle speed of 15-1500 rpm and includes a chip conveyor, tool set, and set of motorized and static tool holders.

Overview

brand: DOOSAN
year: 2011
MODEL: PUMA 480 MB
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN PUMA 480 MB

General Data

Machine weight: 10100 kg

Control Unit

Brand: FANUC
Model: Series 32i-Model A

Main drive

Spindle speed range: 15 - 1500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 362 mm
Y-AXIS Movement: 1105 mm
C-AXIS Movement: 360 ° positioning 0.001 °

Turret

Number of turrets: 12

Additional Information

Additional equipment

chip conveyor
tool setting
Set of motorized and static tool holders

Machine Benefits

Qualitative Machine Benefits

Motor power of motorized tools 11 kw.

Technical Machine Benefits

Max. Diam. Rotating on the bed 900 mm
Max. Diam. Rotating on the carriage 720 mm
Max. Diam. Bar turning 165 mm
Max. Diam. Turning 650 mm
Max. Turning length 951 mm
Spindle nose asa 15 "
Self-centering diam. 500 mm
Spindle motor power 45 kw (mechanical range change)
Motorized stations 12
Dimensions of turning / boring tools 25x25 - Ø 60 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
