DOOSAN Lynx 300M

Photo Gallery

DOOSAN - Lynx 300MGB-TUR-DOO-2014-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

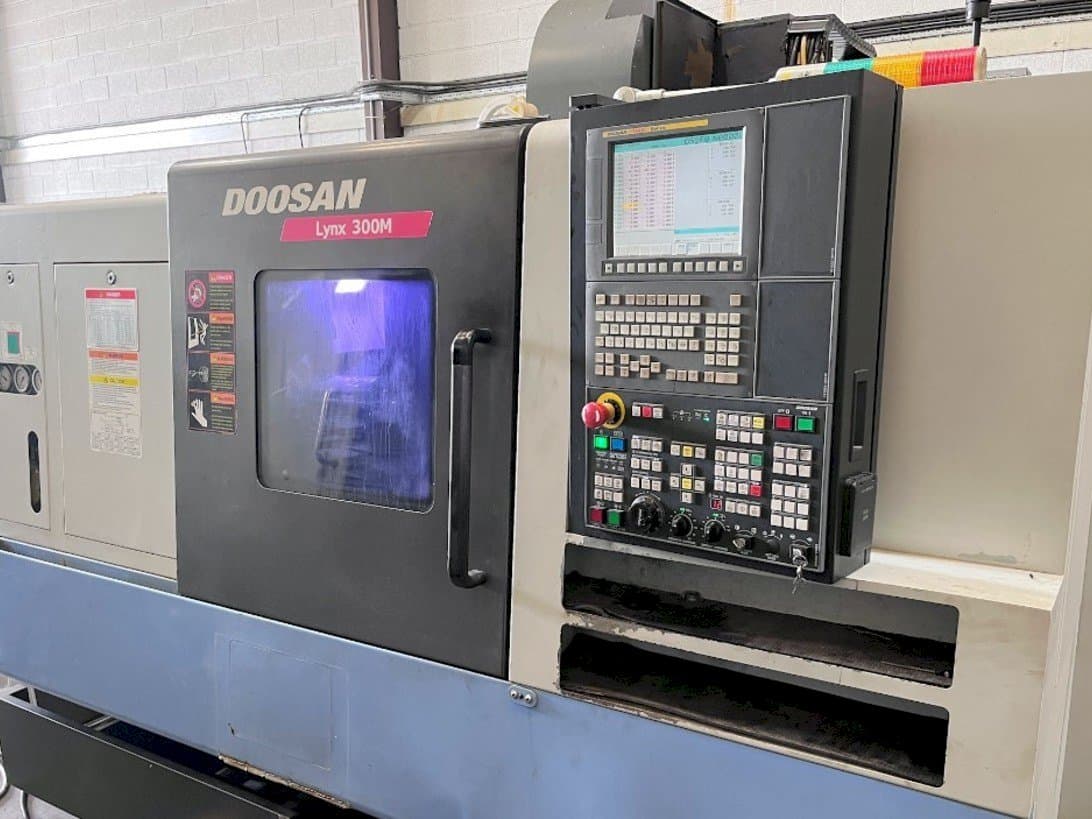

Doosan Lynx 300M Lathe

Show in original language

This Doosan Lynx 300M Lathe was manufactured in the year 2014 in South Korea. It is equipped with a FANUC OI WITH EZI GUIDE control unit and has 3 axis. It is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2014
MODEL: Lynx 300M
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Lynx 300M

General Data

Measurements width: 3035 mm
Measurements depth: 1785 mm
Measurements height: 1715 mm
Machine weight: 4050 kg

Control Unit

Brand: FANUC

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 255 mm
Z-AXIS Movement: 790 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: BMT 55

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 651 mm, over carriage 461 mm
- - Maximum machining diameter 370 mm
- - Maximum machining length 712 mm
- - Bar capacity 76 mm
- - Spindle motor power 15 kw
- - Turret milling power 5. 5/7. 5kw, speed 5000 rpm
- - 0. 001 degree c axis
- - Tool setter, tooling
- - "chuck size 305mm"
- - Tailstock (taper mt #4, quill dia. 80 mm, stroke 120 mm)
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
