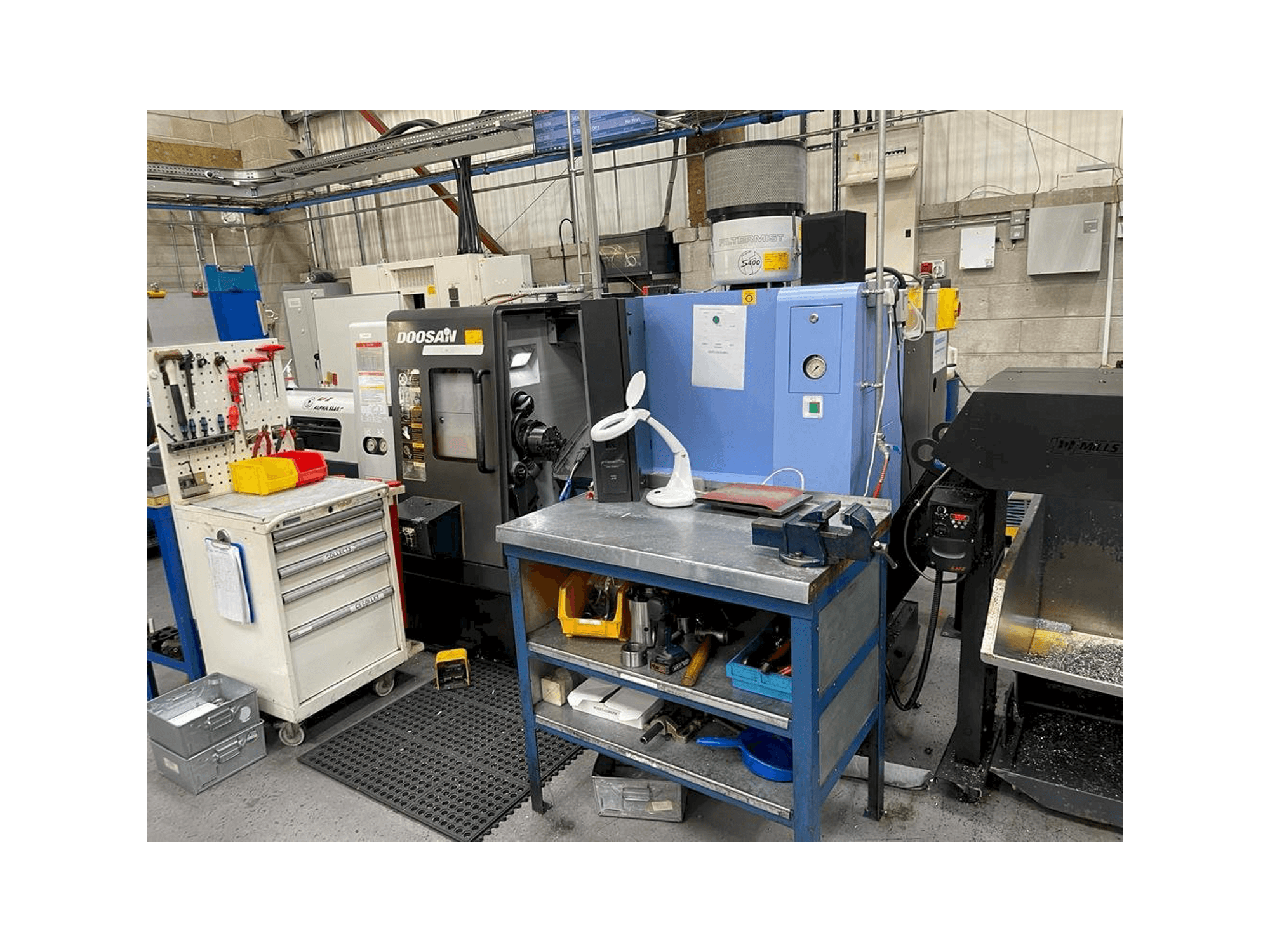

Front view of Doosan Lynx 220 LMA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 220 LMA

Photo Gallery

DOOSAN - Lynx 220 LMAGB-TUR-DOO-2014-00006

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 220 LMA Lathe machine

Show in original language

This Doosan Lynx 220 LMA Lathe machine was built in the year 2014. It is equipped with a FANUC i Series control unit and has 3 axis. The machine has a spindle speed of 6000 rpm and is in very good condition.

Overview

brand: DOOSAN
year: 2014
MODEL: Lynx 220 LMA
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220 LMA

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Depth: 1600 mm
Machine Height: 1655 mm
Machine Weight: 3100 kg

Movement

X-axis Travel: 175 mm
Z-axis Travel: 550 mm

Technical Specification

Number of Tools: 24
Spindle Power: 15 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 510 mm, over carriage 290 mm
Maximum machining diameter 250 mm
Maximum machining length 510 mm
Bar capacity 51 mm
Turret positions 24 (positions 1-12 driven)
0. 001 degree c axis
Tailstock (taper mt #4, quill diameter/ stroke 65/80mm)
3 jaw chuck, magazine barfeed, swarf conveyor,
Tool setter, parts catcher
3 controlled axes (x, z, c)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
