DOOSAN Lynx 220 B

Photo Gallery

DOOSAN - Lynx 220 BRO-TUR-DOO-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 220 B Lathe

Show in original language

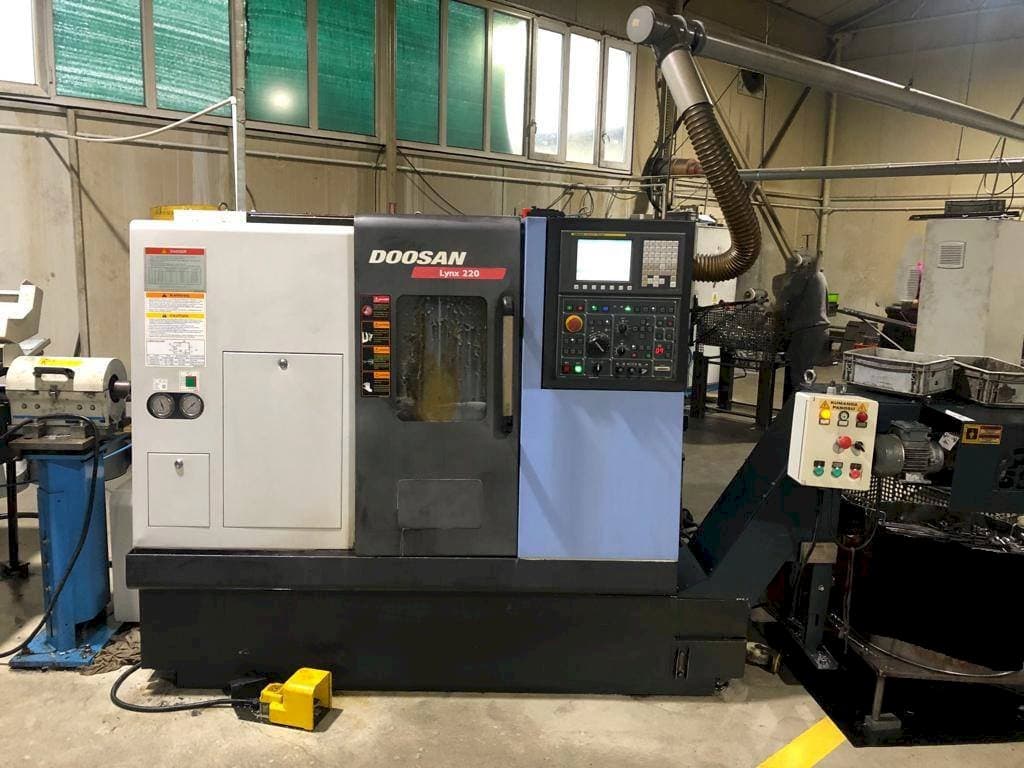

This Doosan Lynx 220 B Lathe was built in the year 2011 in Korea. It has been operative for 47646 hours, from which 15678 are cutting hours. It is equipped with a FANUC I-Series Control unit. This machine spindle can operate with a speed up to 5000 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: Lynx 220 B
production hours: 15678
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220 B

General Data

Measurements width: 2500 mm
Measurements depth: 1620 mm
Measurements height: 1600 mm
Machine weight: 3100 kg

Control Unit

Model: I-SERIES
Brand: FANUC

Main drive

Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 11 kW

Movement

X-AXIS Movement: 175 mm (160+15)
Z-AXIS Movement: 330 mm (550)

Media

Power consumption: 23,7 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 510mm
- - Swing over carriage 290mm
- - Recom. Turning diam 210 mm
- - Maximum turning diameter 320 mm
- - Bar capacity working diam 51 mm
- - Maximum cutting length 305 mm
- - Spindle nose a2-6
- - Spindle bearing diam 100 mm
- - Spindle trhough hole diameter 61 mm
- - Tailstock quill diam 65 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
