DN SOLUTIONS - DNM 4500PL-MIL-DNS-2022-00001

Name: DN SOLUTIONS DNM 4500
Brand: DN SOLUTIONS
SKU: PL-MIL-DNS-2022-00001
Price: 75000 EUR
Availability: InStock

75,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DN SOLUTIONS DNM 4500 For Sale | gindumac.com

Show in original language

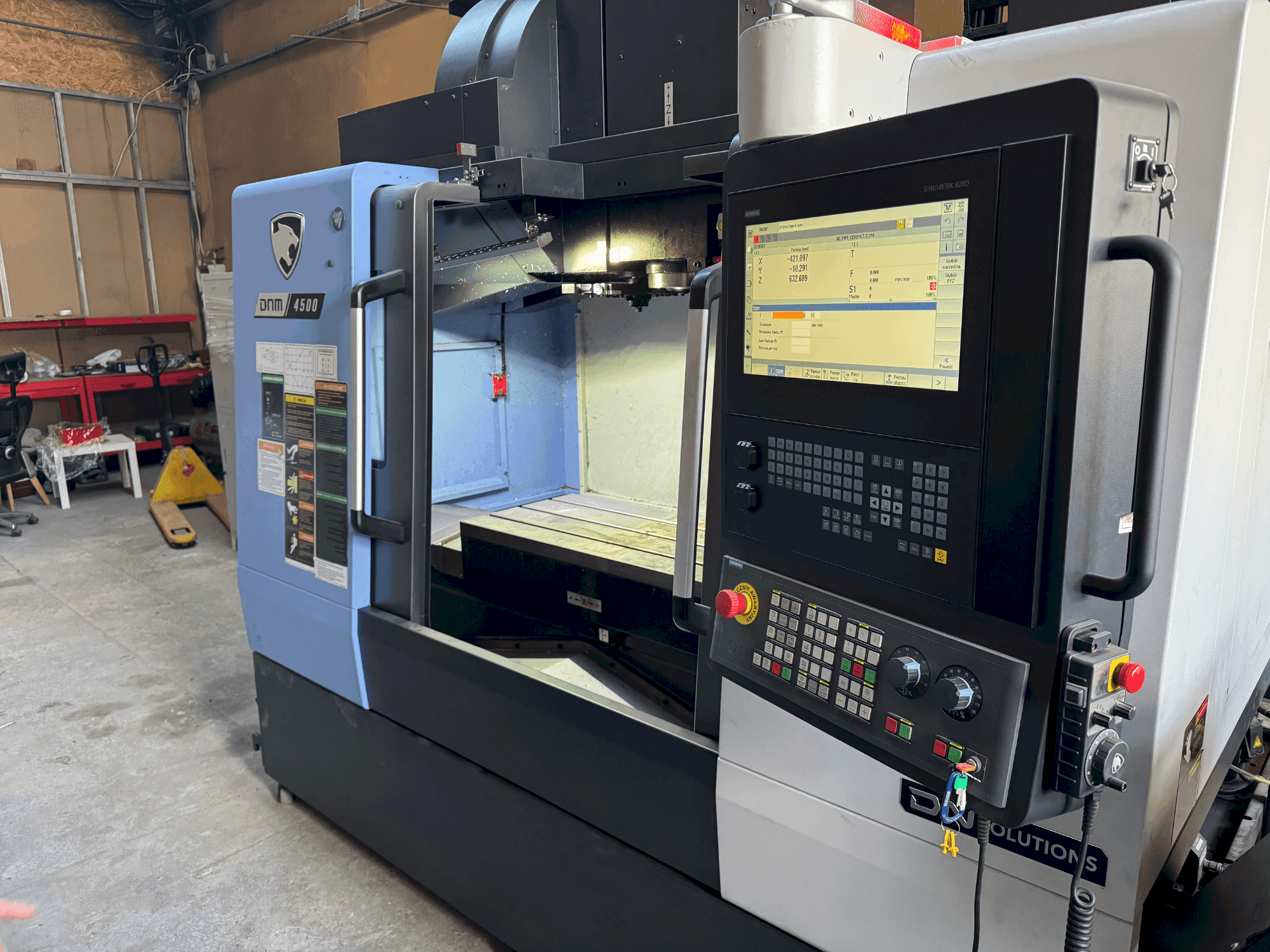

This 3-axis DN SOLUTIONS DNM 4500 vertical machining center was manufactured in 2022. Consider the opportunity to buy this DN SOLUTIONS DNM 4500 vertical machining center. Contact us for more information.

Overview

brand: DN SOLUTIONS
year: 2022
MODEL: DNM 4500
production hours: 83
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DN SOLUTIONS DNM 4500

Control Unit

Brand: SIEMENS
Model: Sinumerik 828D

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 11/16.5 kW
Tool taper: ISO #40 7/24
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 1000 mm
Outer width: 450 mm
Table load: 600 kg

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80 mm (125 mm if adjacent tool pockets are empty)
Max tool length: 300 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Servo motor power: x & y axes: 1. 8 kw z-axis: 3. 0 kw
- - Maximum spindle torque: 141 nm
- - Transmission type: direct drive
- - Tool change mechanism: arm-type
- - Tool holder type: bt 40
- - Tool-to-tool change time: 1. 2 seconds
- - Chip-to-chip time: 3. 2 seconds
- - Doosan dnm 4500 siemens – shop mill/temperature compensation function/roller linear guides/spindle cooling 20 bar /led work area lighting /3-color signal led lamp
- - Main spindle speed up to 12,000 rpm/ 30-tool magazine, cam type /big plus bt taper
- - Prepared for 4th axis /doosan tool monitoring

Extra information

- Machine still under power // Options included: SIEMENS – Shop Mill/ Chip conveyor/ Temperature compensation function/ Roller linear guides/ Through-spindle cooling, 20 bar LED lighting of the working area/ 3-color LED signal lamp/ Spindle speed up to 12,000 rpm/ Tool magazine for 30 tools, CAM type/ BIG PLUS BT spindle taper/ Prepared for 4th axis/ Doosan Tool Monitoring system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
