➤ Used Datron MLCube B LS For Sale | gindumac.com

Show in original language

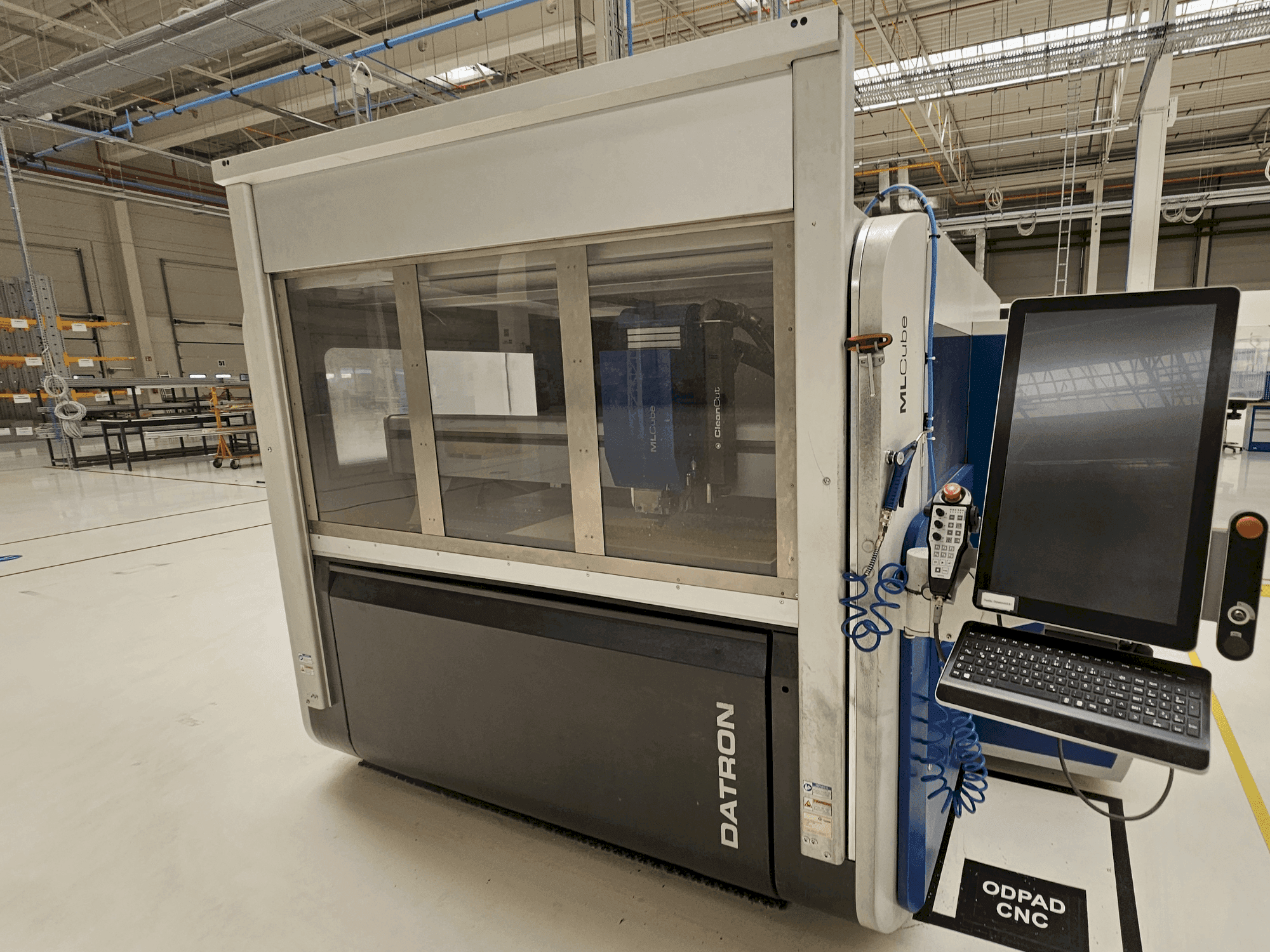

This 3-axis Datron MLCube B LS was manufactured in 2019. It features a robust portal structure, brushless servo drives with absolute encoders, and a high-frequency spindle with speeds up to 60,000 rpm. The tool magazine holds up to 78 tools, enhancing productivity. Ideal for precision machining, it includes a user-friendly DATRON next control system. Contact us for more information about this machine.

Overview

brand: Datron
year: 2019
MODEL: MLCube B LS
production hours: 6768
application type: Milling
Location: Poland
machine type: Vertical Machining Centre

Technical Information - Datron MLCube B LS

General Data

Measurements width: 2280 mm
Measurements depth: 2410 mm
Measurements height: 1950 mm
Machine weight: 2500 kg

Main drive

Spindle speed range: 60000 1/MIN
Spindle motor power: 4.0 kW
Number of axis: 3

Movement

X-AXIS Movement: 1520 mm
Y-AXIS Movement: 1150 mm
Z-AXIS Movement: 245 mm

Additional Equipment

- Aluminum filtration unit
- Options included: Automatic front door / Control DATRON next+ / CNC hand-held control unit 810-2
- DATRON next Camera-Feature / DATRON next - Option package: Universal / HF spindle 4.0 kW, HSK-E25
- Minimum-quantity cooling lubrication / Spray unit, 4 Nozzles / DATRON ToolAssist 143-fold
- DATRON Tool length probe / Clamping set Tribos SVP-2 / Collet HSK-E25 - 12 pieces
- High-precision probe Z TP-R / Vacuum distributor 6-fold Pro/ Vacuum pump, 250 cbm/h / Vacuum plate with meander-formed slots / DATRON CleanCut MLCube

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Brushless servo drives with absolute encoders
- - Ball-screw spindles for each axis
- - Minimum-quantity lubrication system
- - Feed rate: up to 20 m/min
- - Positioning feed: up to 20 m/min
- - Tool magazine capacity: 78 tools // tool changer: hsk-e25
- - Control system: datron next
- - User-friendly hand-held unit
- - With tool hanger: 1020 mm in y
- - Portal passage: 200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
