DMG MORI CLX 450 V4 Lathe

Show in original language

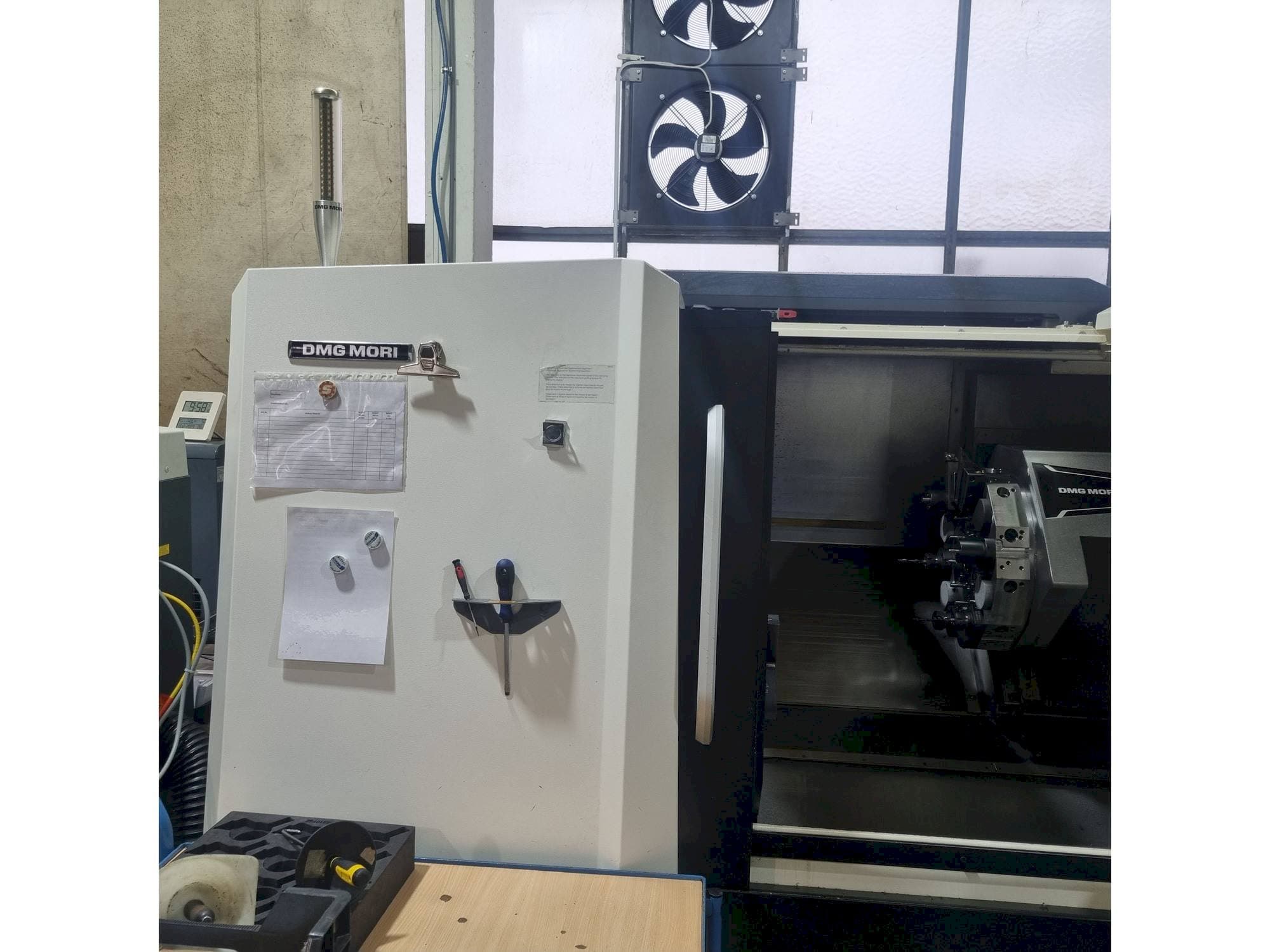

This DMG MORI CLX 450 V4 Lathe was manufactured in the year 2019 in Italy and has 3298 spindle hours. It is equipped with a DMG MORI SLIMline® on Fanuc Touch control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: DMG MORI
year: 2019
MODEL: CLX 450 V4
production hours: 3298
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - DMG MORI CLX 450 V4

General Data

Measurements width: 3000 mm
Measurements depth: 2660 mm
Measurements height: 1940 mm
Machine weight: 6300 kg

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 17-25,5 kW
Number of axis: 2

Tools

Type of tool holder: VDI40

Additional Equipment

- no driven tools included
- Lathe holder
- Collet chuck

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter: 315 mm, circumferential diameter: 650 mm, rotation diameter: 370 mm
- - Rod diameter max: 80 mm
- - Tool drive, c-axis, y-axis, direct path measuring system x-, y-axis
- - Longitudinal travel 830 mm, plane path 271 mm, vertical travel y +/- 60 mm, rapid traverse x 30 m/min, rapid traverse z 30 m/min, rapid traverse y 22. 5 m/min
- - Drive power (100% ed) 17 kw, drive power (40% ed) 25. 5 kw
- - Max. Torque (40% ed) 426 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
