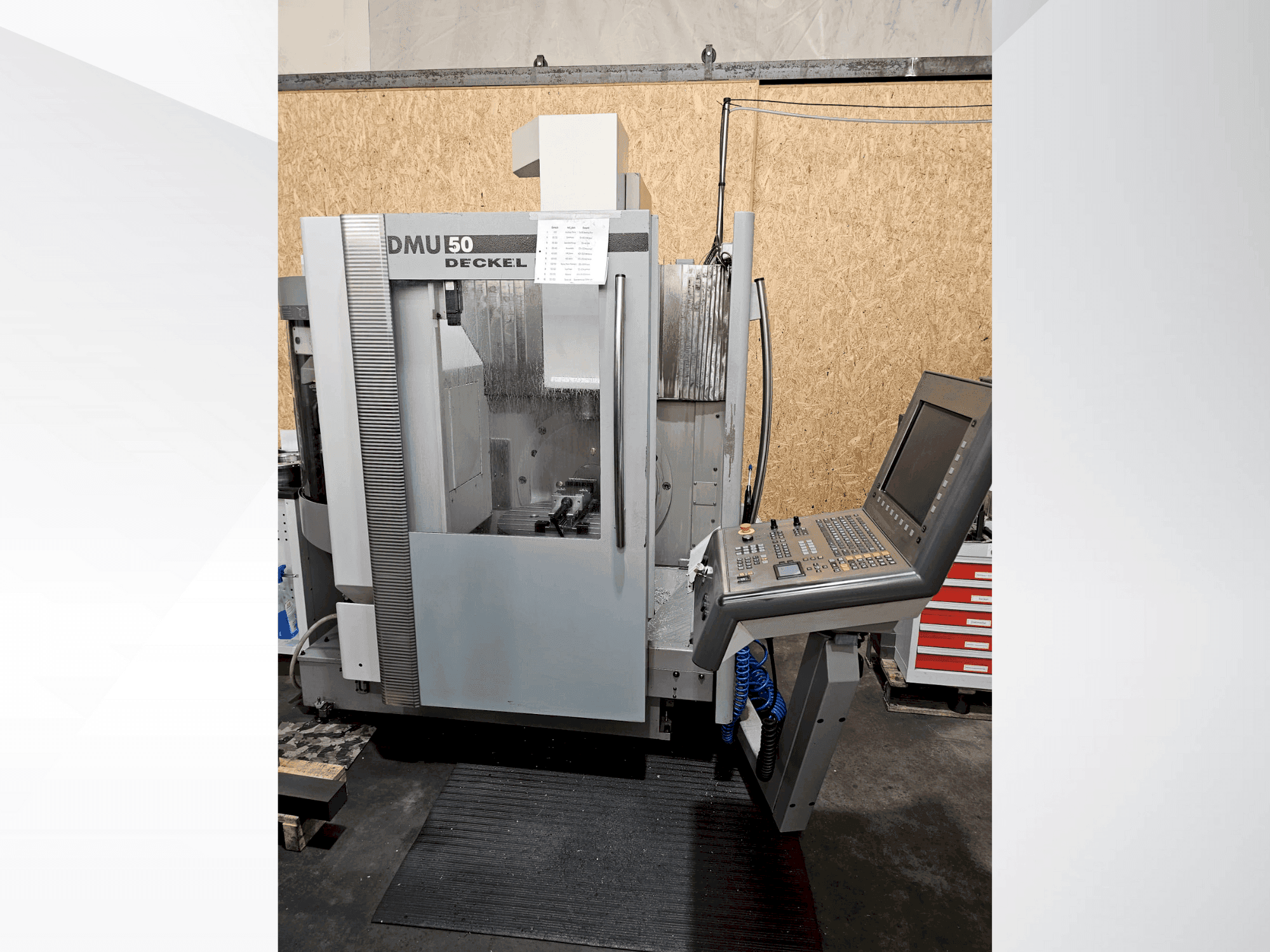

DMG DECKEL MAHO - DMU 50DE-MIL-DMG-2005-00002

Additional Equipment

• - Tool Positions: 16 / Max. Tool Weight: 6 kg / Max. Tool Length: 300 mm
• - Max. Tool Diameter: Without adjacent tools: 130 mm / With adjacent tools: 80 mm
• - Total Power Requirement: 17 kVA
• - No chip conveyor included / No automatic measuring probe included / No tools included

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Torque: 57 / 82 nm / rapid traverse (x/y/z): 12 m/min /feed rate: 10000 mm/min
  • - Table clamping surface: 630 x 500 mm
  • - Swivel range: -5 / +110°
  • - Max. Table load: 200 kg
  • - T-slots: 14 h7 / t-slot spacing: 63 mm
  • - C-axis rotation: +/- 360°
  • - Complete x-axis bearing overhaul including ball screw and bearing assembly. / various hydraulic components overhauled. / tool changer readjusted and sensor system replaced.
  • - New door switch installed. / new discs installed (with some chip debris affecting them). / new coolant pump installed. / new screen installed. / new handwheel hr410 installed.
  • - Machine is 5-axis machine with 3+2 configuration
• Qualitative Machine Benefits:
  • - Low spindle hours and power-on hours.
  • - Never used in series production; operated with care and proper procedures.
  • - Warm-up programs and maintenance routines followed for optimal performance.

Payment Terms

• Payment in advance

• Asset Financing
