Show in original language

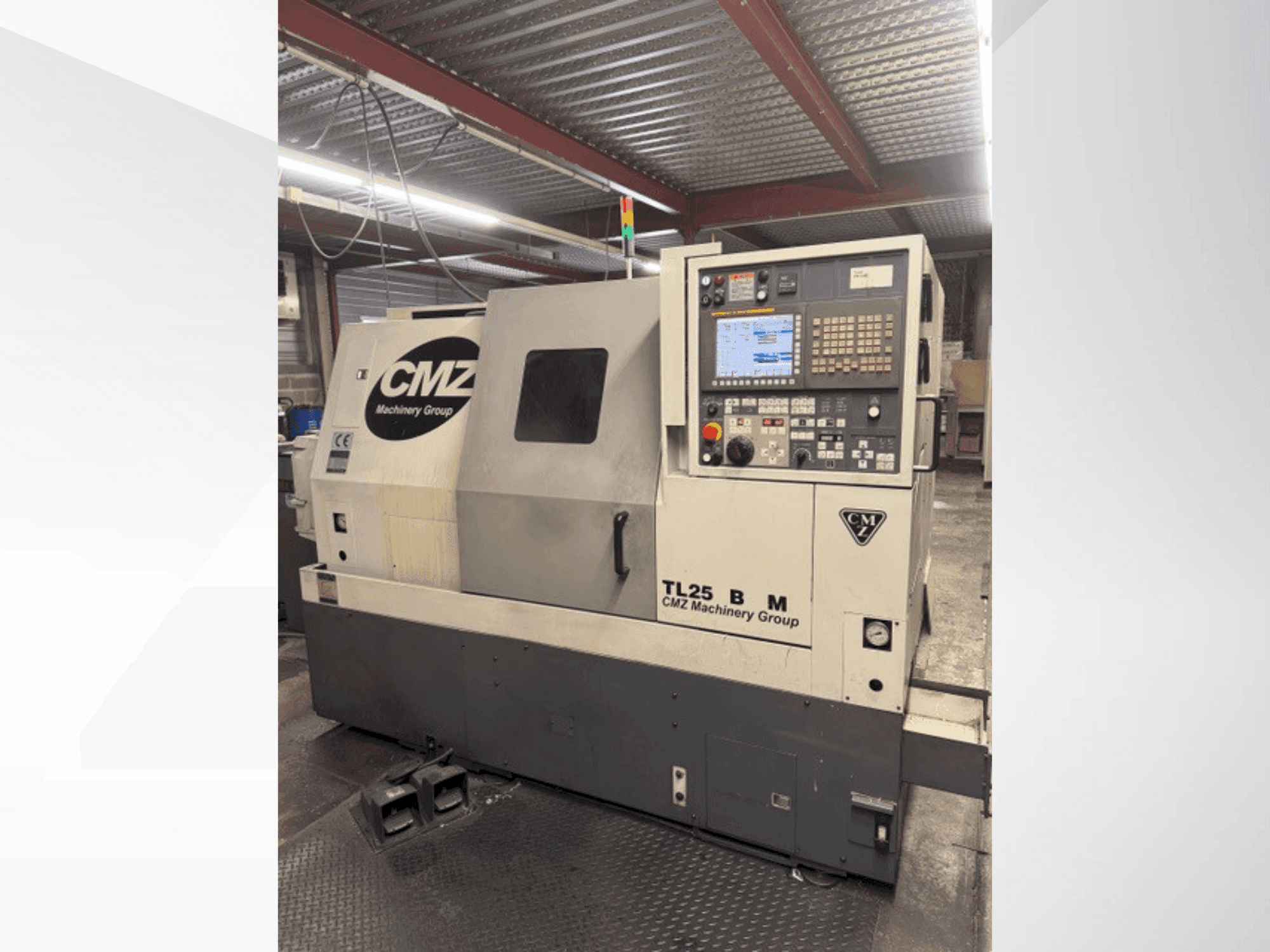

This 3-axis CMZ TL25 BM turn-mill centre was manufactured in 2008. It offers robust turn-milling capabilities, ideal for precision machining. Consider the opportunity to buy this CMZ TL25 BM turn-mill centre. Contact us for more information.
Overview
- brand: CMZ
- year: 2008
- MODEL: TL25 BM
- production hours: 6700
- application type: Turning
- Location: France
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - CMZ TL25 BM
Control Unit
- Brand: FANUC
- Model: 32i
Main drive
- Spindle speed range: 50-3500 1/MIN
- Spindle motor power: 18/25 kW
Movement
- X-AXIS Movement: 240 mm
- Z-AXIS Movement: 640 mm
Additional Information
- Technical Machine Benefits:
- - Diameter admitted on bench: 685 mm
- - Diameter on carriage: 510 mm
- - Max. Machinable diameter: 400 mm
- - Distance between centers: 675 mm
- - Bar passage: Ø 77 mm
- - Turret: 12 positions
- - 12 motorized stations
- - Motorized tool rotation speed: 4000 rpm
- - Power of motorized tools: 3. 8/5 kw
- - Number of motorized tool holders: 3
- Qualitative Machine Benefits:
- - Hydraulic chuck: Ø 250 mm smw autoblok
- - Collet chuck and collet sets
- - Machine has produced only plastic
- - Documentation included
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
