bielomatik K3216 Vibration welding machine for plastic

Show in original language

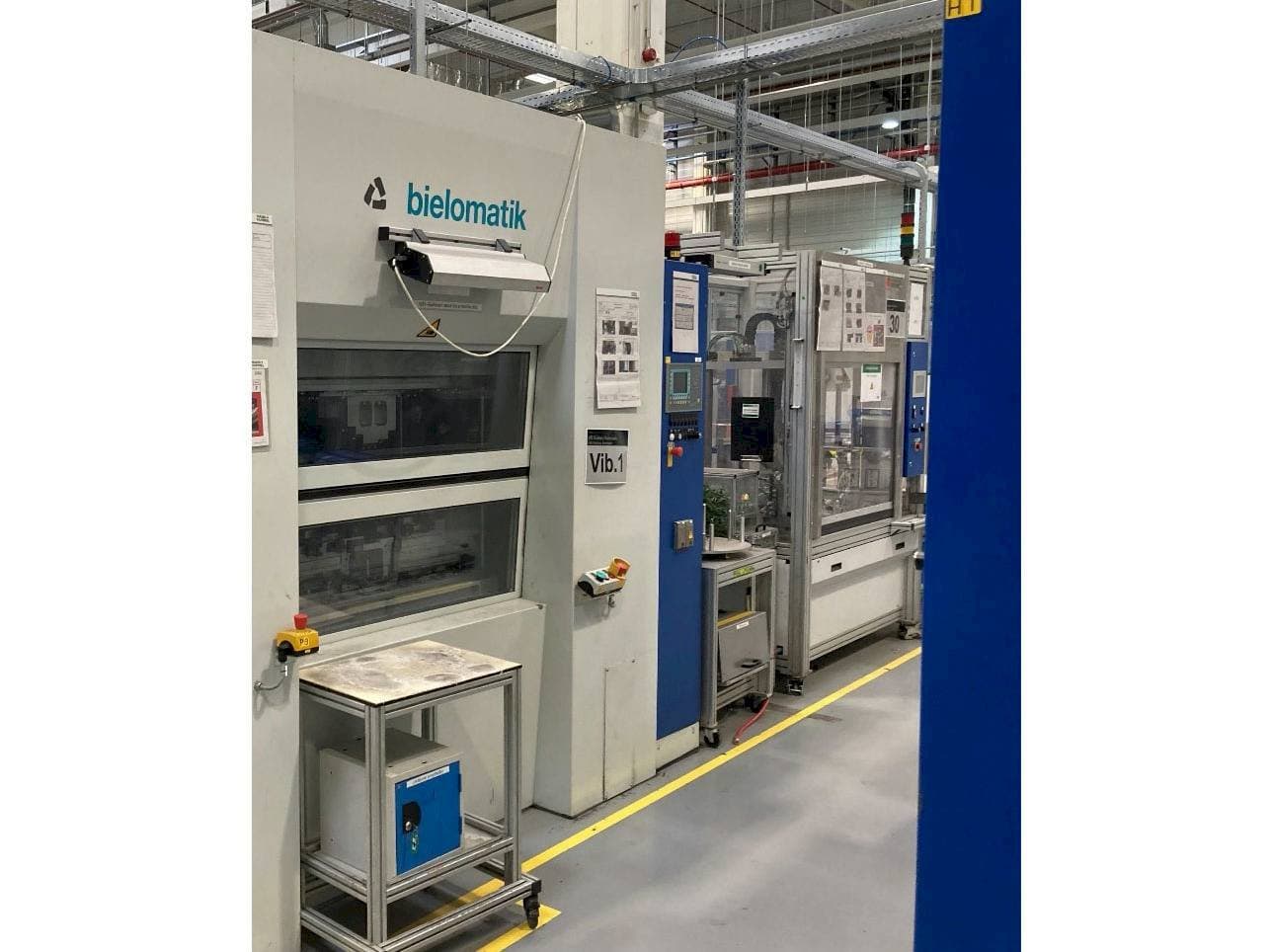

This bielomatik K3216 Vibration welding machine for plastic was manufactured in the year 2014 in Germany. It is equipped with a Siemens S7 with an OP277 control unit.

Overview

brand: bielomatik
year: 2014
MODEL: K3216
application type: Cutting
Location: Germany
machine type: Tube Cutting Machine
control unit brand: SIEMENS

Technical Information - bielomatik K3216

General Data

Measurements width: 3200 mm
Measurements depth: 1960 mm
Measurements height: 2780 mm
Machine weight: 4500 kg

Control Unit

Model: S7 with OP277
Brand: SIEMENS

Media

Main electronic connection: 400 V
Power consumption: 20 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Upper vibration head size: 1220 x 530 mm
- - Standard upper tooling plate: 1220 x 530 mm
- - Lower machine table size: 1320 x 540 mm
- - Standard lower tooling plate: 1320 x 540 mm
- - Clearance between the table and the head: 770 mm
- - Table stroke: 550 mm
- - Min. Tooling height: 220 mm
- - Clamp force (machine table): 24800 n
- - Drive force vibration drive: 16500 n
- - Frequency - variable, depending on tool weight: 170 - 240 hz
Qualitative Machine Benefits:
- - Amplitude - adjustable: max 1. 3 mm
- - Tooling weight: up to 90 kg
- - Positioning accuracy depth measuring: for machine: +/- 0. 05 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
