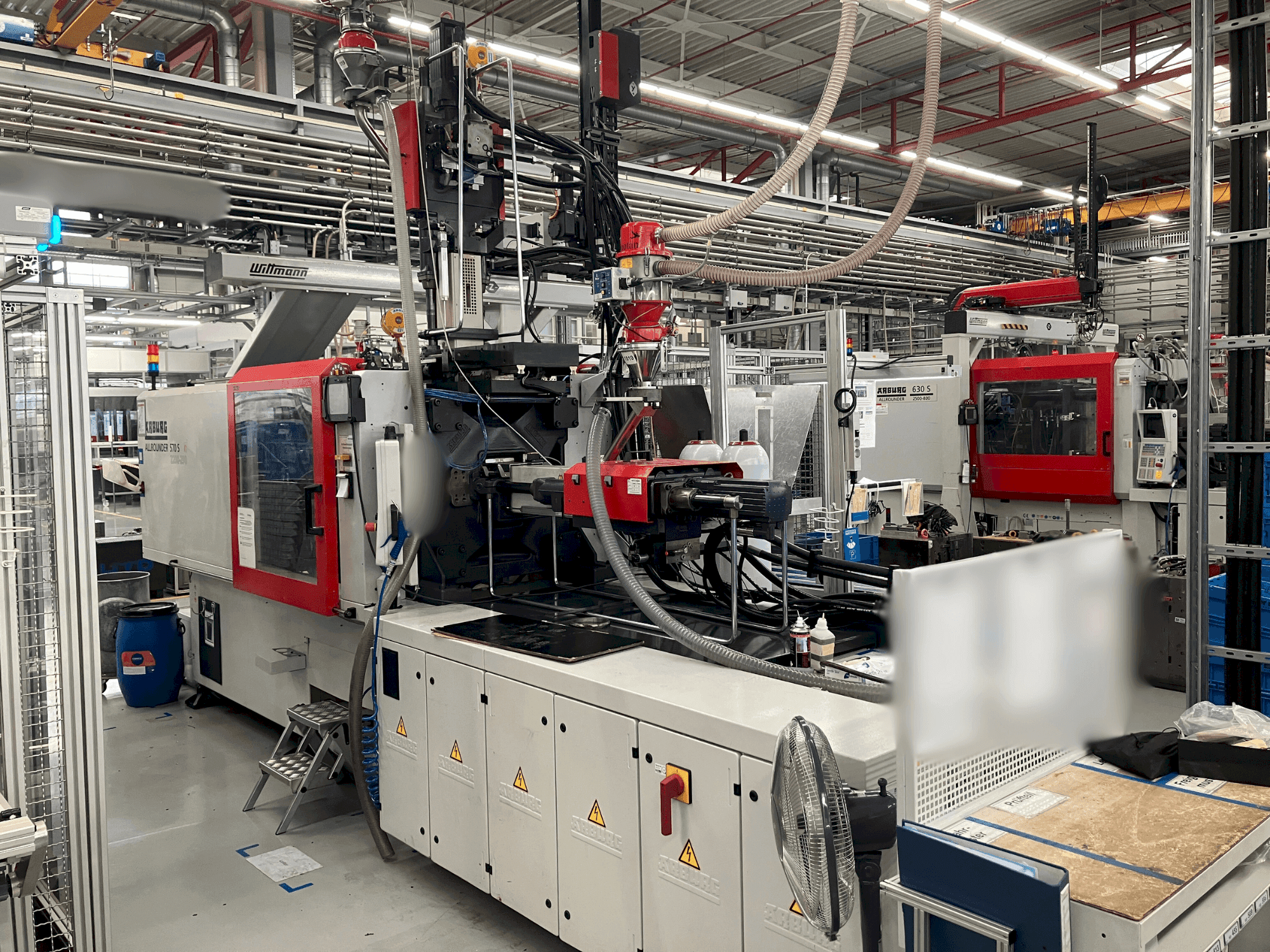

Front view of Arburg Allrounder 570 S 2200-290 / 170 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 570 S 2200-290 / 170

Photo Gallery

Arburg - Allrounder 570 S 2200-290 / 170DE-INJ-ARB-2010-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 570 S 2200-290 / 170 For Sale

Show in original language

This Arburg Allrounder 570 S 2200-290 / 170 was manufactured in 2010. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing tasks. Consider the opportunity to buy this Arburg Allrounder 570 S 2200-290 / 170 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2010
MODEL: Allrounder 570 S 2200-290 / 170
production hours: 0
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 570 S 2200-290 / 170

Injection Unit

Screw diameter: 30 mm
Stroke volume: 106 ccm CM³
Injection pressure: 2500 bar

Clamping unit

Clamping force: 220 kn
Opening stroke: 650 mm
Mould height min: 450 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar distance: 570 mm
- - Tonnage group: 220 to 2000 kn
- - Number of components: 2k
- - Maximum plate distance: 1100 mm
- - Maximum ejector length: 200 mm
- - Coupling diameter: 0 mm
- - Index shaft: diameter: 60 mm distance: 250 mm
- - Center ring diameter: 160 mm
- - Valve gate (number): 4
- - Hk control points number: 18 (3)
Qualitative Machine Benefits:
- - Language options: german, english
- - Aggregate 1: size: 290
- - Aggregate 2: size: 170 screw diameter: 25 mm maximum shot volume: 59 ccm maximum injection pressure: 2500 bar
- - Number of thermolators: 4
- - Thermolator max temperature: 160°c
- - Robot: w732 robot axes: x, y, z, c, b robot vacuum circles nr. : 4 robot gripper circles nr. : 6
- - Cable cross-section: 2x5x70 mm²
- - Water connection details: size: 3/4 inch, number of points: 4
- - Oil filling quantity: 310 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
