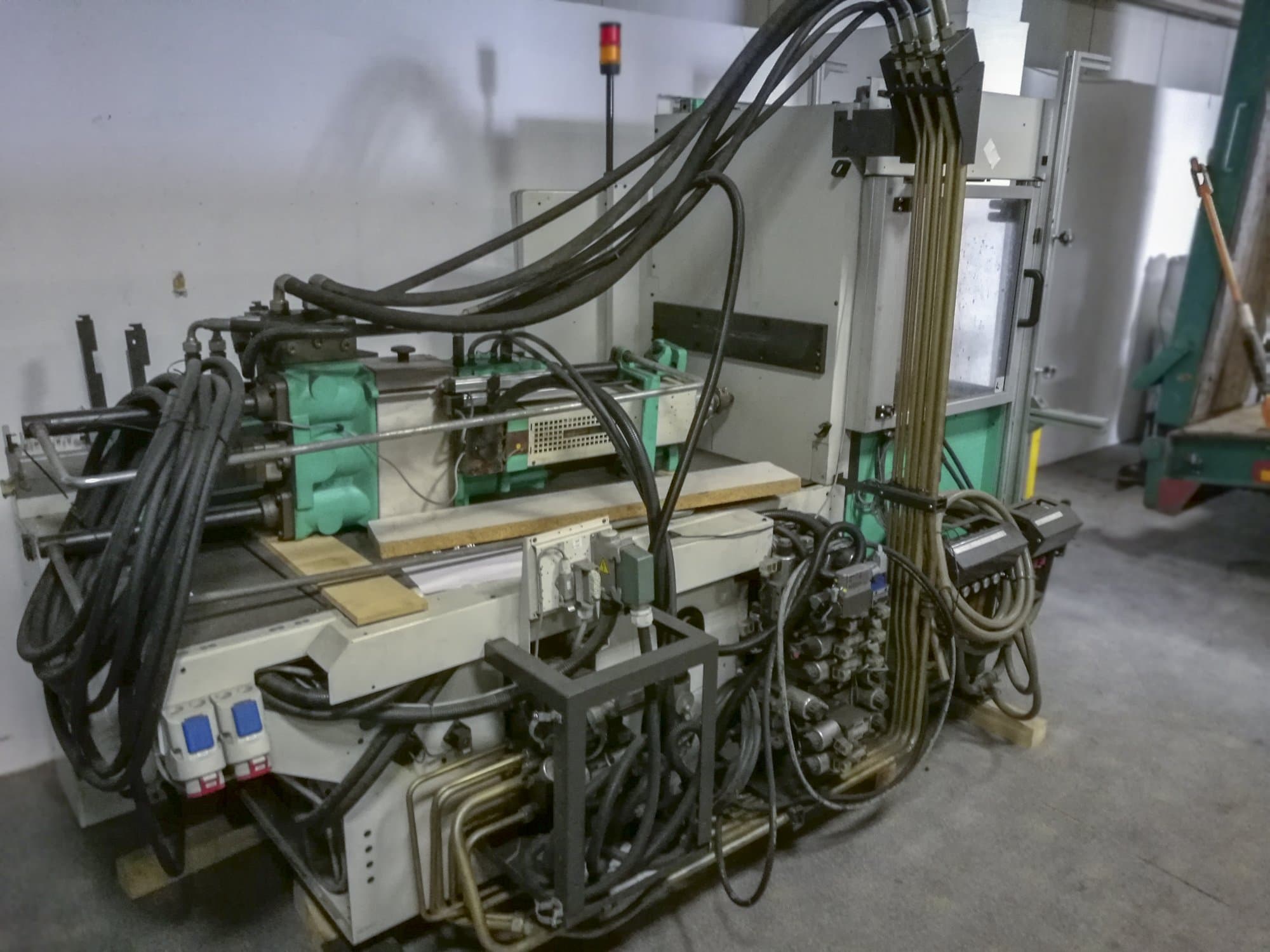

Front view of Arburg 420C 800-250 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 420C 800-250

Photo Gallery

Arburg - 420C 800-250DE-INJ-ARB-2006-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg 420C 800-250 Injection Moulding Machine

Show in original language

This Arburg 420C 800-250 Injection Moulding Machine from 2006 was manufactured in Germany and has a working record of approximately 25000 production hours. With a SELOGICA Control unit, this model stands out due to its core pull cylinder. This machine was already dismantled after admission.

Overview

brand: Arburg
year: 2006
MODEL: 420C 800-250
production hours: 25000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg 420C 800-250

General Data

Measurements width: 4300 mm
Measurements depth: 1635 mm
Measurements height: 1765 mm
Machine weight: 3700 kg

Injection Unit

Screw diameter: 30/35/40 mm
Shot weight: 97/132/172 g/PS
Stroke volume: 106/144/188 cm³
Injection pressure: 2470/1820/1390 bar
Screw speed: 47/57/66 1/min
Nozzle pressure: 60 kN

Clamping unit

Clamping force: 800 kN
Opening stroke: 50 mm
Max open daylight: 500 mm
Distance between bars: 420x420 mm
Size of mold platens: 570x570 mm
Ejector stroke: 175 mm
Ejector force for / back: 40 kN

Media

Main electronic connection: 400 V
Oil tank: 235 L
Oil water separator: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
