- AFM TAE-30N Lathe machine

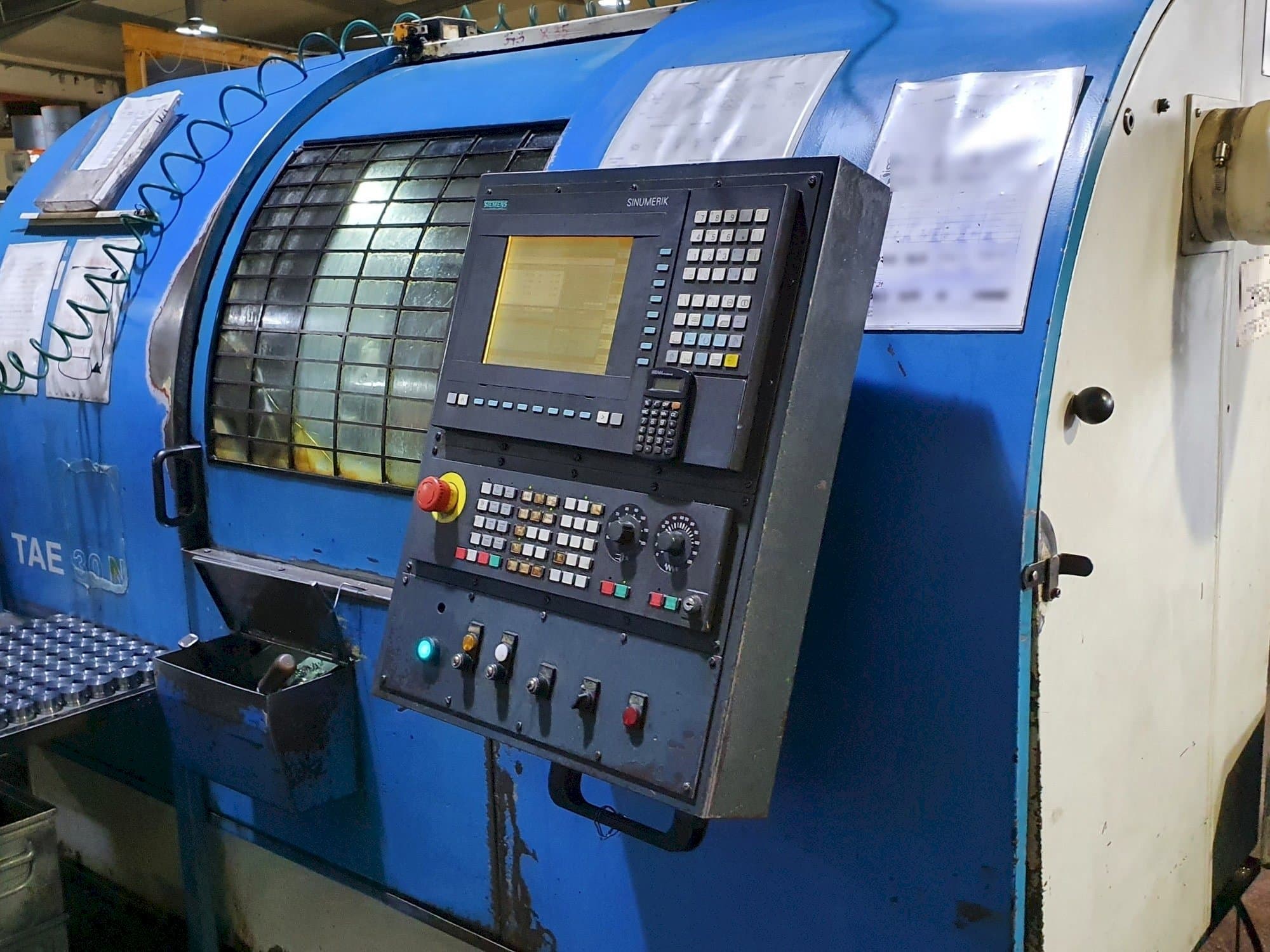

This AFM TAE-30N Lathe machine from Poland was manufactured in 2001. This machine comes with a Siemens SINUMERIK 810D control unit. Also works with a spindle speed between 50-5000 rpm and with a spindle hole diameter of 55 mm. This machine is in good working condition, ready for tests. Full documentation available.
Overview
- brand: AFM
- year: 2001
- MODEL: TAE-30N
- production hours: 0
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - AFM TAE-30N
General Data
- Measurements width: 2555 mm
- Measurements depth: 1815 mm
- Measurements height: 1855 mm
- Machine weight: 4200 kg
Control Unit
- Model: SINUMERIK 810D
- Brand: SIEMENS
Main drive
- Spindle speed range: 50 - 5000 1/MIN
- Spindle motor power: 12kW
Turret
- Number of turrets: 12 pcs
Media
- Main electronic connection: 3x380V / 50 Hz
Additional Information
- Technical Machine Benefits:
- - Over the shields of the bed – 470 mm
- - Over the guides of the cross slide – 330 mm
- - Max. Machining diameter – 200 mm
- - Spindle hole diameter – 55 mm
- - Diameter of the draw tube hole – 90 mm
- - Hole in spindle dia. – 55 mm
- - Max torque on the spindle: 230 nm
- - Quill clamping force – 70-800 dan
- - Tailstock cone – morse 4b
- Qualitative Machine Benefits:
- - Machine in good working condition, ready for tests.
- - Full documentation available
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
