Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
ZPS - MCFV 1060 NTCZ-MIL-ZPS-2002-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ZPS MCFV 1060 NT

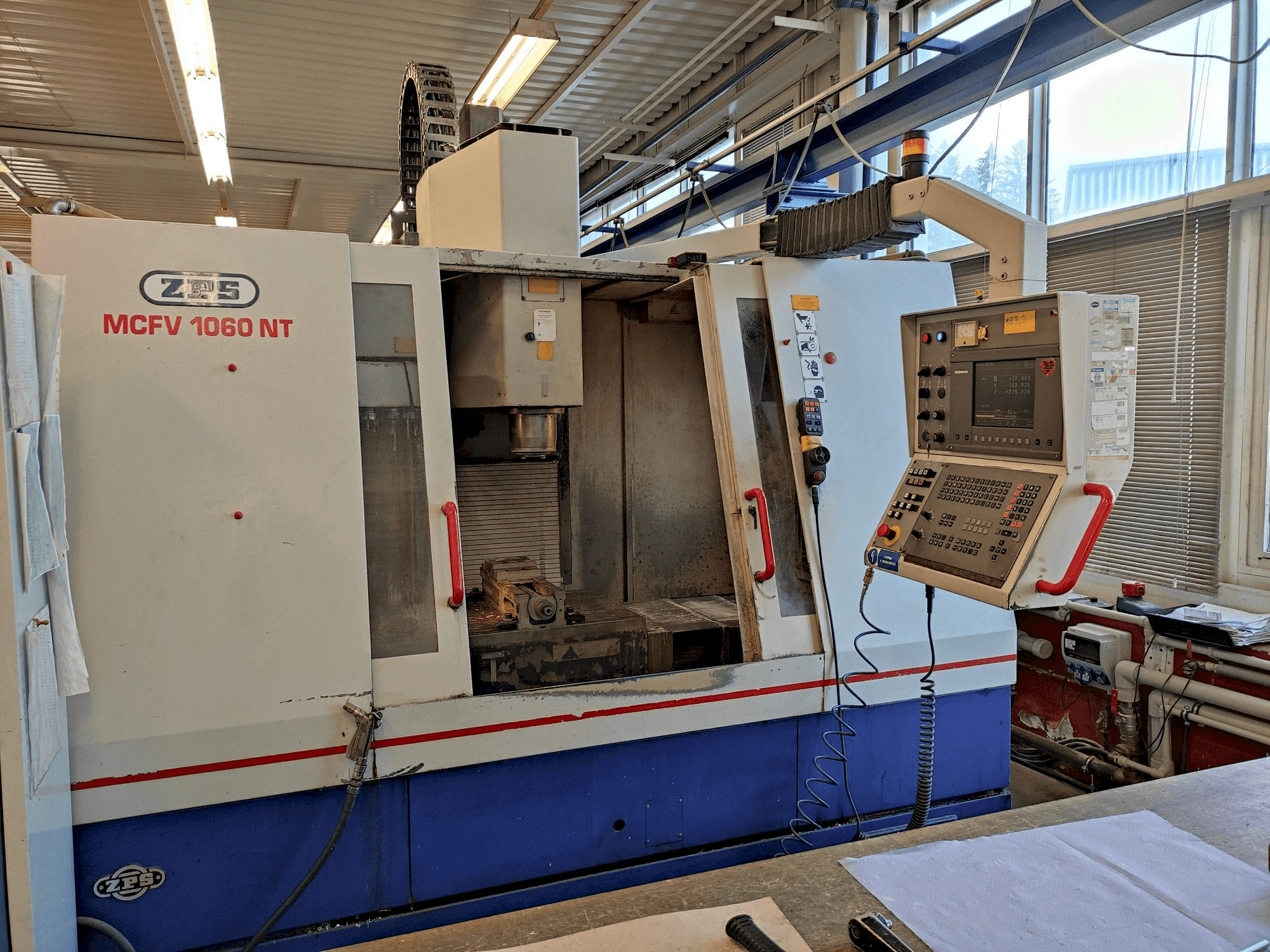

This ZPS MCFV 1060 NT Vertical Machining Center was made in the Czech Republic in the year 2002. This 3 axis machine has a record of 66364 working hours, of which 24797 are programming hours. It is equipped with a HEIDENHAIN iTNC 430 control unit. This machine incorporates a spindle ISO 40 with a speed up to 8000 rpm. A new spindle was installed in the machine in 2012. This machine is in very good condition and has been regularly maintained.
Overview
- brand: ZPS
- year: 2002
- MODEL: MCFV 1060 NT
- production hours: 66364
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - ZPS MCFV 1060 NT
General Data
- Machine weight: 6700 kg
Control Unit
- Model: iTNC 430
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1016 MM
- Y-AXIS Movement: 610 MM
- Z-AXIS Movement: 760 MM
Workpiece
- Workpiece weight: 900 KG
Table
- Outer length: 1270 MM
- Outer width: 590 MM
Tools
- Slots in storage: 24
- Type of tool holder: ISO 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- End product: Mould
- Industries: Mould&die
- Qualitative Machine Benefits:
- - Very good condition, regularly maintained.
- - 2012 - new spindle
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
