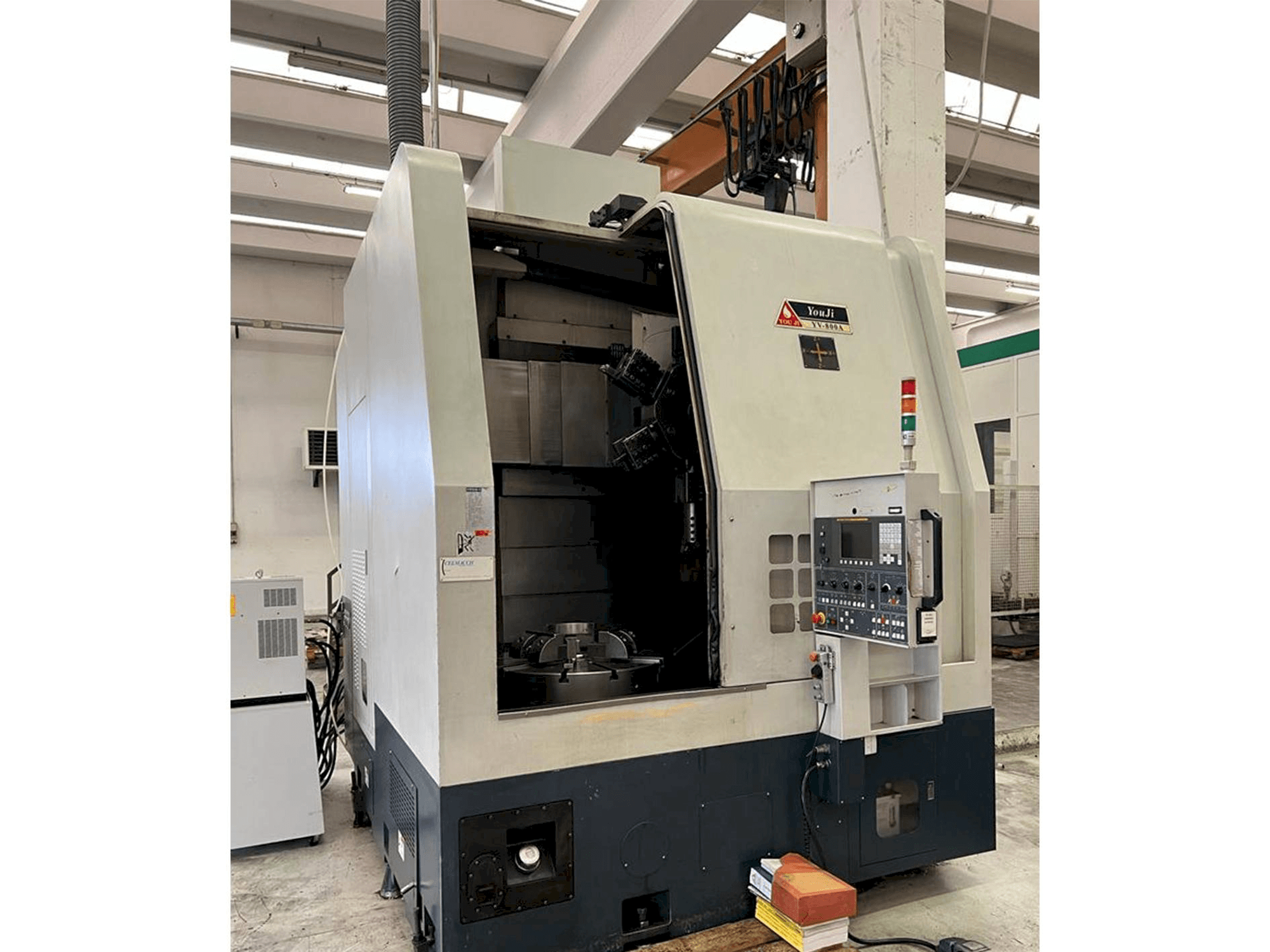

YOU JI YV-800A Vertical Lathe machine

Show in original language

This YOU JI YV-800A Vertical Lathe machine was manufactured in Taiwan in 2008. This 2 axis machine is equipped with a Fanuc 0i-TC control unit. It can work with a spindle speed range of 10 - 8000 rpm. Machine in very good condition.

Overview

brand: YOU JI
year: 2008
MODEL: YV-800A
application type: Turning
Location: Italy
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - YOU JI YV-800A

General Data

Machine weight: 14000 Kg

Control Unit

Model: 0i-TC
Brand: FANUC

Main drive

Spindle speed range: 10 - 8000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: -50/+810 mm
X-AXIS Rapid traverse: 20 mm/min
Y-AXIS Movement: 880 mm
Y-AXIS Rapid traverse: 20 mm/min

Turret

Number of turrets: 6 positions

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing diameter Ø 1. 000 mm
- - Max. Turning diameter Ø 900 mm
- - Max. Turning height 800 mm
- - Spindle nose a2-11

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
