YASDA YBM 1000N

Photo Gallery

YASDA - YBM 1000NIT-MIL-YAS-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

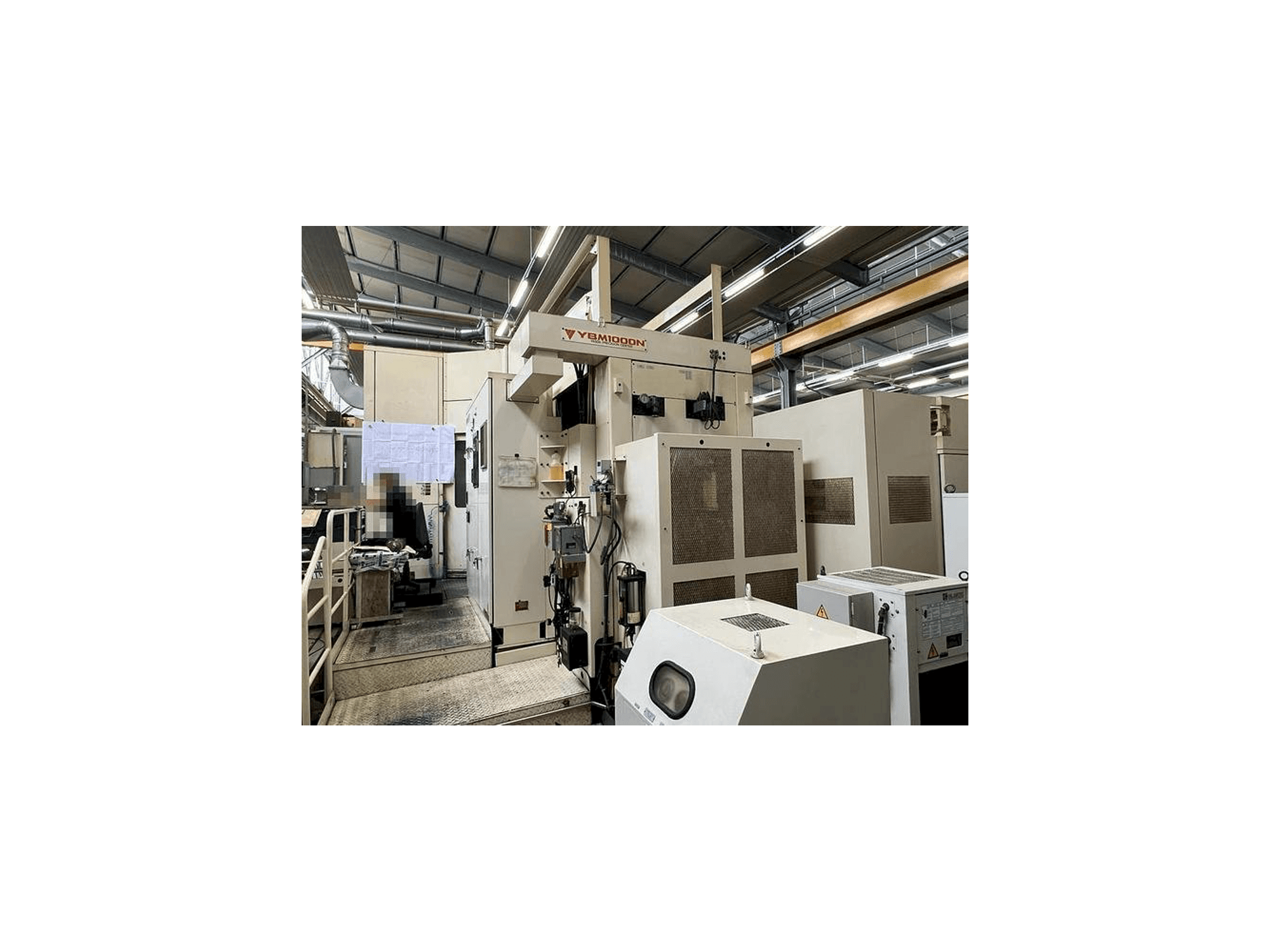

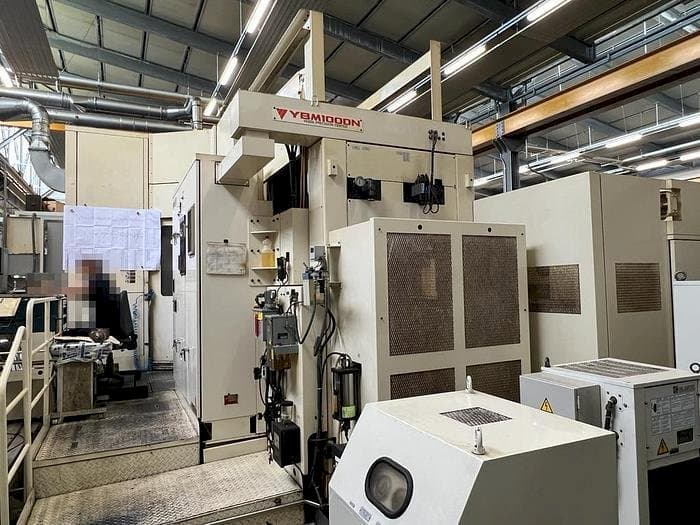

YASDA YBM 1000N Horizontal Machining center

Show in original language

This YASDA YBM 1000N Horizontal Machining center was manufactured in the year 2000. The machine has a spindle speed of 10-15000 rpm.

Overview

brand: YASDA
year: 2000
MODEL: YBM 1000N
production hours: 0
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - YASDA YBM 1000N

Main drive

Number of spindles: 1
Spindle speed range: 50-15000 1/MIN

Movement

X-AXIS Movement: 2100 mm
Y-AXIS Movement: 1400 mm
Z-AXIS Movement: 1700 mm

Tools

Max weight: 20 kg
Max tool diameter: 300 mm
Max tool length: 550 mm
Type of tool holder: BT 50 (7/24 Taper)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tank capacity: 2,7 l
- - Spindle bearing inner diameter: 90 mm
- - Distance from pallet top to spindle center: o mn to 1400 mm
- - Spindle tool holder: mas403 p50t- type retention knob
- - Pump discharge :200 cc/min
- - Tool storage capacity: 240
- - Pallet surface configuration: 1250x1250 mm
- - Weight of pallet :175 mm.
- - Edge locator: 1400 kg
- - Chip conveyor ts type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
