VULCAN VMC 610L

Photo Gallery

VULCAN - VMC 610LIE-MIL-VUL-2020-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

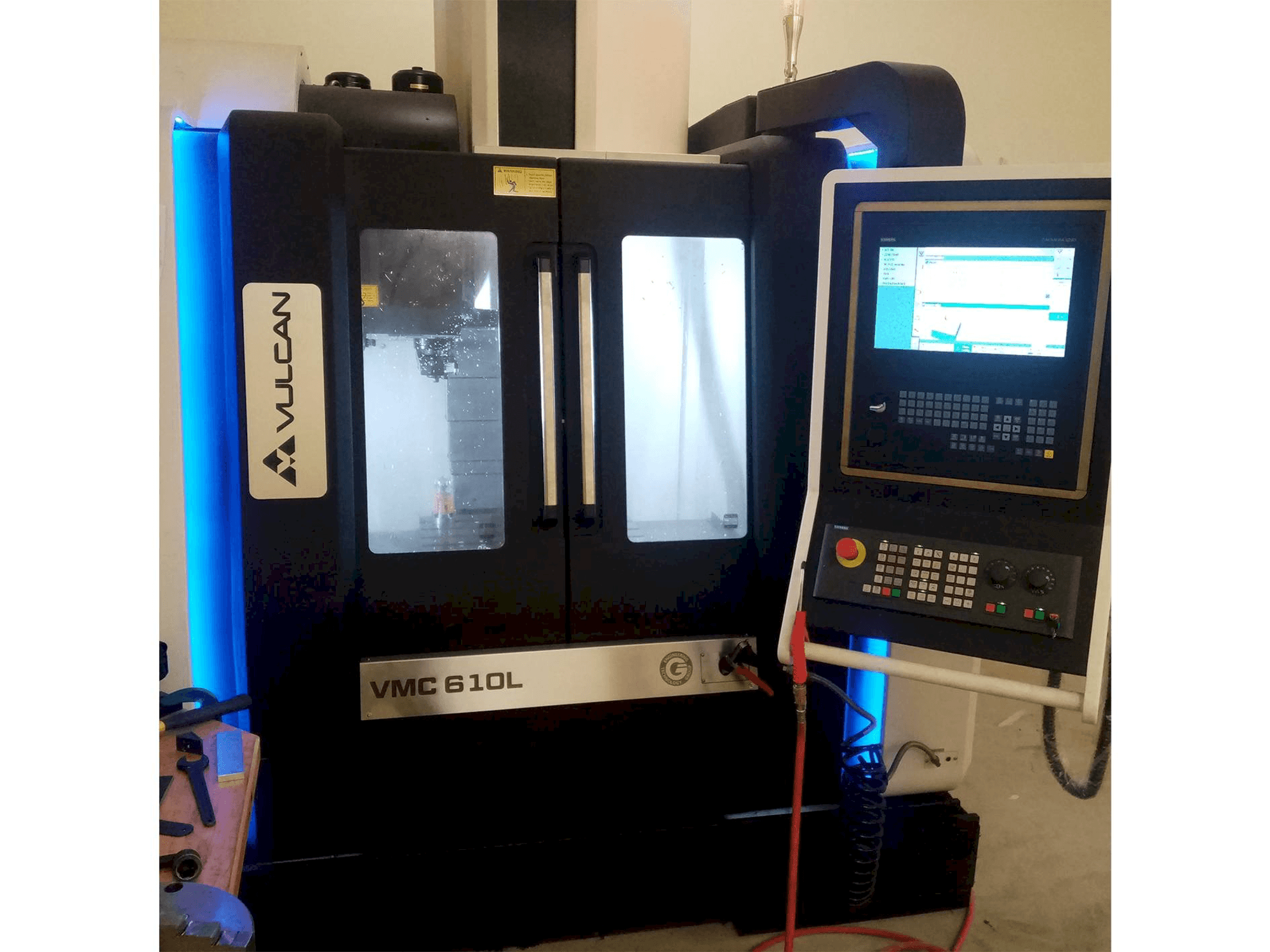

VULCAN VMC 610L Vertical machining center

Show in original language

This VULCAN VMC 610L Vertical machining center was manufactured in the United Kingdom in 2020. It is equipped with a Siemens 828D / Conversational control unit. This 3 axis machine operates with a spindle speed up to 10000 rpm. Includes toolbox and tools, a spindle air blast and lubrication system with alarm.

Overview

brand: VULCAN
year: 2020
MODEL: VMC 610L
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - VULCAN VMC 610L

General Data

Measurements width: 3283 mm
Measurements depth: 1852 mm
Machine weight: 4500 KG

Control Unit

Model: 828D / Conversational
Brand: SIEMENS

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 5.5 / 5.7 kW
Tool taper: No. 40 (big plus)
Number of axis: 3

Movement

X-AXIS Movement: 610 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 32 m/min

Table

Outer length: 650 mm
Outer width: 400 mm
Table load: 400 KG

Tools

Slots in storage: 24 (tool swing arm)
Type of tool holder: BBT

Media

Main electronic connection: 3 x 415V / 50Hz
Power consumption: 30 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

Fully enclosed splash guard
Levelling blocks
Toolbox and tools
Usb interface
Spindle oil chiller (integrated in the machine guarding)
Spindle air blast
Flushing wash system
Mpg hand wheel
20 bar through spindle coolant
Belt type chip conveyor with overflow type coolant tank

Technical Machine Benefits

Spindle centre to column: 130 - 580 mm
T-slots (no. X width x pitch): 4 x 18 x 75 mm
Belt spindle
Tool selection: bi-directional
Coolant tank capacity: 256 l
Compressed air req. (min. ): 5. 5 - 6. 5 kg/cm²
Shop mill conversational programming
Heat exchanger
Lubrication system with alarm
Led worklamps x 2 set

Extra Information

-Air and coolant gun -Built in coolant nozzles

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
