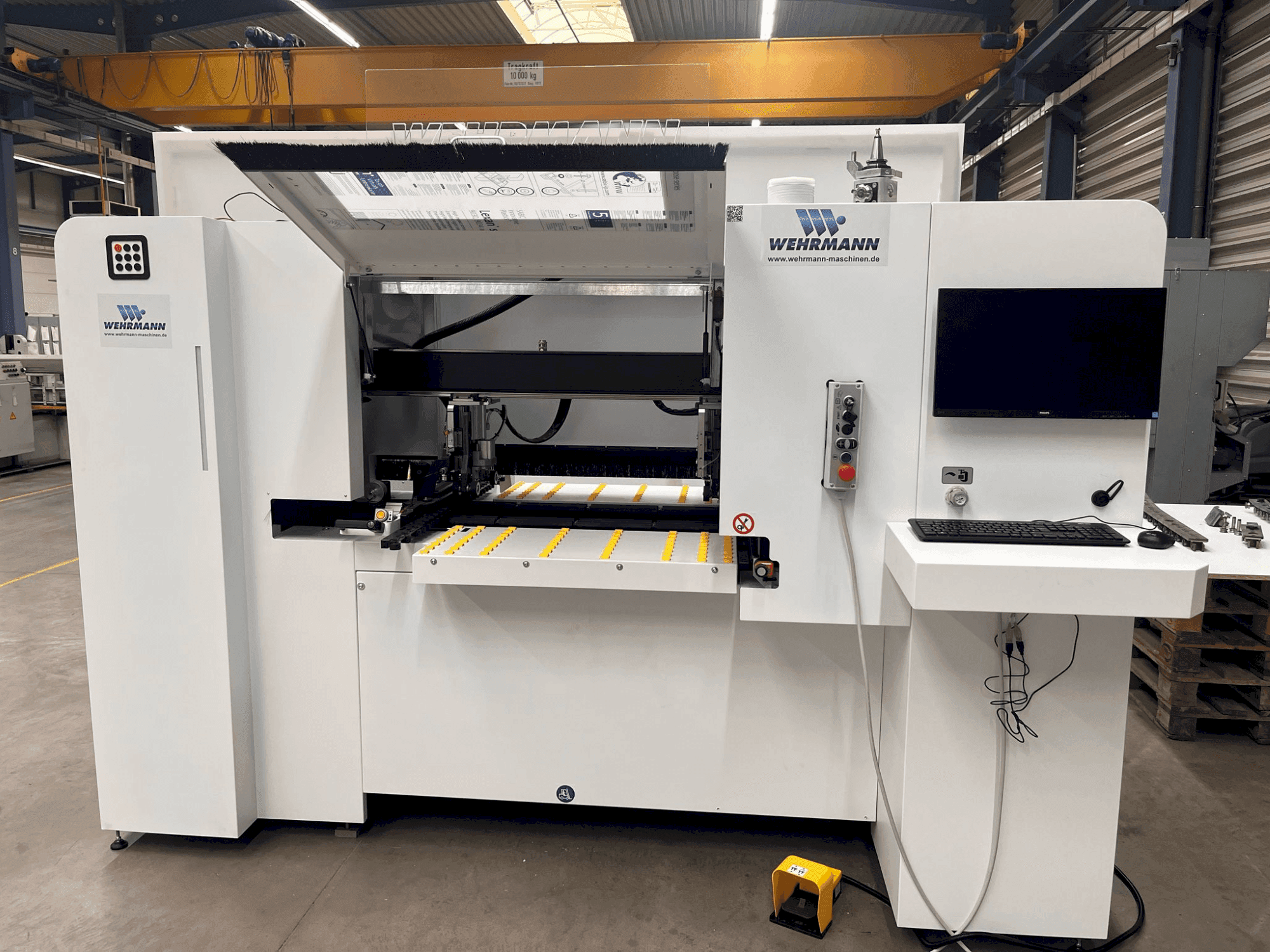

VITAP - K3DE-CNC-VIT-2023-00001

Additional Equipment

• - 20" LCD TFT monitor
• - Industrial PC
• - WSC user interface with Lister, parametric tools, and parametric setup
• - Graphical CAD programming TPA EDI32, basic version
• - USB port
• - Storage of all files
• - Macro programming
• - Import of DXF files
• - CE compliant

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Feed speed: 25 m/min
  • - Automatic 4-position tool changer
  • - Max. Horizontal tool Ø: 12 mm
  • - Max. Vertical tool Ø: 35 mm
  • - Motor: 1. 7 kw
  • - Number of independent vertical spindles: 12 // number of independent horizontal spindles on the x-axis: (2+2)
  • - Max. Horizontal drilling depth on x and y axes: 35 mm // max. Vertical drilling depth: 43 mm // number of horizontal drilling spindles on the y-axis: (2+2)
  • - Electro spindle: 5 kw with iso30 taper (rpm 12000–24000)
  • - Max. Workpiece dimensions: y 1250 mm, z 50 mm
  • - Min. Workpiece dimensions: x 270 mm, y 150 mm, z 3 mm
• Qualitative Machine Benefits:
  • - A showroom machine never used

Payment Terms

• Payment in advance

• Asset Financing
