UNITECH HSM 1000

Photo Gallery

UNITECH - HSM 1000DE-MIL-UNI-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

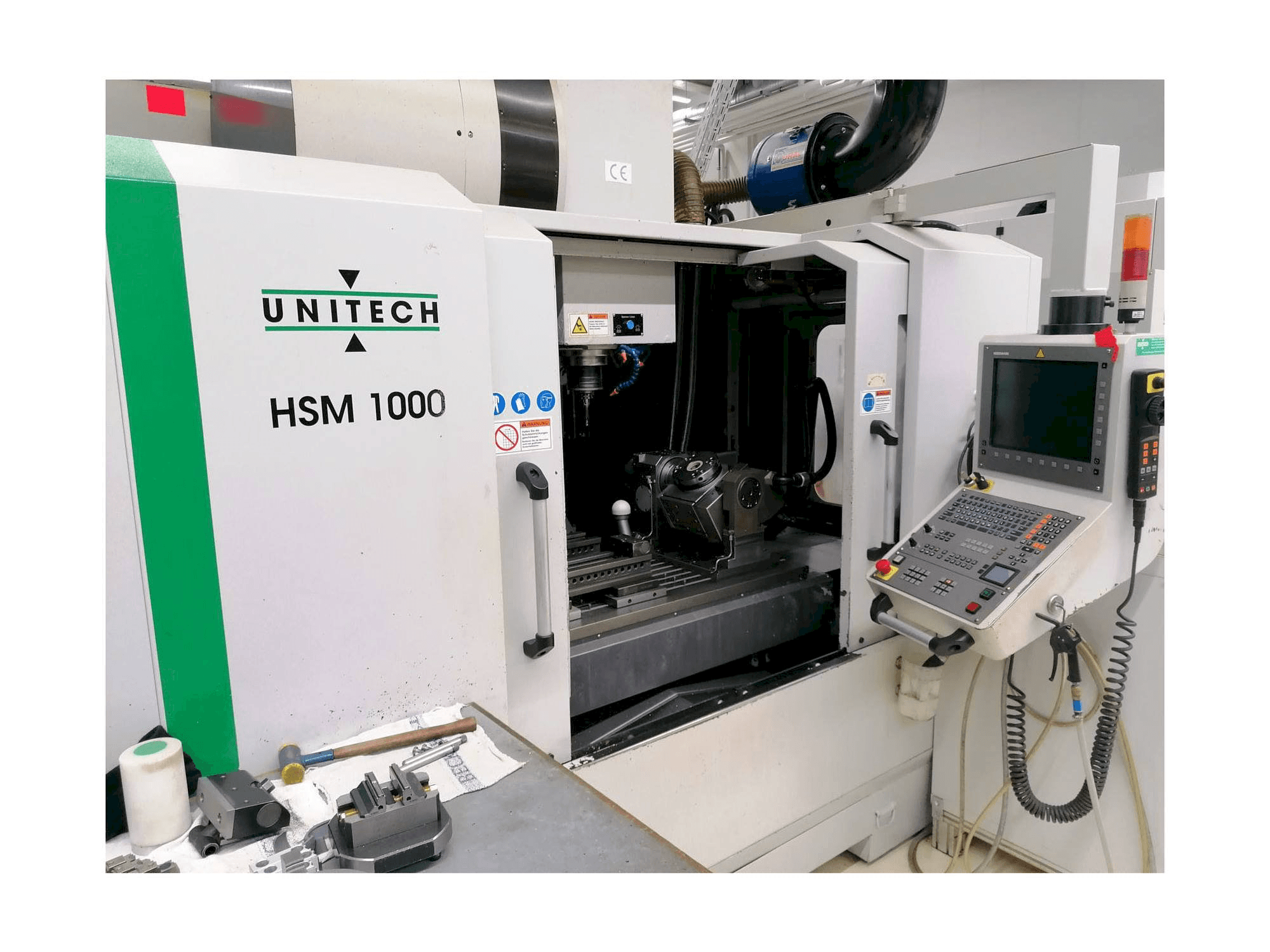

Unitech HSM1000 Vertical Machining center

Show in original language

This Unitech HSM 1000 Vertical Machining center was manufactured in the year 2009 and has 43243 production hours. It is equipped with a Heidenhain iTNC 530 control unit. The machine has a spindle speed of 18000 rpm.

Overview

brand: UNITECH
year: 2009
MODEL: HSM 1000
production hours: 43243
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - UNITECH HSM 1000

General Data

Measurements width: 3135 mm
Measurements depth: 3960 mm
Measurements height: 2740 mm
Machine weight: 7000 Kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Tool taper: Sk30

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 610 mm
B-AXIS Movement: +110° -30° MM
C-AXIS Movement: 360° MM

Table

Outer length: 1200 mm
Outer width: 610 mm
Table load: 850 Kg

Tools

Slots in storage: 24
Max weight: 7 Kg
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose to table: 110 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
