UNION - TC130/1 -iTNC530PL-MIL-UNI-2005-00002
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- This Union TC130/1 -iTNC530 Milling Machine
Show in original language

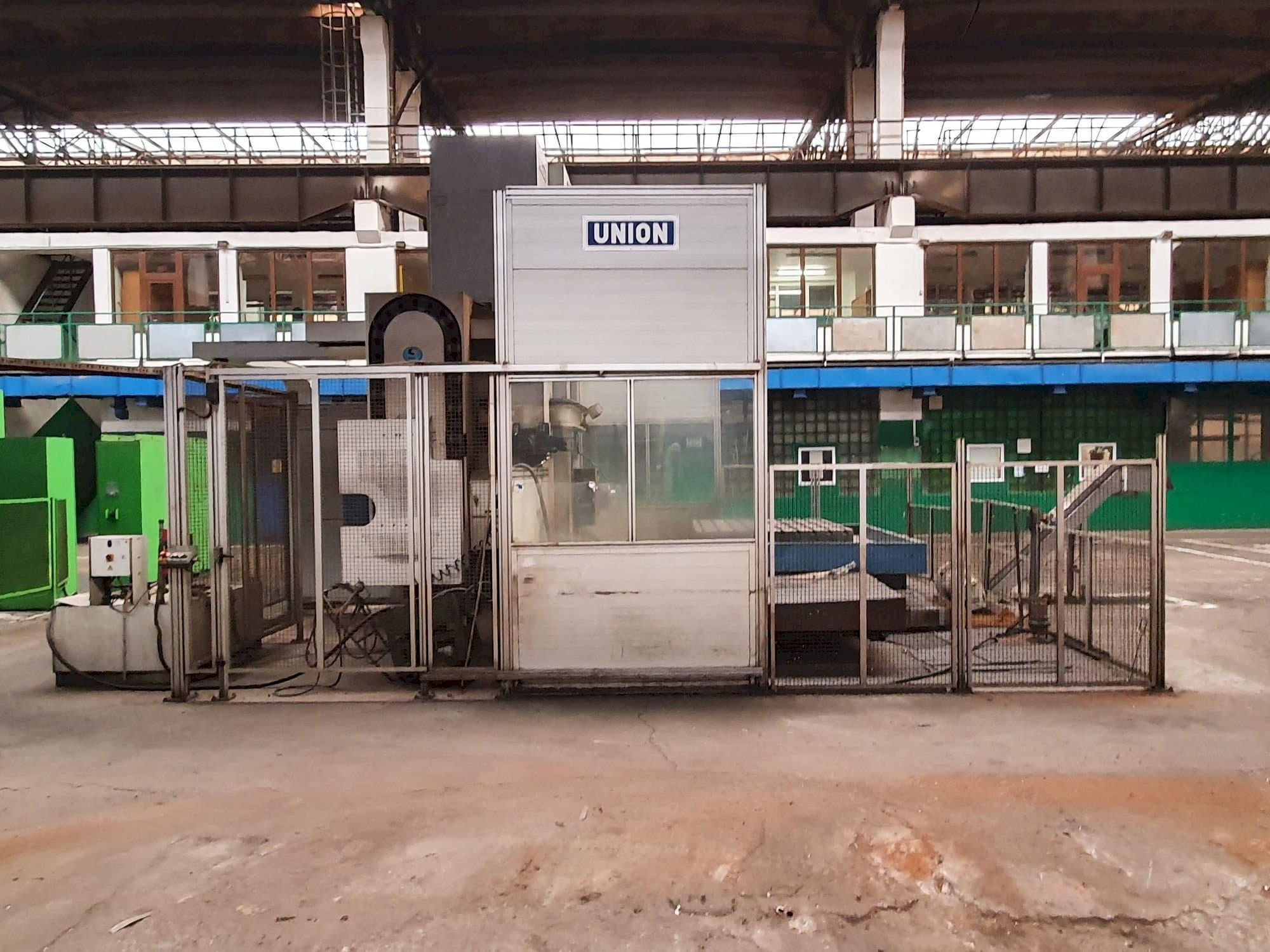

This Union TC130/1 -iTNC530 Milling Machine was manufactured in 2005. It has a spindle speed up to 3000 rpm. This 5 axis machine operates through a HEIDENHAIN TNC 500 Series control unit. This machine is in very good, working condition. It has full service and operating documentation available. The machine comes from a plant that has been closed.
Overview
- brand: UNION
- year: 2005
- MODEL: TC130/1 -iTNC530
- application type: Milling
- Location: Poland
- machine type: Gantry Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - UNION TC130/1 -iTNC530
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 500 Series
Dimensions
- Machine Depth: 10500 mm
- Machine Height: 5800 mm
- Table Length: 1600 mm
- Table Load: 10000 kg
- Table Width: 2000 mm
Movement
- X-axis Travel: 2500 mm
- Y-axis Travel: 2500 mm
- Z-axis Travel: 1500 mm
Technical Specification
- Spindle Speed: 3000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Max tool length: 500 mm
- Machine in very good, working condition.
- Full service and operating documentation available
- The machine comes from a plant that has been closed
Technical Machine Benefits
- W axis travel: 750 mm
- B axis travel: 360 degrees
- Travel speed y/w: 1 - 6. 000 mm/min
- Max. Travel speed y/w/z/x: 15 m/min
- Milling head: emena v4
- Spindle dim. : 130 mm
- Spindle taper: iso 50
- Tool magazine: 40 pcs
- Max tool dim. 125mm / 250 mm
- Max tool weight: 30 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
