Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
UNION - TC 110DE-BOR-UNI-2002-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Union TC 110 - 2002 - Milling machine For sale

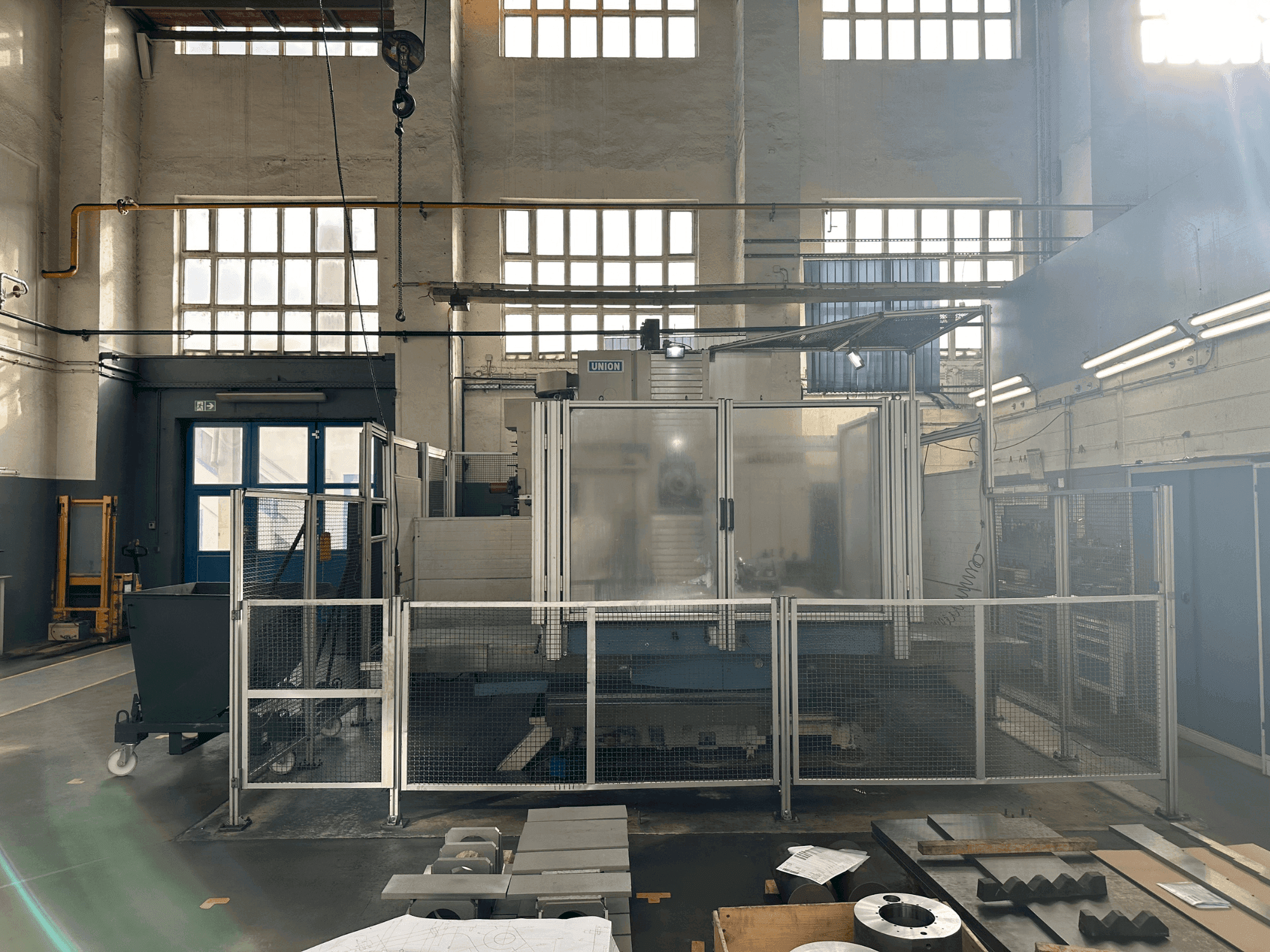

This 3-Axis Union TC 110 milling machine, crafted in 2002, is adeptly controlled by a Heidenhain TNC 426 system. It comes with a SIDEPALSA 40-fold tool changer and an SK50 tool holder. The table dimensions are 1250 x 1600mm, and it features movement in X, Y, Z, and W axes measuring 2000mm, 1600mm, 1500mm, and 550mm, respectively. Its spindle supports a diameter of 110mm, enhancing the precision with a nominal torque of 1639 Nm and speeds ranging up to 4000 min^-1. For more information about this Union TC 110 milling machine, reach out to us.
Overview
- brand: UNION
- year: 2002
- MODEL: TC 110
- application type: Other Machine Tools
- Location: Germany
- machine type: Boring Machine (Metal)
- control unit brand: HEIDENHAIN
Technical Information - UNION TC 110
General Data
- Measurements width: 5150 mm
- Measurements depth: 8600 mm
- Measurements height: 5150 mm
Control Unit
- Model: TNC 426
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 2
- Spindle speed range: 4000 1/MIN
- Tool taper: SK50
- Number of axis: 3
Movement
- X-AXIS Movement: 2000 mm
- X-AXIS Rapid traverse: 15m/min
- Y-AXIS Movement: 1600 mm
- Y-AXIS Feed Force: 16kN
- Y-AXIS Rapid traverse: 15m/min
- Z-AXIS Movement: 1500 mm
- Z-AXIS Feed Force: 20kN
- Z-AXIS Rapid traverse: 15m/min
- W-Axis Movement: 550 mm
Tools
- Number of index: 40
- Type of tool holder: SK50
Additional Information
Additional equipment
- Tool changer SIDEPALSA 40-fold
- Control on 79431 hrs // Machine on 76080 hrs // Program run 27696 hrs
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
